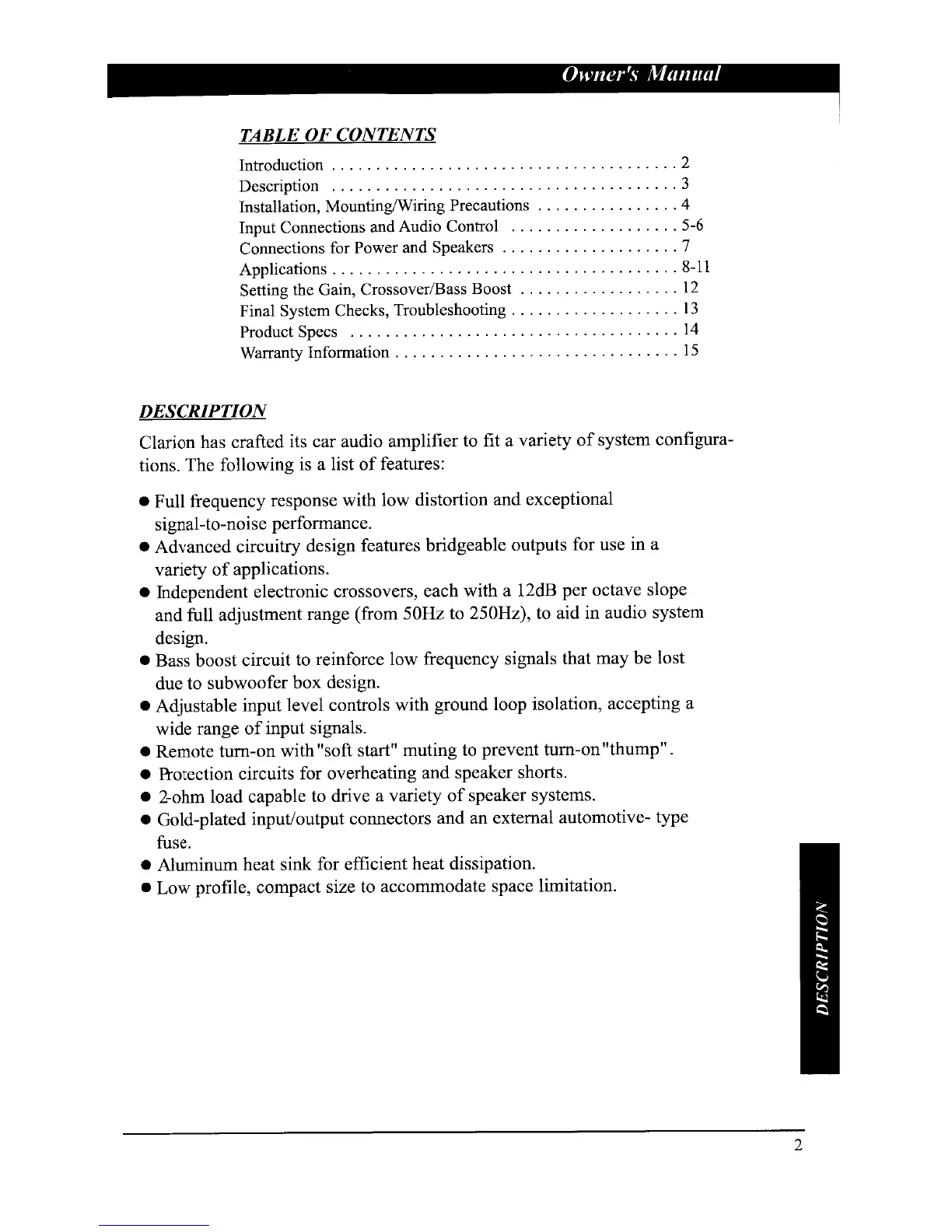

Otvner's Manllal
TABLE
OF
CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . 2
Description 3
Installation, MountinglWiring Precautions 4
Input Connections and Audio Control 5-6
Connections for Power and Speakers 7
Applications
8-11
Setting the Gain, Crossover/Bass Boost
12
Final System Checks, Troubleshooting
13
Product Specs
14
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
DESCRIPTION
Clarion has crafted its car audio amplifier to fit a variety
of
system configura-
tions. The following
is
a list
of
features:
• Full frequency response with low distortion and exceptional
signal-to-noise perfonnance.
• Advanced circuitry design features bridgeable outputs for use in a
variety
of
applications.
• lndependent electronic crossovers, each with a 12dB per octave slope
and full adjustment range (from 50Hz to 250Hz), to aid in audio system
design.
• Bass boost circuit
to
reinforce low frequency signals that may be lost
due
to
subwoofer box design.
• Adjustable input level controls with ground loop isolation, accepting a
wide range
of
input signals.
• Remote tum-on with"soft start" muting
to
prevent tum-on"thump".
• Itotection circuits for overheating and speaker shorts.
• 2-ohm load capable to drive a variety
of
speaker systems.
• Gold-plated input/output connectors and an external automotive- type
fuse.
• Aluminum heat sink for efficient heat dissipation.
• Low profile, compact size to accommodate space limitation.
