à la consommation en courant de l'amplificateur. Ajouter un fusible externe
protège le circuit électrique d'un court-circuit pourrait causer un incendie.
Ne pas ouvrir le châssis. Il n'y a aucune pièce réparable par l'utilisateur à
l'intérieur. Si vous avez besoin d'assistance, contactez votre revendeur agréé
Clarion ou un centre de SAV agréé Clarion.

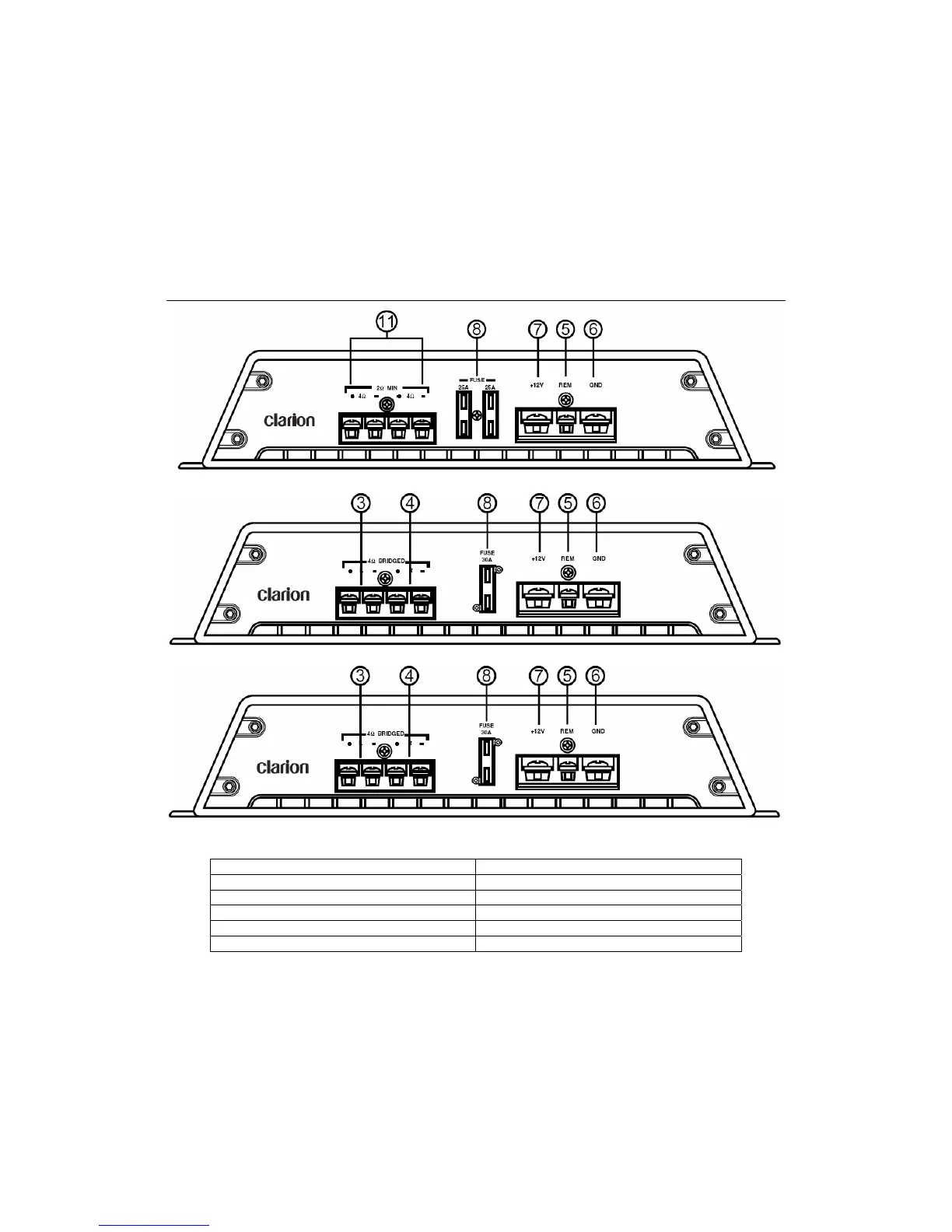

Raccordement du courant et fils haut-parleur
APX1301E raccordement électrique et fils haut-parleur
APX2121E raccordement électrique et fils haut-parleur
APX4241E raccordement électrique et fils haut-parleur
1. Sortie haut-parleur avant gauche 6. Entrée mise à la terre
2. Sortie haut-parleur avant droit 7. Entrée +12V batterie
3. Sortie haut-parleur gauche 8. Fusible
4. Sortie haut-parleur droit 9. Sortie haut-parleur arrière gauche
5. Entrée mise en fonction 10. Sortie haut-parleur arrière droit
5. Entrée mise en fonction 11. Sortie haut-parleur mono
