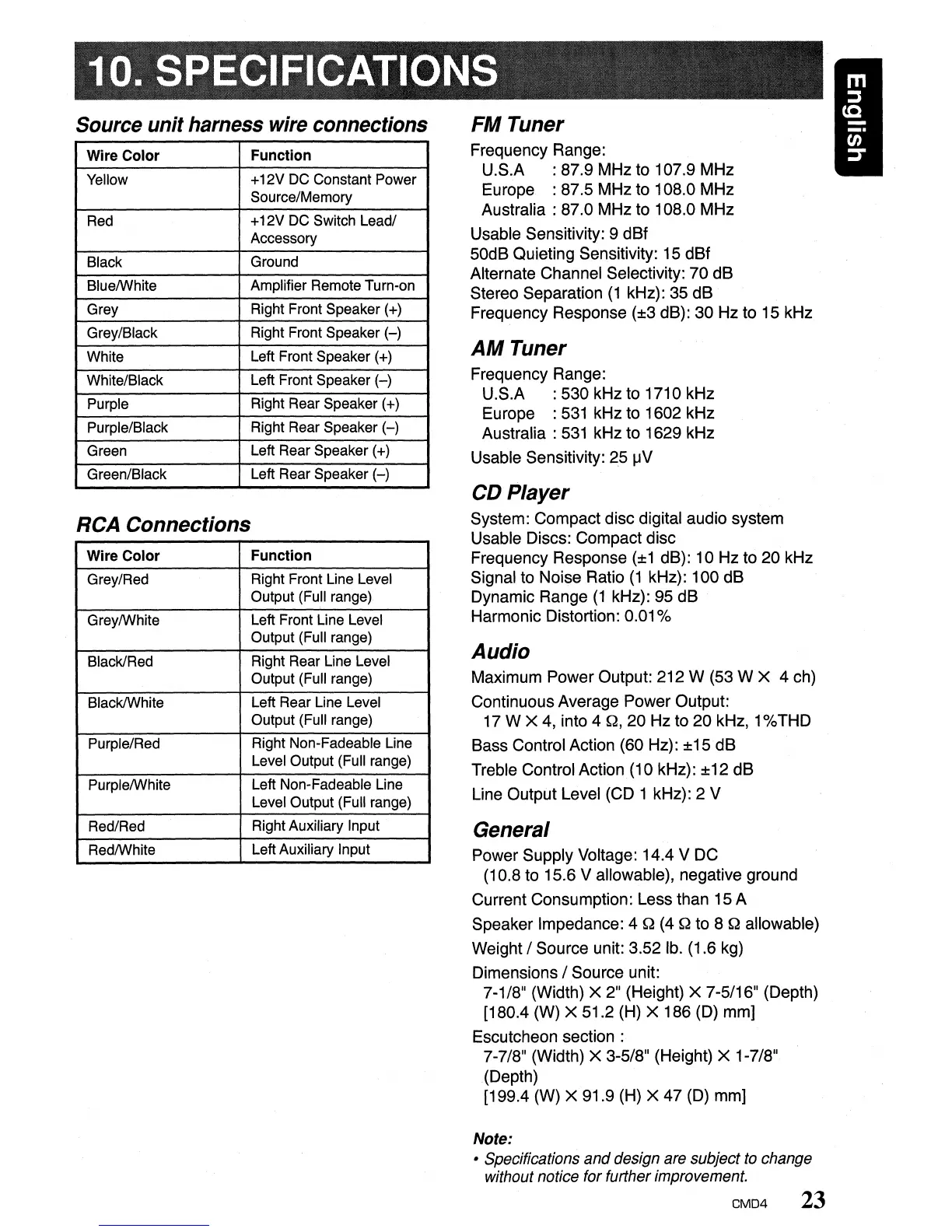

Clarion CMD4 User Manual

Source unitharness wire connections
Wire Color Function
Yellow +12V DC Constant Power
Source/Memory
Red
+12V DC Switch Lead/
Accessory
Black
Ground
BluelWhite Amplifier Remote Turn-on
Grey Right Front Speaker
(+)
Grey/Black Right Front Speaker (-)
White Left Front Speaker (+)
White/Black Left Front Speaker (-)
Purple Right Rear Speaker (+)
Purple/Black Right Rear Speaker (-)
Green Left Rear Speaker (+)
Green/Black Left Rear Speaker (-)
RCA Connections
Wire Color Function
Grey/Red Right Front Line Level
Output (Full range)
GreylWhite Left Front Line Level
Output (Full range)
Black/Red Right Rear Line Level
Output (Full range)
BlacklWhite
Left Rear Line Level
Output (Full range)
Purple/Red
Right Non-Fadeable Line
Level Output (Full range)
PurplelWhite Left Non-Fadeable Line
Level Output (Full range)
Red/Red
Right Auxiliary Input
RedlWhite
Left Auxiliary Input
FMTuner
Frequency Range:
U.S.A : 87.9 MHz to 107.9 MHz
Europe : 87.5 MHz to 108.0 MHz
Australia: 87.0 MHz to 108.0 MHz
Usable Sensitivity: 9 dBf
50dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation
(1 kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range:
U.S.A : 530 kHz to
1710kHz
Europe: 531 kHz to 1602 kHz
Australia: 531 kHz to 1629 kHz
Usable Sensitivity:
2,5 JJV
CD Player
System: Compact disc digital audio system
Usable Discs: Compact disc
Frequency Response
(±1 dB): 10Hz to 20 kHz
Signal to Noise Ratio
(1 kHz): 100 dB
Dynamic Range
(1 kHz): 95 dB
Harmonic Distortion:
0.01 %
Audio
Maximum Power Output: 212 W (53 W X 4 ch)
Continuous Average Power Output:
17 W
X 4, into 4 Q, 20 Hz to 20 kHz, 1
%
THD
Bass Control Action (60 Hz):
±15dB
Treble Control Action (10 kHz): ±12 dB
Line Output Level (CD 1 kHz): 2 V
General
Power Supply Voltage: 14.4 V DC
(10.8 to 15.6 V allowable), negative ground
Current Consumption: Less than
15A
Speaker Impedance: 4 Q (4 Q to 8 Q allowable)
Weight / Source unit: 3.52 lb. (1.6 kg)
Dimensions / Source unit:
7-1/8/1 (Width) X 2/1 (Height) X 7-5/16" (Depth)
[180.4 (W) X 51.2 (H) X 186 (D) mm]
Escutcheon section :
7-7/8" (Width) X 3-5/8" (Height) X
1-7/8/1
(Depth)
[199.4 (W) X 91.9 (H) X 47 (D) mm]
Note:
• Specifications and design are subject to change
without notice for further improvement.
