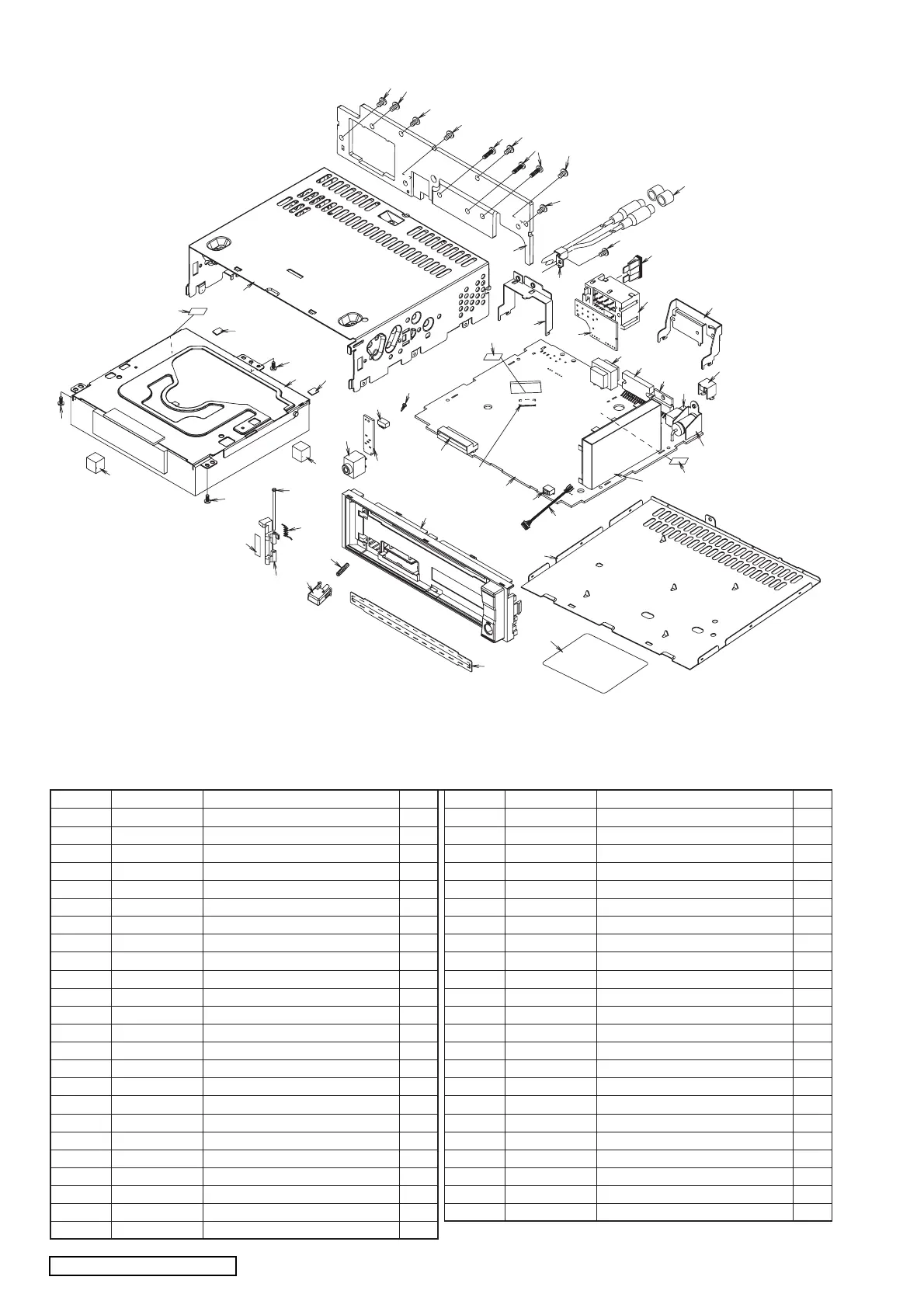

Clarion DB189RMP - Display Items; Display Screen

Main section
1
2
3
4
5
6
7
8
9
10
11
12
18
17
20
21
22
23
24
24
24
44
43
42
41
40
39
38
37
36
35
35
35
35
34
34
34
33
33
31
30
29
28
28
27
27
26
25
43
Note) CD MECHANISM 929-4002-00 is exchanged
correspondence, it is not being possible to repair.
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 074-1217-50 OUTLET SOCKET
(
12P
)
1 24 731-2606-8B TAPTIGHT
(
M2.6X6
)
3
2 074-2246-67 OUTLET SOCKET
(
12P
)
1 25 347-8490-00 FILM 1
3 ----------- MAIN PWB 1 26 347-8456-00 FILM 1
4 013-6100-00 TACT SWITCH 1 27 345-6201-00 CUSHION 2
5 941-0227-30 TUNER PAC
K
1 28 345-6195-00 CUSHION 2
6 092-4000-51 ANT-RECEPT 1 29 347-8427-00 FILM 1
7 075-0393-50 JACK 1 30 276-0372-00 SETPLATE
(
PE-3050E-A
)
1
8 051-3349-00 IC 1 276-0396-00 SETPLATE
(
PE-3050E-B
)
1
9 051-2060-00 IC 1 276-0397-00 SETPLATE
(
PE-3050E-C
)
1
10 009-9006-60 CHOKE 1 31 311-1859-05 LOWER CASE 1
009-9006-70 CHOKE 1 32 345-3799-20 RUBBER PAR
T
2
11 331-4533-00 JACK HOLDER 1 33 714-2610-85 MACHINE SCREW
(
M2.6X10
)
3
12 331-3935-02 IC HOLDER 1 34 714-3006-85 MACHINE SCREW
(
M3X6
)
3
13 074-1285-00 OUTLET SOCKET
(
P
)
1 35 731-3008-89 TAPTIGHT
(
M3X8
)
5
14 060-0057-57 AUTO FUSE(15A) 1 36 313-2006-02 HEAT SIN
K
1
15 855-5426-53 RCA PIN CORD
(
2CH
)
1 37 310-1871-00 UPPER CASE 1
16 ----------- ISO PWB 1 38 929-4002-00 CD MECHANISM 1
17 331-3562-02 CONNECTOR-HOLD 1 39 341-1627-00 SHAFT 1
18 854-4619-50 AUX LEAD 1 40 750-3219-00 SPRING
(
F-HOOK
)
1
19 347-8489-00 FILM 1 41 335-5915-01 HOOK 1
20 382-8567-00 BUTTON
(
P
)
1 42 370-6322-01 INNER-ES 1
21 750-6861-00 SPRING 1 43 076-0502-55 PLUG 1
22 346-0194-00 LEATHER SHEET 1 44 ----------- AUX PWB 1
23 075-9021-50 JACK 1
13
14
15
16
19
35
32
