DPX1001.2 Power System Amplifier
8
(Set INPUT SELECT Switch to STEREO)
Mixed-Mode Satellite and Subwoofer System
NOTE: Chart values based on 4 ohm speakers.

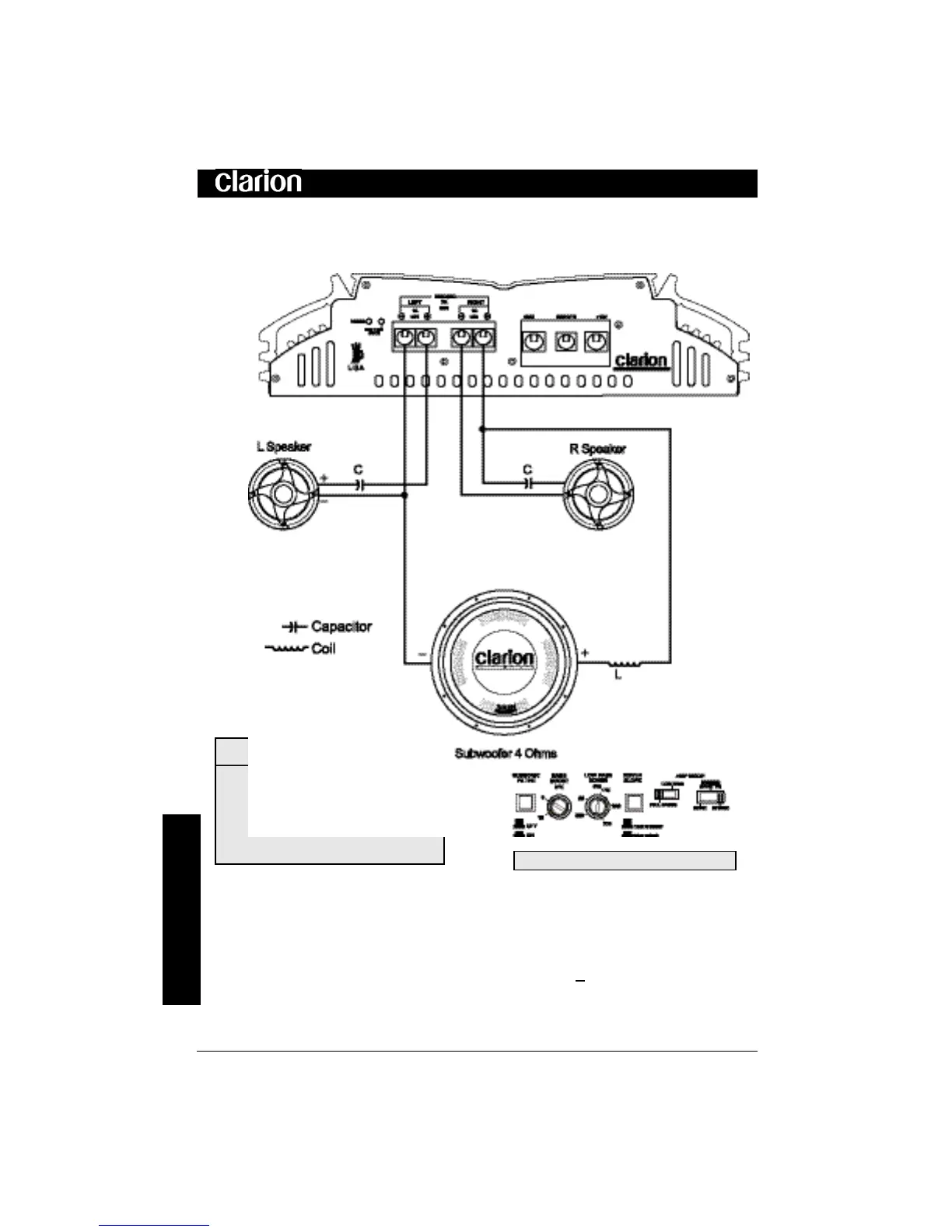

Figure 5 - The amplifier can be configured for a mixed-mode operation. The
table provides component values to create a 6dB per octave crossover at
specified frequencies. Use components that have a + 5% tolerance and
capacitors rated at 100V. NOTE: Choose the same frequency for both LP
and HP crossovers. Do not overlap frequencies, as this may damage the
amplifier.
Set amp mode switch to fullrange
FREQ (Hz)
80
100
125
150
200
L (mH)
8.0
6.4
5.1
4.2
3.2
C (µF)
497
398
318
265
199
