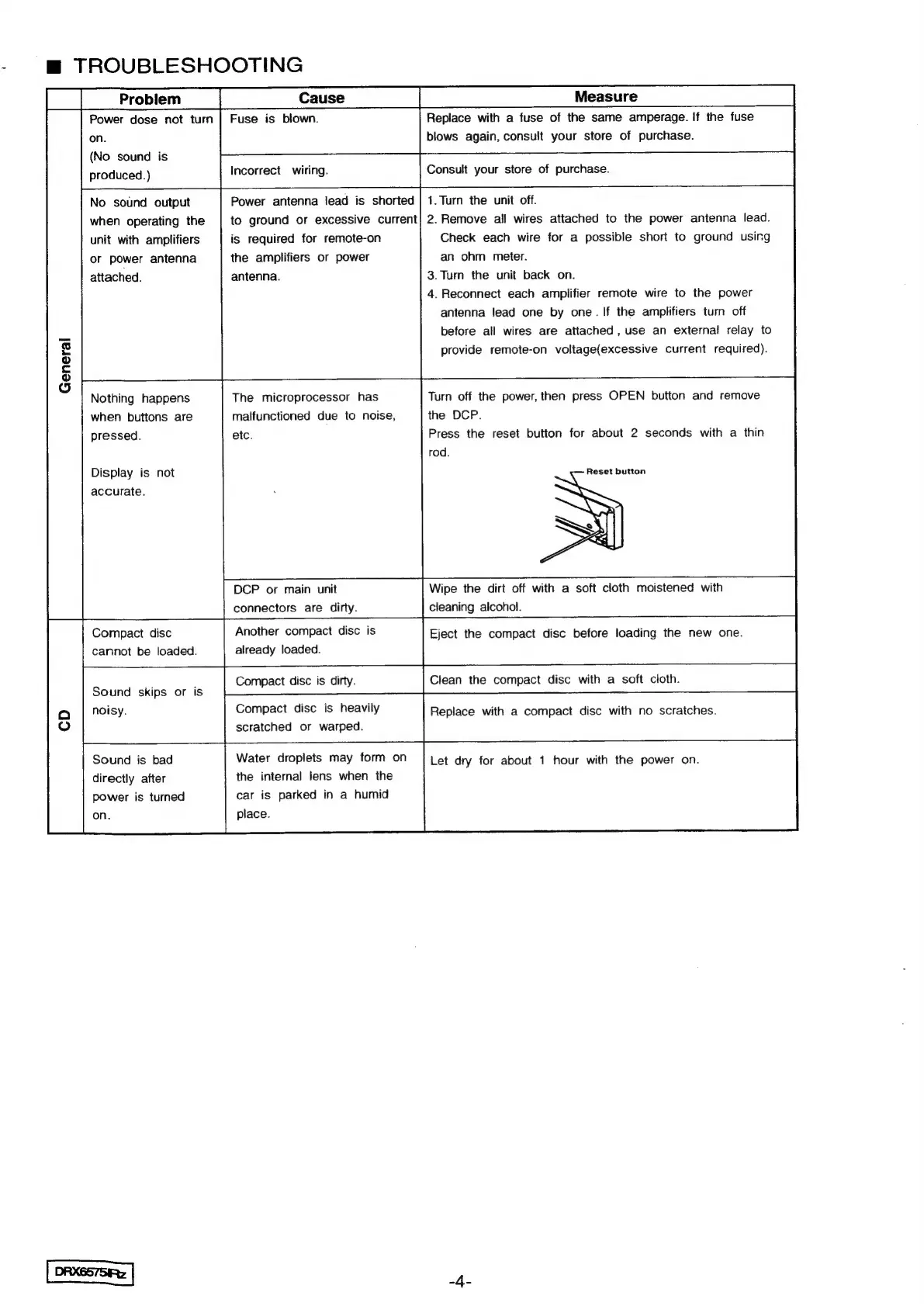

Clarion DRX6575RZ Service Manual

m TROUBLESHOOTING
[| [Problem | Cause
Power dose not turn | Fuse is blown.
on.
Incorrect wiring.
(No sound is
produced.)
Power antenna lead is shorted
to ground or excessive current
is required for remote-on
the amplifiers or power
antenna.
Replace with a fuse of the same amperage. If the fuse
blows again, consult your store of purchase.
Consult your store of purchase.
1. Turn the unit off.
2. Remove all wires attached to the power antenna lead.
Check each wire for a possible short to ground using
an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the power
No sound output
when operating the
unit with amplifiers
or power antenna
attached.
antenna lead one by one. If the amplifiers turn off
before all wires are attached, use an external relay to
provide remote-on voltage(excessive current required).
Turn off the power, then press OPEN button and remove
the DCP.
Press the reset button for about 2 seconds with a thin
rod.
Nothing happens
when buttons are
pressed.
The microprocessor has
malfunctioned due to noise,
etc.
Display is not Reset button
accurate.
Ss
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
DCP or main unit
connectors are dirty.
Another compact disc is
already loaded.
Compact disc
cannot be loaded.
Eject the compact disc before loading the new one.
Compact disc is dirty. Clean the compact disc with a soft cloth.
Sound skips or is
noisy.
Compact disc is heavily
scratched or warped.
Replace with a compact disc with no scratches.
Water droplets may form on
the internal lens when the
Sound is bad
directly after
power is turned
on.
Let dry for about 1 hour with the power on.
car is parked in a humid
place.
