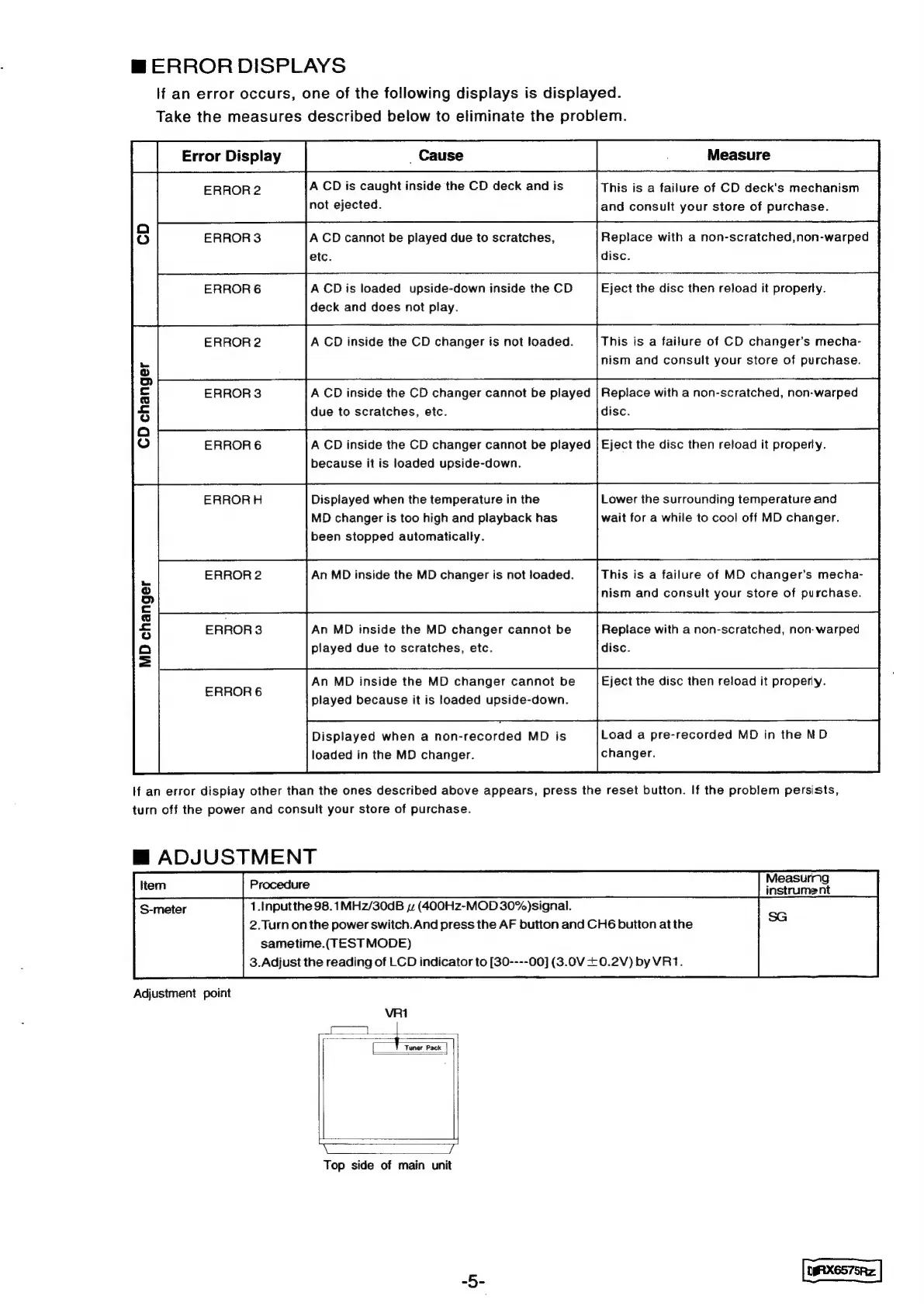

lm ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Take the measures described below to eliminate the problem.
ERROR 2 A CD is caught inside the CD deck and is
not ejected.
ERROR 3 A CD cannot be played due to scratches,
etc.
ERROR 6 ACD is loaded upside-down inside the CD
deck and does not play.
ERROR 2 A CD inside the CD changer is not loaded.
ERROR 3 ACD inside the CD changer cannot be played
due to scratches, etc.
ERROR 6 ACD inside the CD changer cannot be played
because it is loaded upside-down.
ERROR H Displayed when the temperature in the
MD changer is too high and playback has
been stopped automatically.
ERROR 2 An MD inside the MD changer is not loaded.
This is a failure of CD deck's mechanism
and consult your store of purchase.
Replace with a non-scratched,non-warped
disc.
Eject the disc then reload it properly.
This is a failure of CD changer’s mecha-
nism and consult your store of purchase.
Replace with a non-scratched, non-warped
disc.
Eject the disc then reload it properly.
be
®
D
¢
®
<=
)
a
oO
Lower the surrounding temperature and
wait for a while to cool off MD changer.
This is a failure of MD changer’s mecha-
nism and consult your store of purchase.
ERROR 3
MD changer
ERROR 6
An MD inside the MD changer cannot be
played due to scratches, etc.
An MD inside the MD changer cannot be
played because it is loaded upside-down.
Displayed when a non-recorded MD is
loaded in the MD changer.
Replace with a non-scratched, non- warped
disc.
Eject the disc then reload it properly.
Load a pre-recorded MD in the MD
changer.
lf an error display other than the ones described above appears, press the reset button. If the problem persists,
turn off the power and consult your store of purchase.
mM ADJUSTMENT
fem Prsea
1.Inputthe 98. 1MH2/30dB yz (400HZ-MOD 30%)signal.
S-meter
instrument
2.Turn on the power switch.And press the AF button and CH6 button at the
sametime.(TEST MODE)
3.Adjust the reading of LCD indicator to [30----00] (3.0V+0.2V) by VR1.
Adjustment point
{ __* Tuner Pack |
Top side of main unit
DSRXES75Rz
