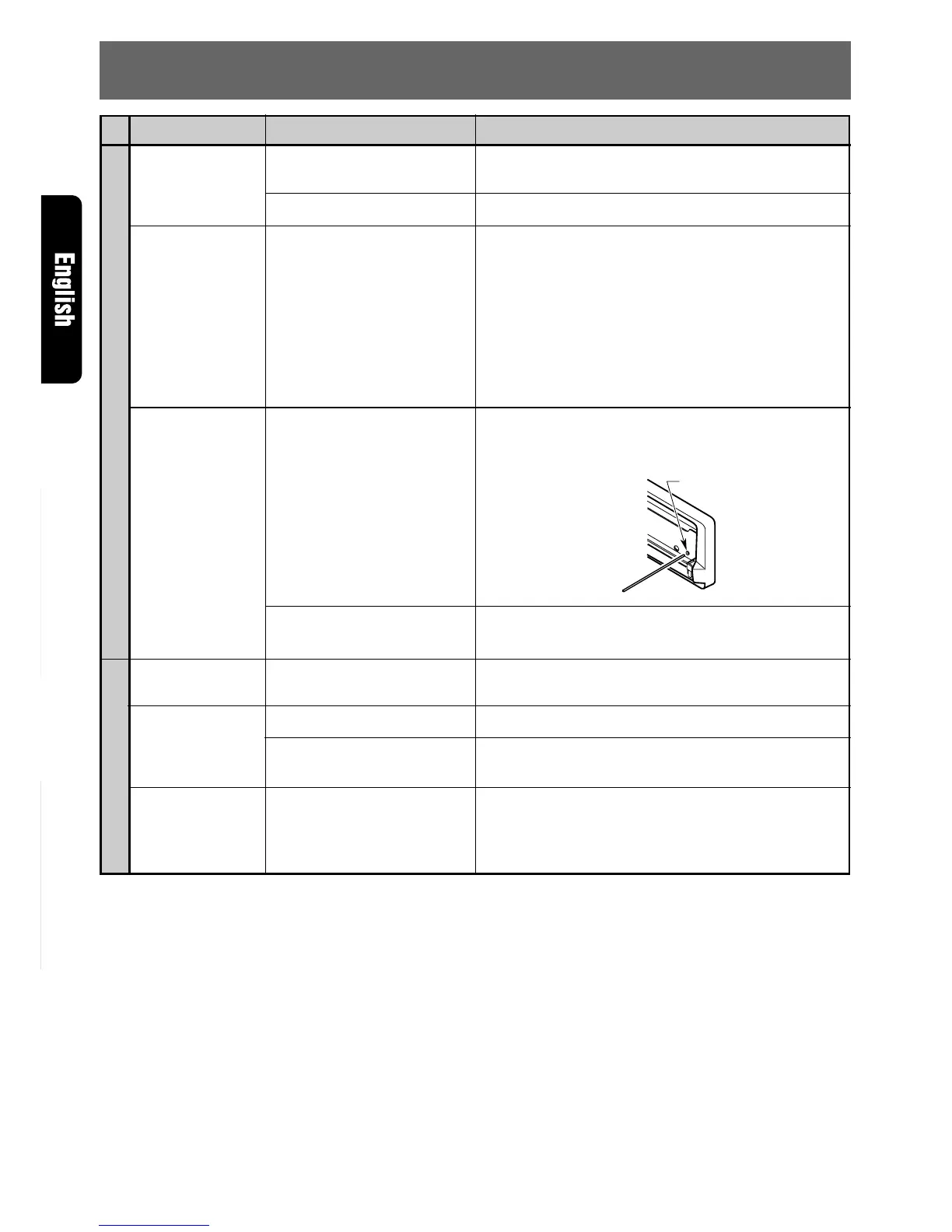

9. TROUBLESHOOTING
Power does not
turn on.
(No sound is
produced.)
No sound output
when operating
the unit with
amplifiers or
power antenna
attached.
Nothing happens
when buttons are
pressed.
Display is not
accurate.
Compact disc
cannot be loaded.
Sound skips or is
noisy.
Sound is bad
directly after
power is turned
on.
Problem
Fuse is blown.
Incorrect wiring.
Power antenna lead is
shorted to ground or
excessive current is required
for remote-on the amplifiers
or power antenna.
The microprocessor has
malfunctioned due to noise,
etc.
DCP or source unit
connectors are dirty.
Another compact disc is
already loaded.
Compact disc is dirty.
Compact disc is heavily
scratched or warped.
Water droplets may form on
the internal lens when the
car is parked in a humid
place.
Replace with a fuse of the same amperage. If the
fuse blows again, consult your store of purchase.
Consult your store of purchase.
1. Turn the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for a possible short to
ground using an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the
power antenna lead one by one. If the amplifiers
turn off before all wires are attached, use an
external relay to provide remote-on voltage
(excessive current required).
Turn off the power, then press the OPEN button 1
and remove the DCP.
Press the reset button for about 2 seconds with a thin
rod.
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
Eject the compact disc before loading the new one.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Let dry for about 1 hour with the power on.
Reset button
General
CD
Cause Measure

Clarion DRX6575z Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	11 dBf
50dB quieting sensitivity	17 dBf
alternate channel selectivity	75 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	10 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dB
dynamic range (1 kHz)	95 dB
harmonic distortion	0.01%

Audio

maximum power output	160 W (40 W × 4 ch) (EIAJ)
continuous average power output	14 W × 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (30 Hz)	±15 dB
treble control action (10 kHz)	±10 dB
line output level (CD 1 kHz)	4 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable), negative ground
current consumption	Less than 15 A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight of source unit	3.75 lb. (1.7 kg)
weight of remote control unit	1 oz. (30 g) (including battery)
dimensions of source unit	7" (Width) × 2" (Height) × 6-1/8" (Depth) [178 (W) × 50 (H) × 155 (D) mm]
dimensions of remote control unit	1-3/4" (Width) × 4-5/16" (Height) × 1-1/8" (Depth) [44 (W) × 110 (H) × 27 (D) mm]
