Clarion DRX9255 User Manual

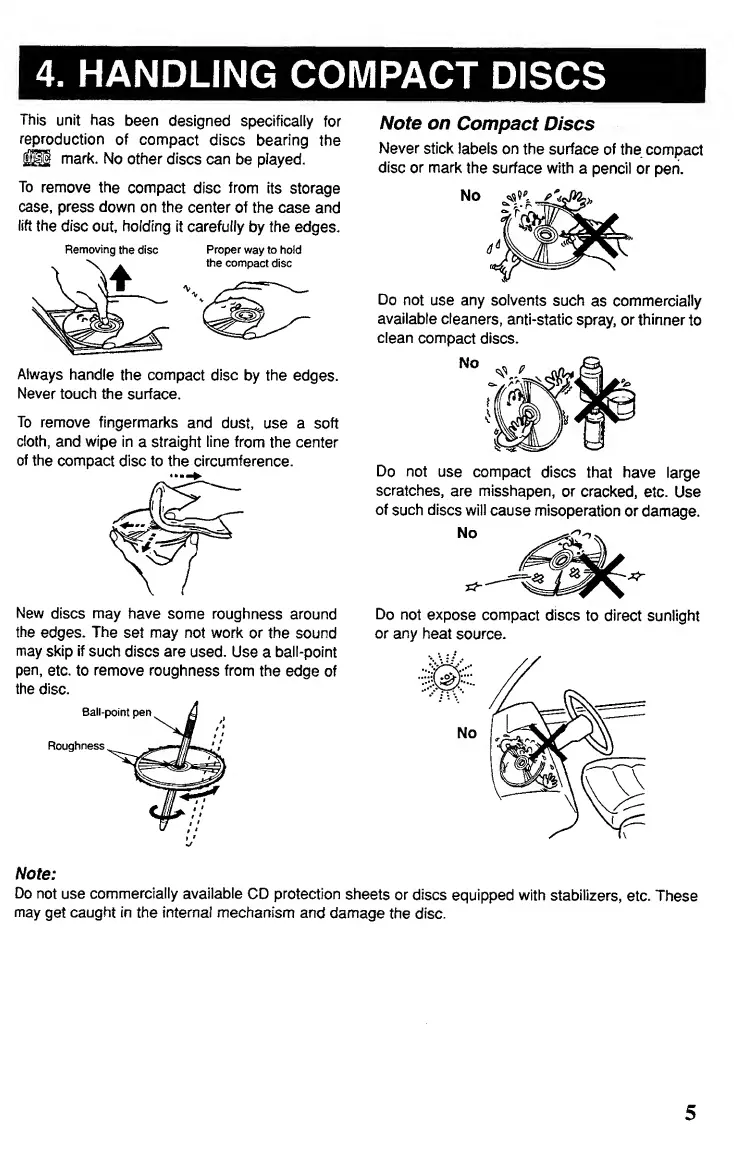

4. HANDLING COMPACT DISCS
This unit has been designed specifically for
reproduction of compact discs bearing the
mark. No other discs can be played.
To remove the compact disc from its storage
case, press down on the center of the case and
lift the disc out, holding it carefully by the edges.
Removing the disc Proper way to hold
Always handle the compact disc by the edges.
Never touch the surface.
To remove fingermarks and dust, use a soft
cloth, and wipe in a straight line from the center
of the compact disc to the circumference.
New discs may have some roughness around
the edges. The set may not work or the sound
may skip if such discs are used. Use a ball-point
pen, etc. to remove roughness from the edge of
the disc.
Note on Compact Discs
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
Do not use any solvents such as commercially
available cleaners, anti-static spray, or thinner to
clean compact discs.
Do not use compact discs that have large
scratches, are misshapen, or cracked, etc. Use
of such discs will cause misoperation or damage.
Do not expose compact discs to direct sunlight
or any heat source.
Note:
Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These
may get caught in the internal mechanism and damage the disc.
5

Clarion DRX9255 Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
power supply voltage	14.4 V DC
usable sensitivity	9 dBf

CD Player

frequency response	5 Hz to 20 kHz (±1 dB)
signal to noise ratio	110 dB (1 kHz) IHF-A
dynamic range	100 dB (1 kHz)

Weight and Dimensions

source unit weight	1.8 kg
source unit dimensions	178 mm Width x 50 mm Height x 153 mm Depth
DC/DC converter weight	0.3 kg
