- 4 -

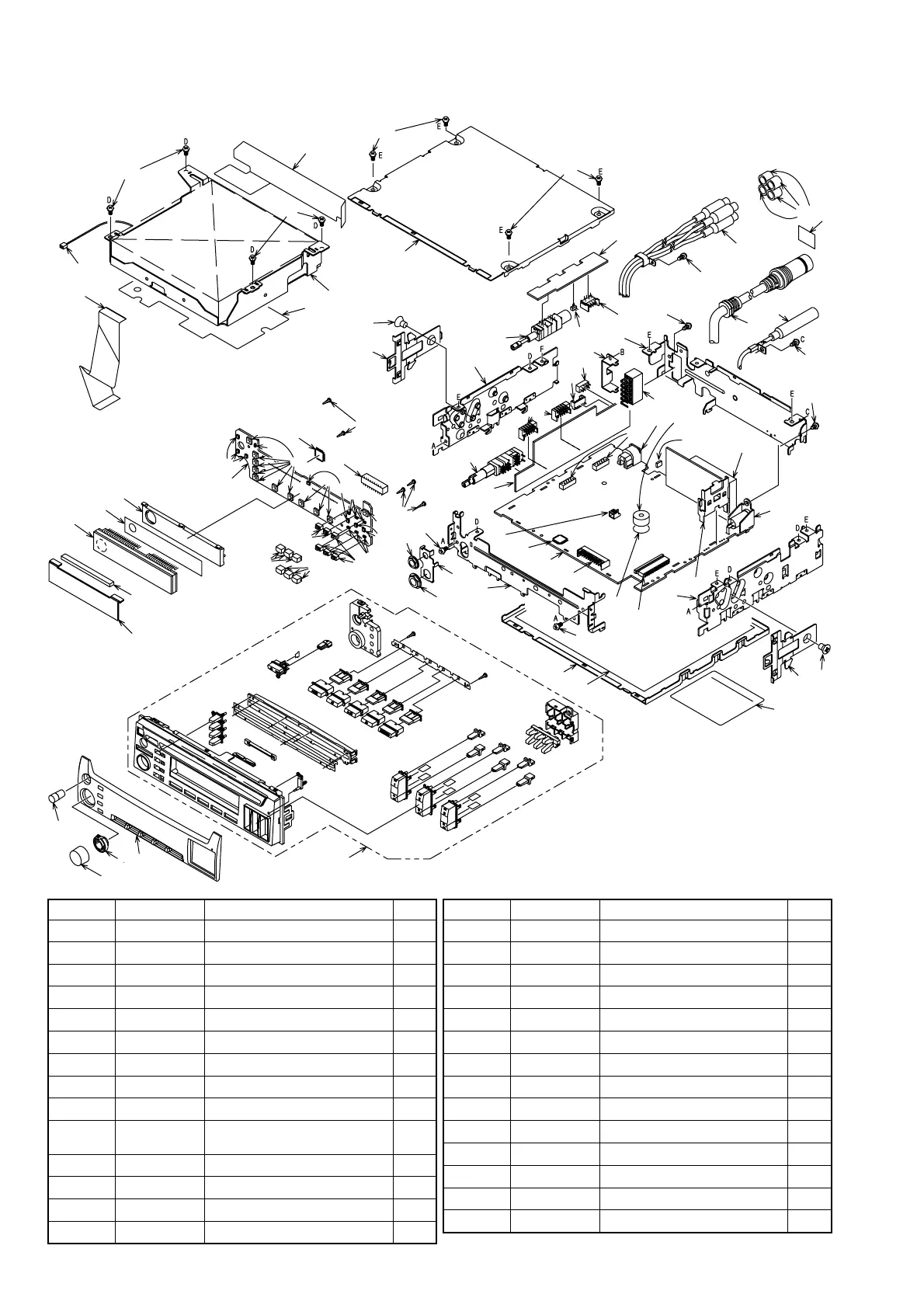

■EXPLODED VIEW・PARTS LIST
Main section
49
51
52
50
1
57
55
47
33
45
23
24
65
64
40
48
17
35
18
19
20
21
47
2
3
6
7
8
4
4
15
15
14
13
12
5
14
13
16
16
10
13
14
11
9
5
48
22
27
39
36
31
26
37
38
25
47
30
32
34
29
44
68
42
46
47
43
41
47
62
66
56
48
67
67
54
59
47
63
58
65
64
28
60
61
47
53
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 940-7910-00 ESCUTCHEON ASSY 1
2 335-5061-00 COLOR FILTER 1
3 345-7778-00 CUSHION SHEET 1
4 345-5140-00 RUBBER SPACER 6
5 716-0872-01 PAD SCREW(M1.7×5) 5
6 379-4009-20 INDICATOR 1
7 347-5282-00 DOUBLE FACE 1
8 335-5072-00 VFD HOLDER 1
9 074-1105-20 OUTLET SOCKET(20P) 1
10 039-0686-00 SWITCH PWB 1
(WITHOUT COMPONENT)
11 051-6017-00 IC(MSC1200) 1
12 013-6501-52 SWITCH 1
13 001-0593-01 DIODE(CL-155-Y) 7
14 001-0647-00 DIODE(CL-150R-CD) 7
15 013-6302-50 SWITCH 6
16 013-6501-51 SWITCH 10
17 051-6316-00 IC(SM5845AF) 1
18 309-0665-00 FRONT PLATE 1
19 331-1807-00 VOL-HOLDER 1
20 722-0370-01 NUT 1
21 722-0433-02 NUT 1
22 305-0248-00 SIDE COVER 1
23 305-0249-00 SIDE COVER 1
24 313-1651-00 HEAT SINK 1
25 307-0520-00 REAR COVER 1
26 331-1806-00 CONNECTOR HOLDER 1
27 016-2290-01 VR W/SHAFT(VOL/FAD) 1
28 016-4415-00 VR W/SHAFT(BASS/TREB) 1
To Next Page
