Clarion DXZ445 User Manual

280-8008-00
DXZ445 9
English
5. DCP
CAUTION
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [FNC] button for 1 second or
longer to switch off the power.
2. Press in the [RELEASE] button.
[
RELEASE
]
button
∗ The DCP is unlocked
3. Remove the DCP.
DCP
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
DCP
2.
1.

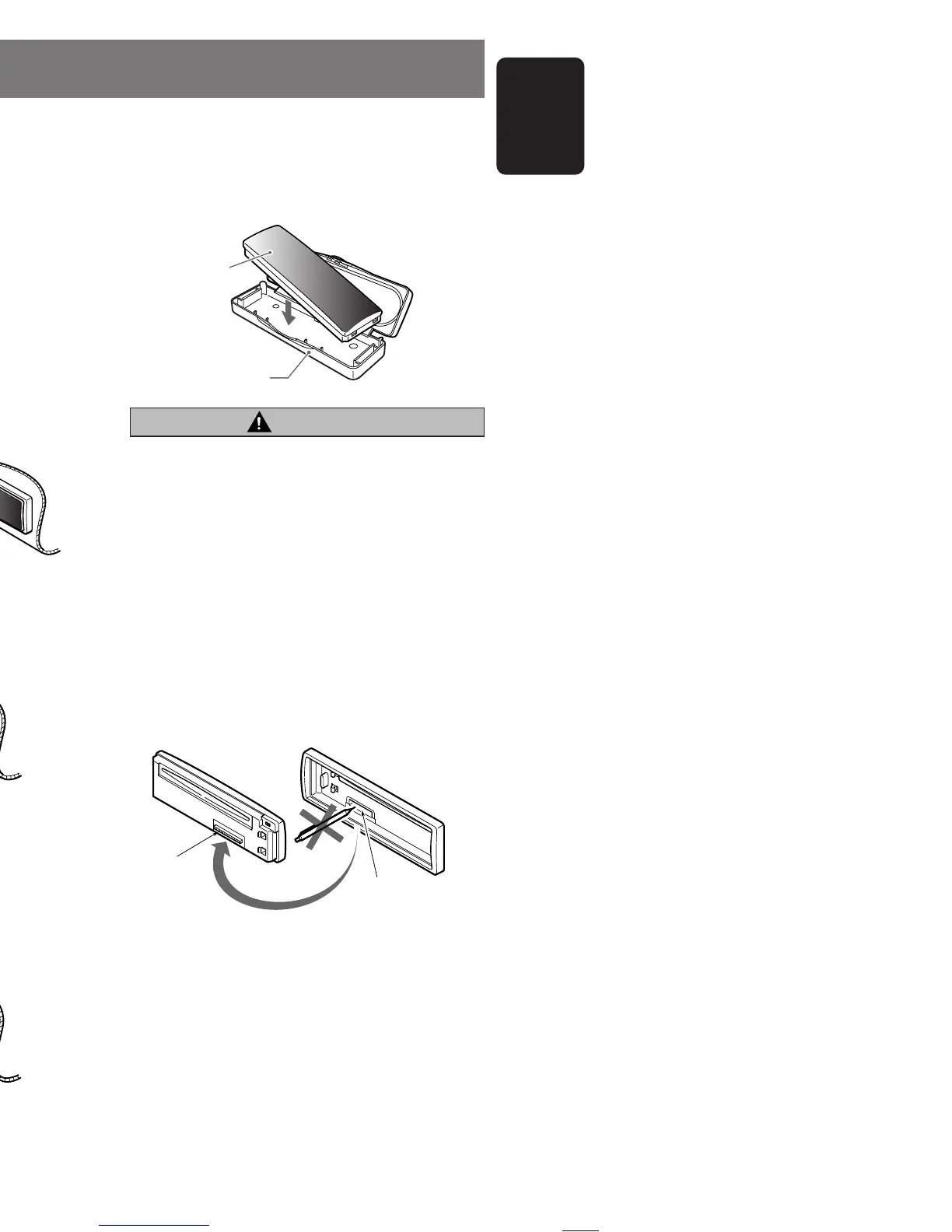

Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct
orientation.)
DCP
DCP case
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• When the Release button is pressed and
the DCP is unlocked, the car’s vibrations
may cause it to fall. To prevent damage to
the DCP, always store it in its case after
detaching it. (ee figure below.)
• The connector connecting the main unit
and the DCP is an extremely important
part. Be careful not to damage it by
pressing on it with fingernails,
screwdrivers, etc.
DCP Rear Panel Main Unit Front
Main unit connector
DCP
connector
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
+DXZ445-009-ENG 11/7/03, 6:03 PM9

Clarion DXZ445 Specifications

Audio

maximum power output	208 W (52 W ✕ 4 ch)
continuous average power output	17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action	±15 dB
treble control action	±12 dB
line output level	2 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)

Weight and Dimensions

weight of source unit	2.64 lb. (1.2 kg)
weight of remote control unit	1 oz. (30 g) (including battery)
dimensions of source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 50 (H) ✕ 155 (D) mm]
dimensions of remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth) [44 (W) ✕ 110 (H) ✕ 27 (D) mm]
