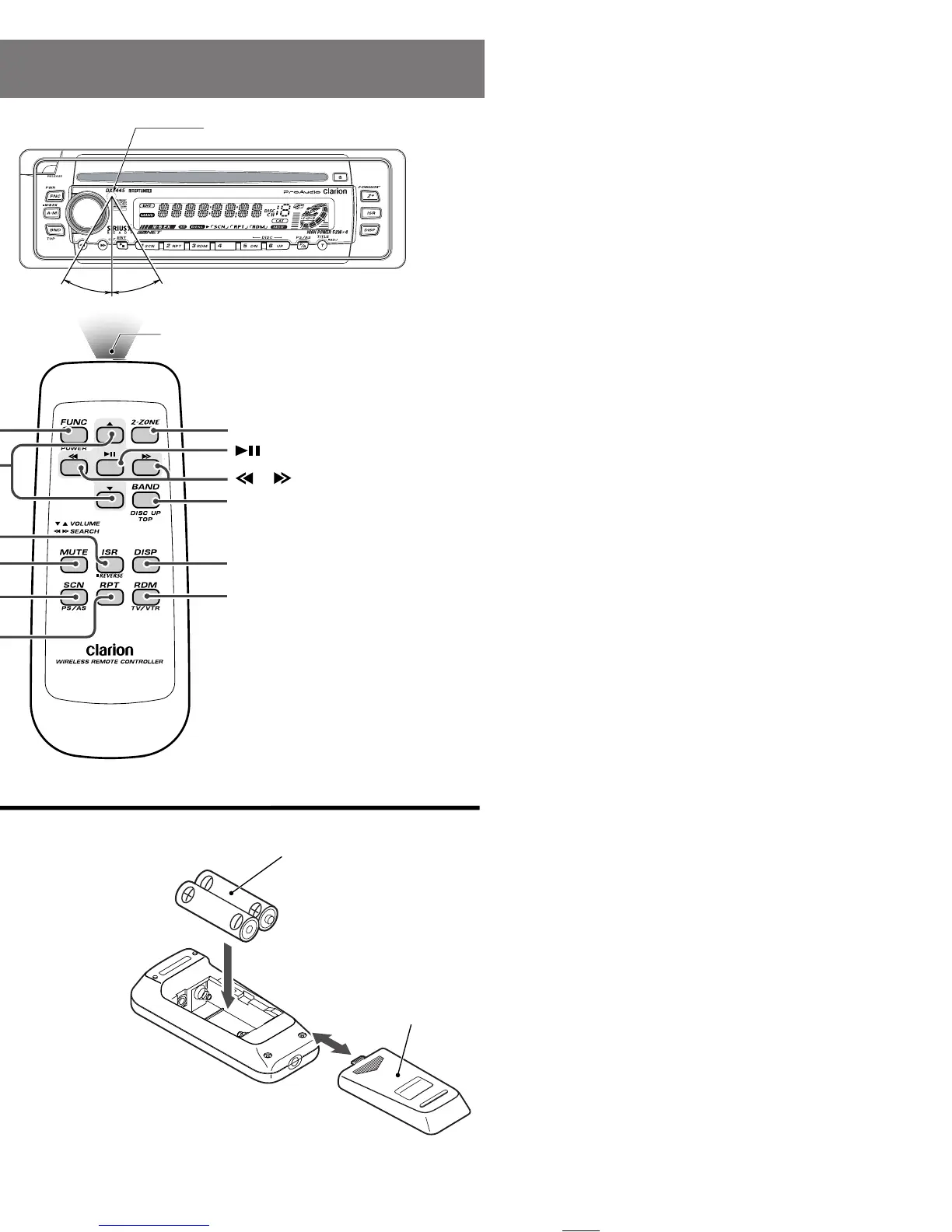

6. REMOTE CONTROL
[
FUNC
]
[ ],[ ]
[
ISR
]
[
MUTE
]
[
SCN
]
[
RPT
]
[ ]
[ ],[ ]
[
BAND
]
[
DISP
]
[
RDM
]
[
2-ZONE
]
Rear side
AA (SUM-3, IECR-6/1.5V)
Batteries
Rear cover
Remote control unit
Inserting the Batteries
1. Turn the remote control unit over, then slide the
rear cover in the direction of the arrow.
2. Insert the AA (SUM-3, IECR-6/1.5V) batteries
that came with the remote control unit facing in
the directions shown in the figure, then close
the rear cover.
Notes:
Using batteries improperly can cause them to
explode. Take note of the following points:
• When replacing batteries, replace both batteries
with new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
Receiver for remote control unit
Operating range: 30˚ in all directions
Signal transmitter
+DXZ445-009-ENG 11/7/03, 6:03 PM10

Clarion DXZ445 Specifications

Audio

maximum power output	208 W (52 W ✕ 4 ch)
continuous average power output	17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action	±15 dB
treble control action	±12 dB
line output level	2 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable)
current consumption	Less than 15 A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)

Weight and Dimensions

weight of source unit	2.64 lb. (1.2 kg)
weight of remote control unit	1 oz. (30 g) (including battery)
dimensions of source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 50 (H) ✕ 155 (D) mm]
dimensions of remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth) [44 (W) ✕ 110 (H) ✕ 27 (D) mm]
