Clarion DXZ635MP User Manual

DXZ635MP 9
English

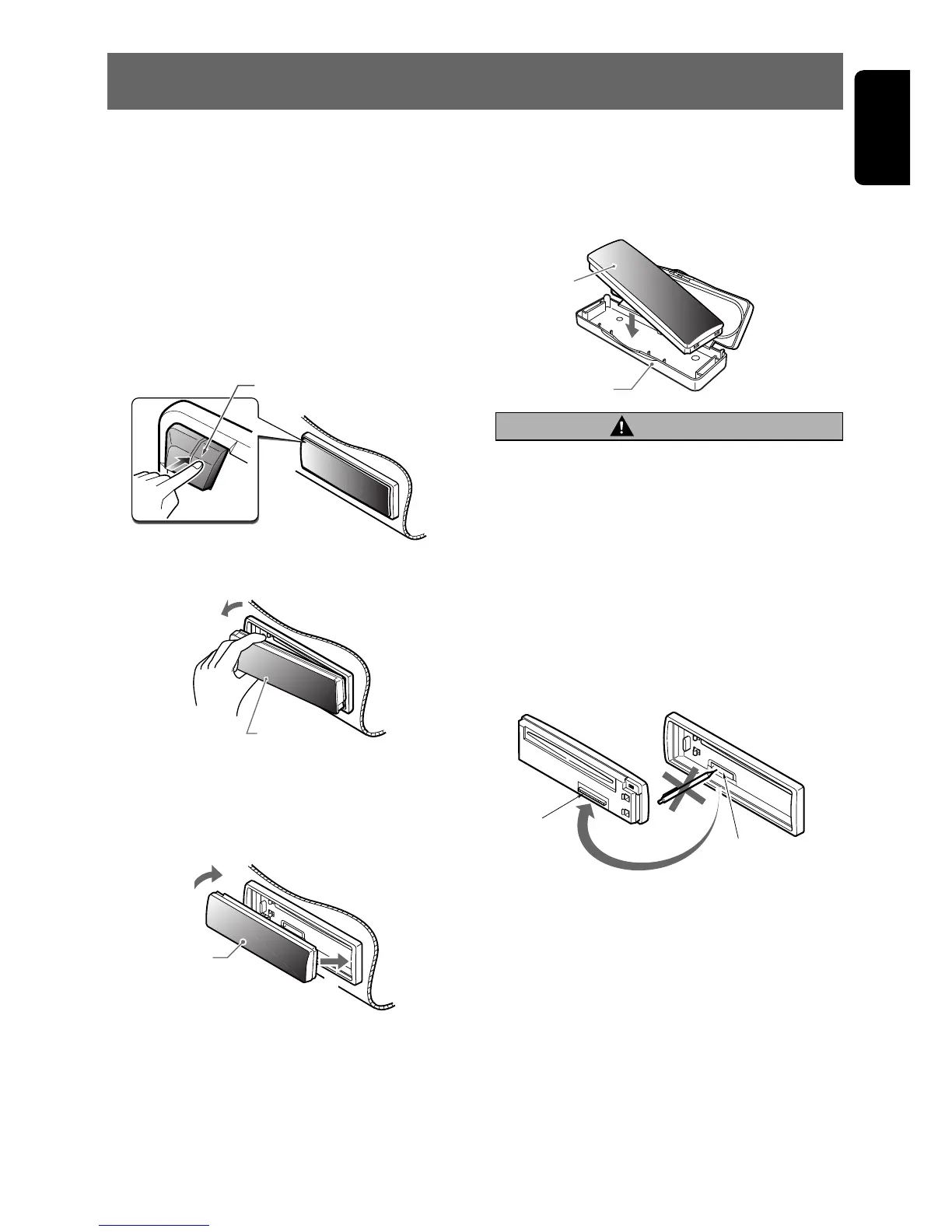

5. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [FNC] button for 1 second or
longer to switch off the power.
2. Press in the [RELEASE] button.
3. Remove the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the
Source unit.
2. Insert the left side of the DCP into the
Source unit.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orienta-
tion.)
DCP
[
RELEASE
]
button
DCP
2.
1.
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
CAUTION
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• When the Release button is pressed and
the DCP is unlocked, the car’s vibrations
may cause it to fall. To prevent damage to
the DCP, always store it in its case after de-
taching it. (ee figure below.)
• The connector connecting the Source unit
and the DCP is an extremely important
part. Be careful not to damage it by press-
ing on it with fingernails, screwdrivers, etc.
DCP
DCP case
DCP Rear Panel Source Unit Front
Source unit connector
DCP
connector

Clarion DXZ635MP Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dBA
dynamic range (1 kHz)	95 dB
harmonic distortion	0.01%
channel separation (1 kHz)	85 dB

Audio

maximum power output	208 W (52 W ✕ 4 ch)
continuous average power output	17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz/80 Hz/120 Hz)	+16 dB, -12dB
treble control action (8 kHz/12 kHz)	±12 dB
line output level (CD 1 kHz)	1.8 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable), negative ground
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	2.86 lb. (1.3 kg)
weight / remote control unit	1 oz. (30 g) (including battery)
dimensions / source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 50 (H) ✕ 155 (D) mm]
dimensions / remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth) [44 (W) ✕ 110 (H) ✕ 27 (D) mm]
