Clarion DXZ635MP User Manual

DXZ635MP 27
English

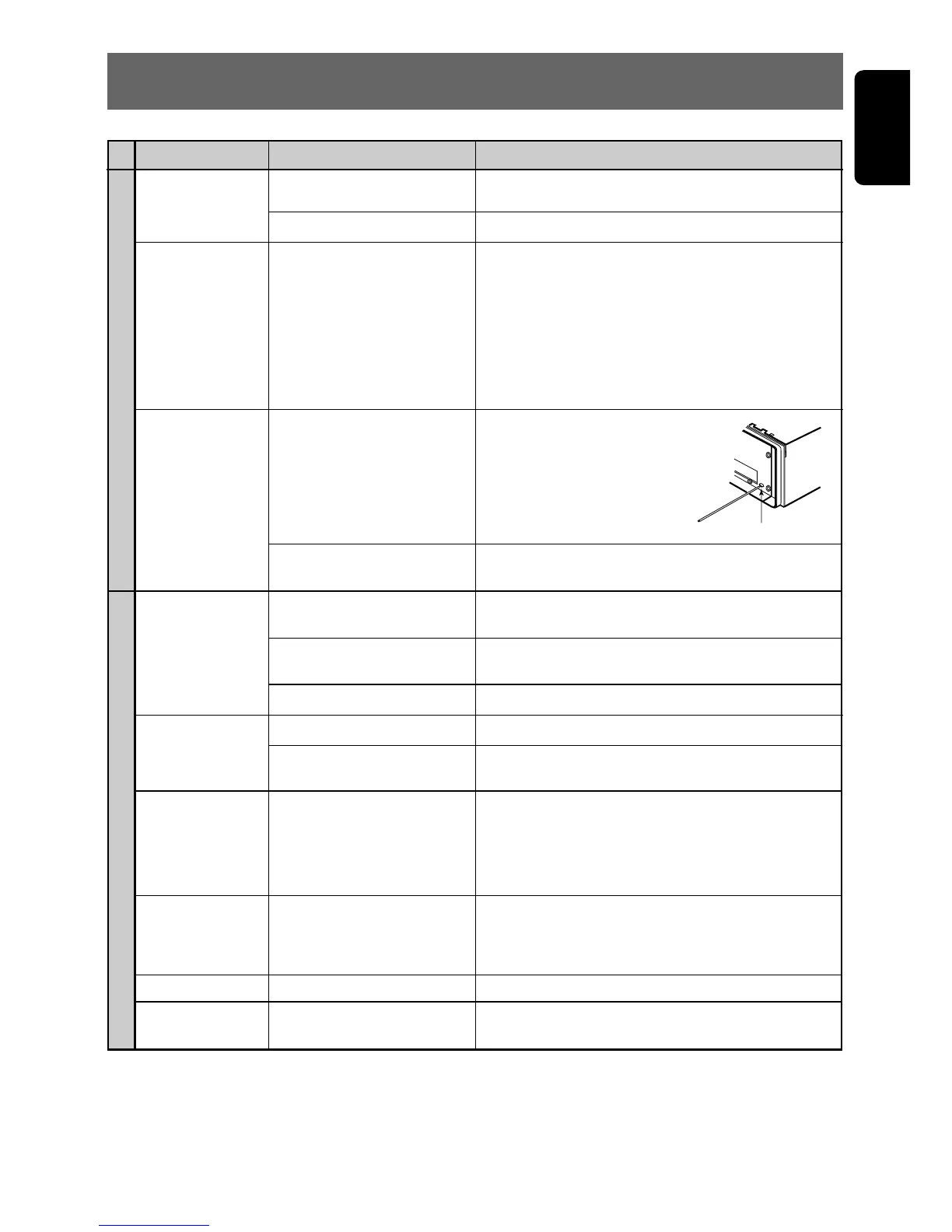

9. IN CASE OF DIFFICULTY
Power does not
turn on.
(No sound is
produced.)
No sound output
when operating
the unit with
amplifiers or
power antenna
attached.
Nothing happens
when buttons are
pressed.
Display is not
accurate.
No sound heard
Sound skips or is
noisy.
Sound is cut or
skipped.
Noise is
generated or
noise is mixed
with sound.
Sound is bad
directly after
power is turned
on.
Wrong filename
Play list play is
not performed.
Problem
Fuse is blown.
Incorrect wiring.
Power antenna lead is
shorted to ground or
excessive current is required
for remote-on the amplifiers
or power antenna.
The microprocessor has
malfunctioned due to noise,
etc.
DCP or source unit
connectors are dirty.
MP3/WMA files are absent
in a disc.
Files are not recognized as
an MP3/WMA file.
File system is not correct.
Compact disc is dirty.
Compact disc is heavily
scratched or warped.
MP3/WMA files are not
encoded properly.
Water droplets may form on
the internal lens when the
car is parked in a humid
place.
File system is not correct.
File name or extension is not
correct.
Replace with a fuse of the same amperage. If the
fuse blows again, consult your store of purchase.
Consult your store of purchase.
1. Turn the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for a possible short to
ground using an ohm meter.
3. Turn the unit back on.
4. Reconnect each amplifier remote wire to the
power antenna lead one by one. If the amplifiers
turn off before all wires are attached, use an
external relay to provide remote-on voltage
(excessive current required).
Wipe the dirt off with a soft cloth moistened with
cleaning alcohol.
Write MP3/WMA files onto the disc properly.
Use MP3/WMA files encoded properly.
Use ISO9660 level 1, 2, 3 or JOLIET or Romeo file system.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Use MP3/WMA files encoded properly.
Let dry for about 1 hour with the power on.
Use ISO9660 level 1, 2, 3 or JOLIET or Romeo file system.
Use alphanumeric/ASCII characters for MP3/WMA file name.
Use “.M3U” or “.ASX” for the file extension of a play list.
Cause Measure
Reset button
CD/MP3/WMA
General
Turn off the power, then press
the [RELEASE] button and
remove the DCP.
Press the reset button for
about 2 seconds with a thin
rod.

Clarion DXZ635MP Specifications

FM Tuner

frequency range	87.9 MHz to 107.9 MHz
usable sensitivity	9 dBf
50dB quieting sensitivity	15 dBf
alternate channel selectivity	70 dB
stereo separation (1 kHz)	35 dB
frequency response (±3 dB)	30 Hz to 15 kHz

AM Tuner

frequency range	530 kHz to 1710 kHz
usable sensitivity	25 µV

CD Player

system	Compact disc digital audio system
usable discs	Compact disc
frequency response (±1 dB)	5 Hz to 20 kHz
signal to noise ratio (1 kHz)	100 dBA
dynamic range (1 kHz)	95 dB
harmonic distortion	0.01%
channel separation (1 kHz)	85 dB

Audio

maximum power output	208 W (52 W ✕ 4 ch)
continuous average power output	17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
bass control action (50 Hz/80 Hz/120 Hz)	+16 dB, -12dB
treble control action (8 kHz/12 kHz)	±12 dB
line output level (CD 1 kHz)	1.8 V

General

power supply voltage	14.4 V DC (10.8 to 15.6 V allowable), negative ground
current consumption	Less than 15 A, 3A
speaker impedance	4 Ω (4 Ω to 8 Ω allowable)
weight / source unit	2.86 lb. (1.3 kg)
weight / remote control unit	1 oz. (30 g) (including battery)
dimensions / source unit	7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth) [178 (W) ✕ 50 (H) ✕ 155 (D) mm]
dimensions / remote control unit	1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8" (Depth) [44 (W) ✕ 110 (H) ✕ 27 (D) mm]
