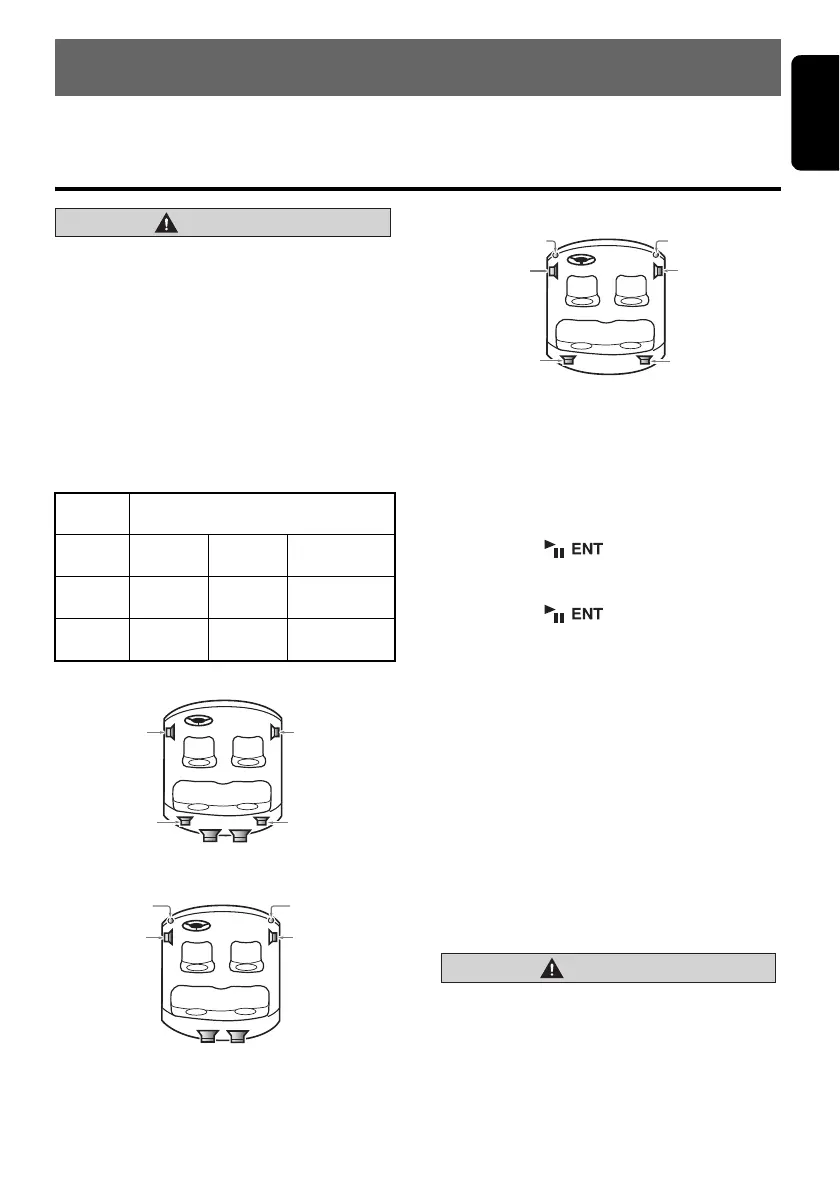

13 DXZ785USB
6. OPERATIONS
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 6.
Basic Operations
CAUTION
Be sure to lower the volume before
switching off the unit power or the ignition
key. The unit remembers its last volume
setting. If you switch the power off with the
volume up, when you switch the power back
on, the sudden loud volume may hurt your
hearing and damage the unit.
Selecting speaker system
When this product is turned on for the first time,
it allows you to select a speaker system.
Speaker system
● Normal speaker system (NORMAL)
● 3way speaker system (3WAY)
● 2way speaker system (2WAY)
1. Push the [SEEK PANEL] leftward or
rightward to select the setting.
Each time you push the [SEEK PANEL]
leftward or rightward, the setting change in
the following order:
“NORMAL” ↔ “3WAY” ↔ “2WAY” ↔
“NORMAL”...
2. Press the [ ] button.
3. Push the [SEEK PANEL] leftward or
rightward to select “OK” or “CANCEL”.
4. Press the [ ] button to store the
setting.
∗ Refer to the section “Adjusting Sound Mode”
(page 15) and “Adjusting Sound Setting Mode”
(page 19).
Note:
• The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power
is turned on, “SYSTEM CHECK” appears in the
display, then the unit returns to the selecting
speaker system.
System check function
If you change your speaker system while the
power of this unit is on, perform the System
check function to select the appropriate speaker
system again. See “Performing a system
check” (page 31) for details.
CAUTION
Select the speaker system suited to your
speaker configuration. Failing to do so can
damage your speakers.
Speaker
system
Speaker configuration
NORMAL
(Normal)
Front 2ch Rear 2ch Subwoofer 2ch
3WAY
(3way)
High 2ch Mid 2ch Subwoofer 2ch
2WAY
(2way)
High 2ch Mid 2ch Rear 2ch
Subwoofer
Front speaker
(left)
Front speaker
(right)
Rear speaker
(right)
Rear speaker
(left)
Subwoofer
Tweeter (left)
Tweeter (right)
Front speaker
(left)
Front speaker
(right)
Tweeter (left)
Tweeter (right)
Front speaker
(left)
Front speaker
(right)
Rear speaker
(right)
Rear speaker
(left)
