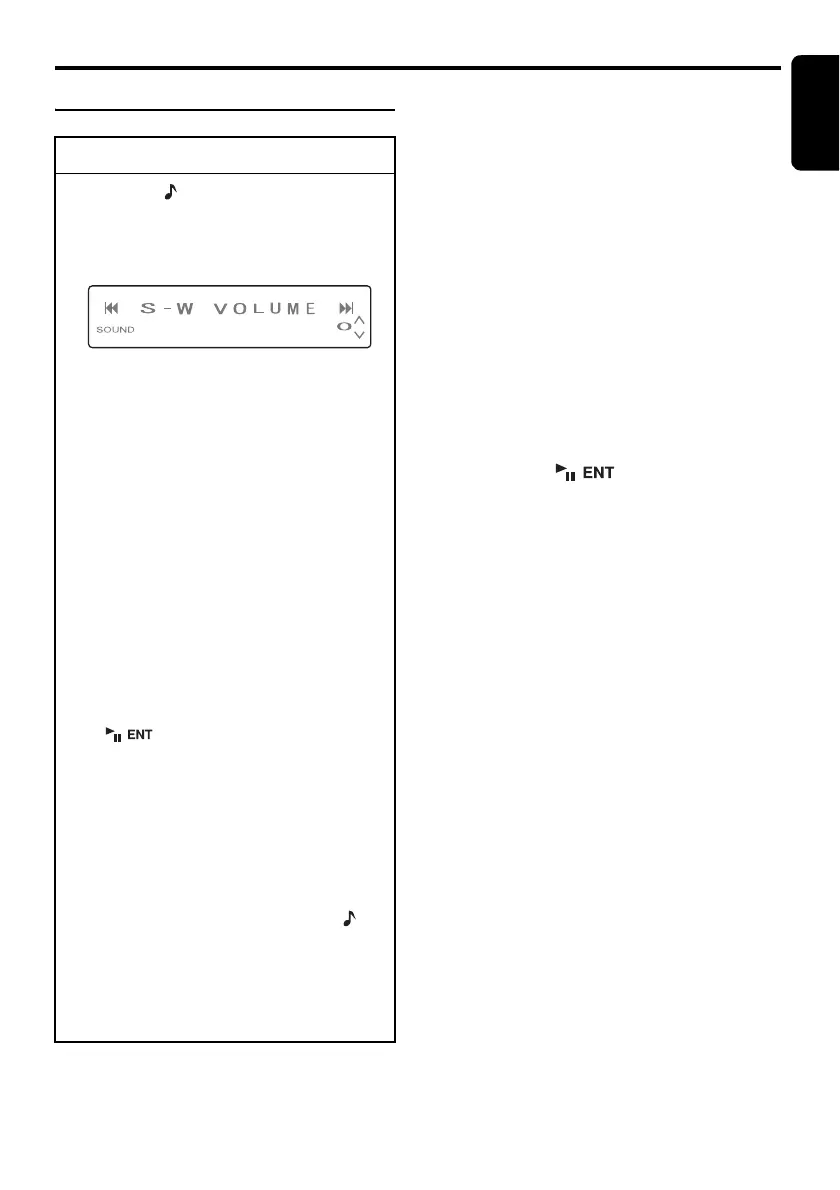

Basic Operations
English
15 DXZ785USB
Adjusting Sound Mode
● Adjusting the subwoofer output
volume
You can adjust the volume output from the unit’s
subwoofer output terminal.
“S-W VOLUME” can be adjusted only when
“SUB WOOFER” is set to “ST” or “MONO”
(page 22).
2-1. Select the “S-W VOLUME”.
3-1. Push the [P.CH] button upward or
downward to change the output volume.
∗ The factory default setting is “0”.
(Setting range: +6 to –6)
● Setting the Digital Z-Enhancer
This unit are provided with 3 types of sound tone
effects stored in memory. Select the one you
prefer.
∗ The factory default setting is “DZE OFF”.
2-1. Select the “DZE”.
3-1. Press the [ ] button.
3-2. Push the [SEEK PANEL] leftward or
rightward to select the tone effect. Each
time you push the [SEEK PANEL], the tone
effect changes in the following order:
“DZE OFF” ↔ “DZE 1” ↔ “DZE 2” ↔ “DZE
3”
DZE OFF : no sound effect
DZE 1 : Suitable for genuine speakers
DZE 2 : Suitable for separate
speakers
DZE 3 : Suitable for co-axial speakers
3-3. When the “DZE 1”, “DZE 2” or “DZE 3” is
set, push the [P.CH] button upward or
downward to change the DZE level from +3
to –3.
∗ The factory default setting is “0”.
To change sound mode
1. Press the [ ] button and select the sound
mode to adjust.
2. Push the [SEEK PANEL] leftward or
rightward to select the “item
name”.
When speaker system is “NORMAL”:
“S-W VOLUME” ↔ “DZE” ↔ “P.EQ” ↔
“BASS” ↔ “TREBLE” ↔ “S RESTORER”
↔ “HPF” ↔ “S-W LPF” ↔ “BALANCE” ↔
“FADER”
When speaker system is “3WAY”:
“S-W VOLUME” ↔ “DZE” ↔ “P.EQ” ↔
“BASS” ↔ “TREBLE” ↔ “S RESTORER”
↔ “BALANCE”
When speaker system is “2WAY”:
“DZE” ↔ “P.EQ” ↔ “BASS” ↔ “TREBLE”
↔
“S RESTORER” ↔ “BALANCE” ↔
“FADER”
3. Push the [P.CH] button upward or
downward to select the “desired setting
value”.
∗ In the case of item names appearing with
the “ENT” suffix after the item name, the
[] button must be pressed to display
the setting value.
∗ “P.EQ” can be adjusted only when the
“P.EQ ON/OFF” is set to “ON” (page 22)
and “EQ SELECT” is set to “P.EQ” (page
22).
∗ “BASS” and “TREBLE” can be adjusted
only when “DZE” is set to “DZE OFF” (page
15) and “EQ SELECT” is set to “B/T” (page
22).
∗ After completing settings, press the []
button to return to the previous mode.
Note:
• During sound adjustment mode, if no
operation is performed for more than 10
seconds, this mode can be canceled and
return to the previous mode.
