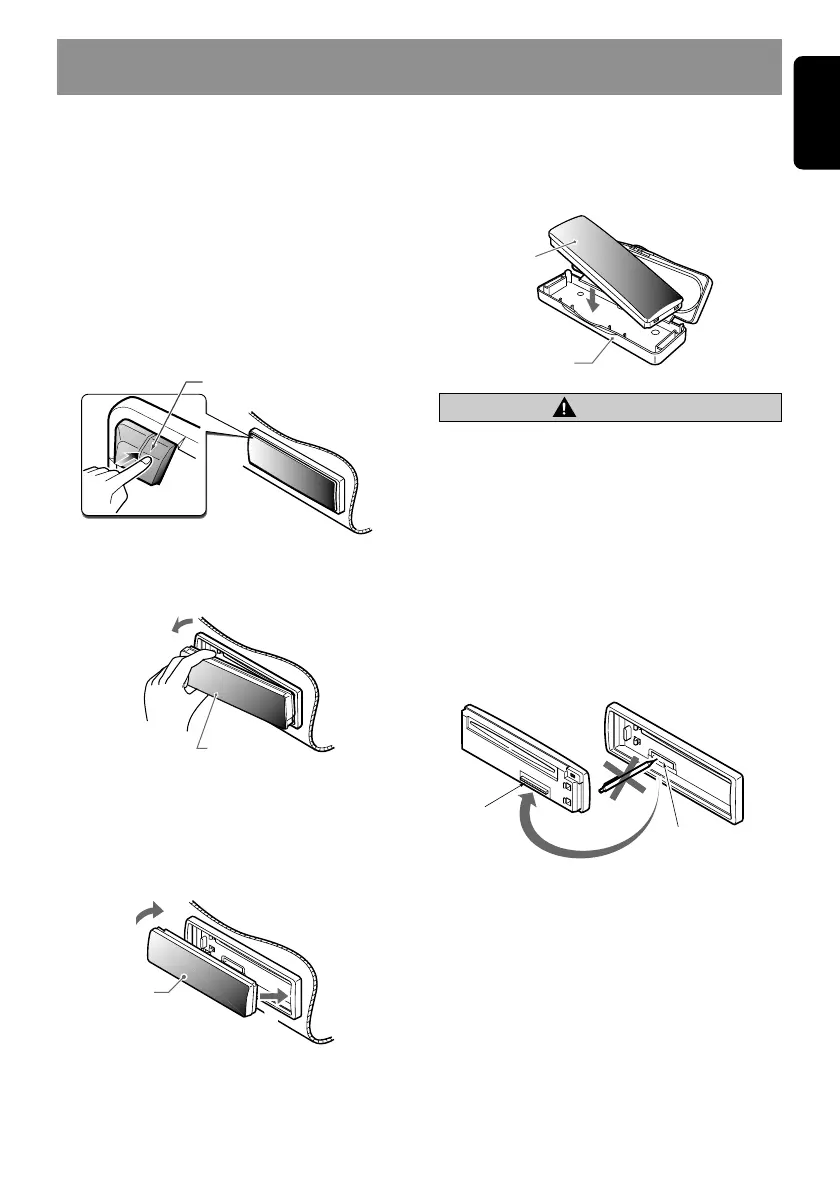

4. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (DETACHABLE CONTROL PANEL)
case to prevent scratches.
We recommend taking the DCP with you when
leaving the car.
Removing the DCP
1. Press the [FNC] button for 1 second or
longer to switch off the power.
2. Press in the [RELEASE] button.
[
RELEASE
]
button
∗ The DCP is unlocked
3. Remove the DCP.
DCP
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
DCP
2.
1.
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orienta-
tion.)
DCP
DCP case
• The DCP can easily be damaged by
shocks. After removing it, be careful not to
drop it or subject it to strong shocks.
• When the Release button is pressed and
the DCP is unlocked, the car’s vibrations
may cause it to fall. To prevent damage to
the DCP, always store it in its case after de-
taching it. (ee figure below.)
• The connector connecting the main unit
and the DCP is an extremely important
part. Be careful not to damage it by press-
ing on it with fingernails, screwdrivers, etc.
DCP Rear Panel Main Unit Front
Main unit connector
DCP
connector
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
CAUTION

Clarion Net DXZ638RMP Specifications

Radio Section

FM receiving frequency	87.5 to 108 MHz
MW receiving frequency	531 to 1602 kHz
LW receiving frequency	153 to 279 kHz

CD Player Section

frequency response	10 Hz to 20 kHz
signal to noise ratio	100 dB
dynamic range	95 dB

General Specifications

output power	4 ✕ 27 W
power supply voltage	14.4 V DC
power consumption	Less than 15 A

Weight and Dimensions

weight of main unit	1.3 kg
dimensions of main unit	178 (W) ✕ 50 (H) ✕ 157 (D) mm
speaker impedance	4 Ω
