- 5 -
PN-2121D
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION

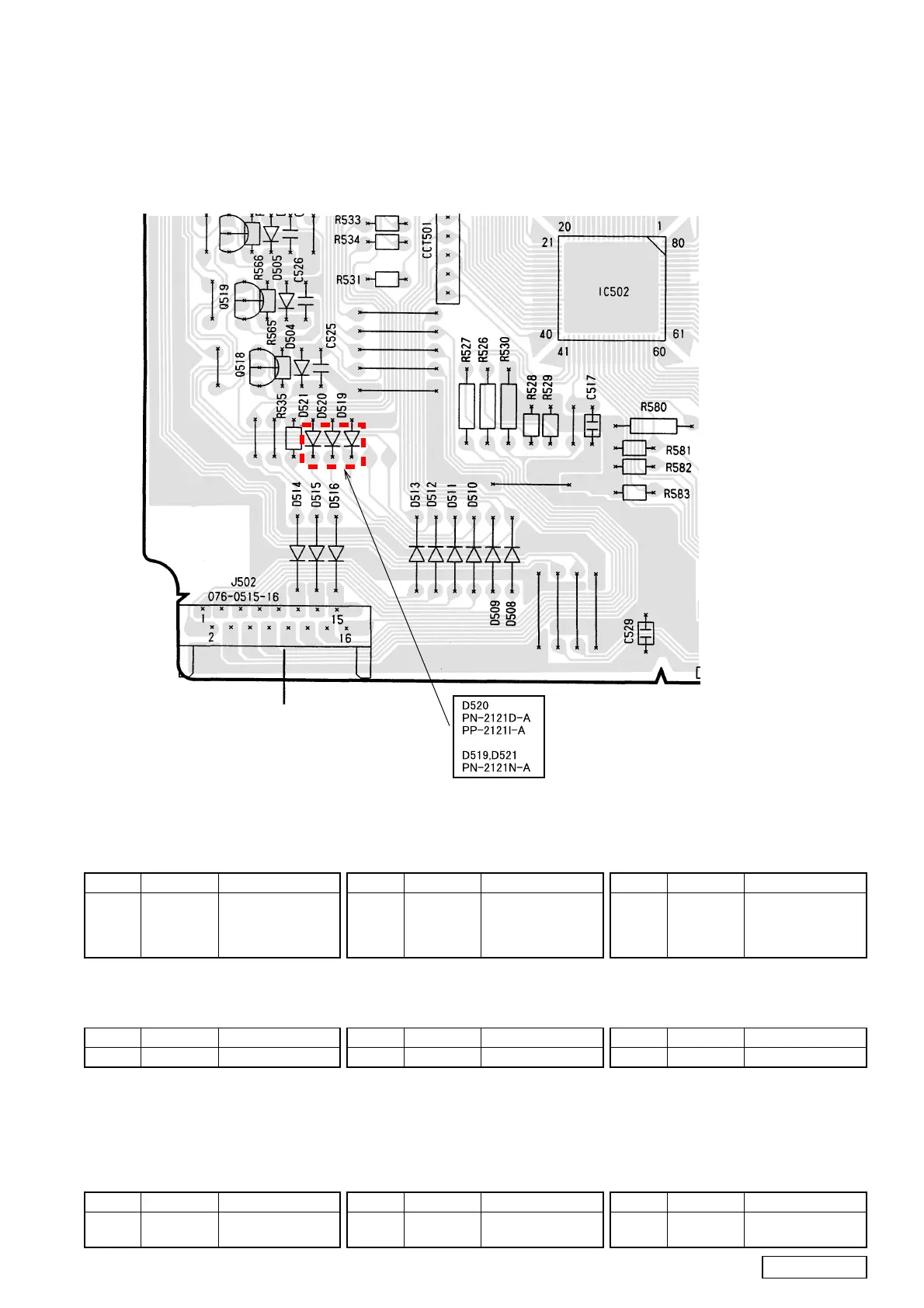

■ PRINTED WIRING BOARD
System control PWB section(D519,D520,D521 diode SW)
PN-2121D-A/PN-2121N-A/PP-2121I-A
■ PARTS LIST/PN-2121D-A
Main PWB section
C 114 184-4773-22 10V 470μF
R 154 117-4721-10 1/10W 4.7kΩ
R 157 117-4721-10 1/10W 4.7kΩ
R 226 117-5621-10 1/10W 5.6kΩ
R 227 117-5621-10 1/10W 5.6kΩ
R 228 117-2431-15 1/10W 24kΩ
R 229 117-2431-15 1/10W 24kΩ
R 230 117-5621-10 1/10W 5.6kΩ
R 231 117-5621-10 1/10W 5.6kΩ
R 232 117-2431-15 1/10W 24kΩ
R 233 117-2431-15 1/10W 24kΩ
System control PWB section
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
D 520 001-0330-00 1SS119 D 520 001-0352-00 1SS176 D 521 DELETE
■ PARTS LIST/PN-2121N-A
Main PWB section
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
C 114 184-4773-22 10V 470μF
C 157 176-1011-00 100pF
L 106 010-2174-16 22μH
R 180 117-1021-10 1/10W 1kΩ
R 181 117-1041-10 1/10W 100kΩ
TC 101 004-1580-09
Note)Several different parts of the same reference number are alternative parts.
One of those parts is used in the set.
Note)Several different parts of the same reference number are alternative parts.
One of those parts is used in the set.
To Next Page
