929-0390-81
- M8 -

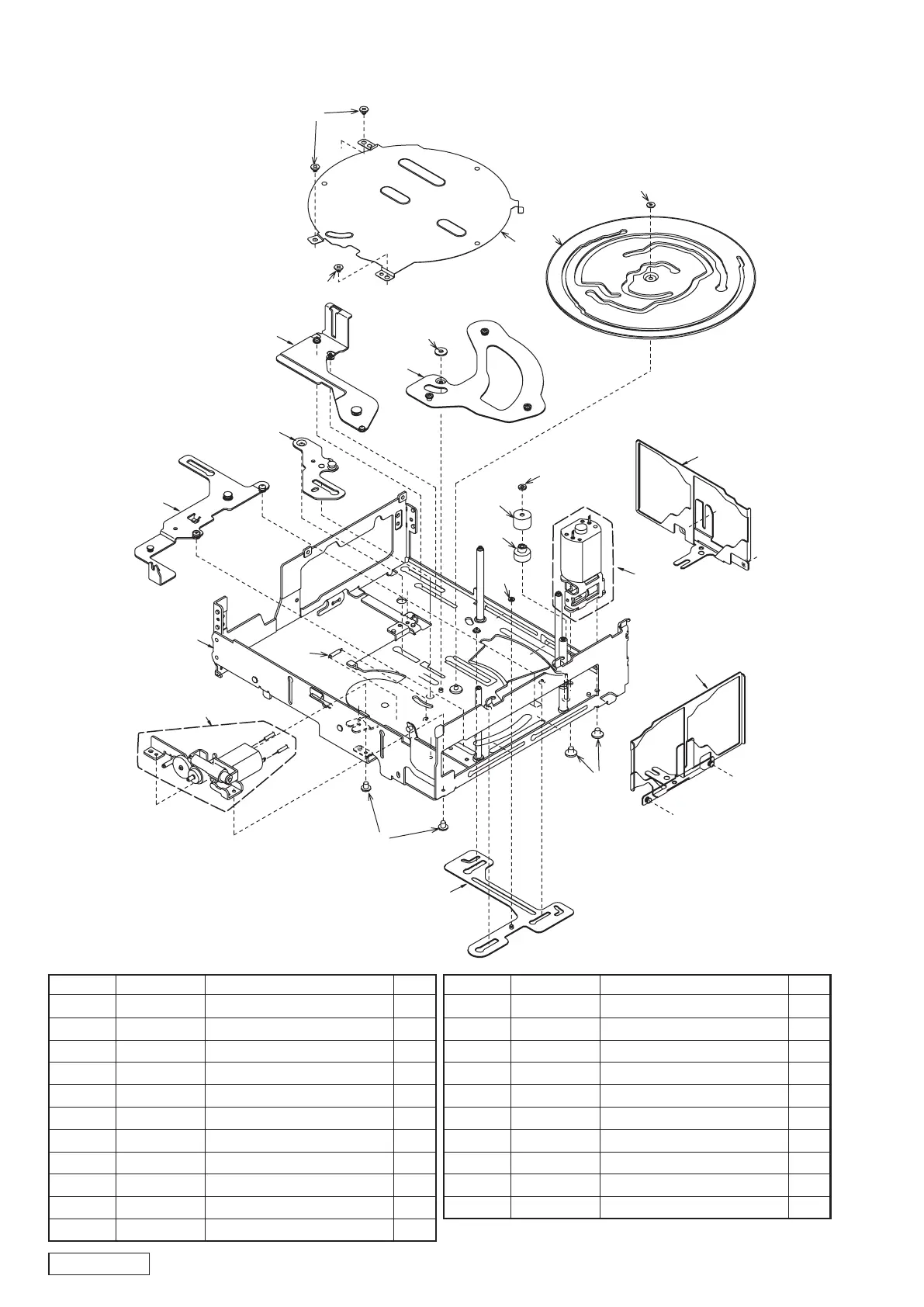

Lower unit assy section
A2
A3
A6
A1
A4
A5
A7
9
1
3
2
13
14
21
17
6
7
10
16
20
8
18
19
to A7
to A6
4
18
11
12
15
15
to A1
to A2
to A3
to
A4
to A5
5
1 966-1757-25 LOWER-C-ASSY 1
2 966-0658-22 DH-SP-ASSY A 1
3 966-1758-20 DS-SP-ASSY A 1
4 966-1808-20 DH-SP-ASSY S 1
5 966-1809-20 DH-SP-ASSY R 1
6 966-0677-23 D-SHT PL-B-ASSY 1
7 966-0659-22 DH-SP-ASSY B 1
8 966-0666-22 DS-SP-ASSY B 1
9 HBS-546-100 M-MTR SUB ASSY 1
10 HBS-568-100 UD-MOTOR-ASSY 1
11 620-1623-24 CAM GEAR 1
12 620-1624-24 GEAR COVER 1
13 621-0732-21 M-GEAR B 1
14 621-0733-20 M-GEAR C 1
15 716-1850-01 SCREW(M2.0x2.0) 3
16 716-3451-01 SCREW(M1.7x2.5) 2
17 746-0761-00 WASHER 1
18 746-0768-00 WASHER 2
19 750-6756-20 SW-L-SPRING 1
20 716-1851-03 SCREW(M2.0x3.0) 2
21 746-0941-00 WASHER 1
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
