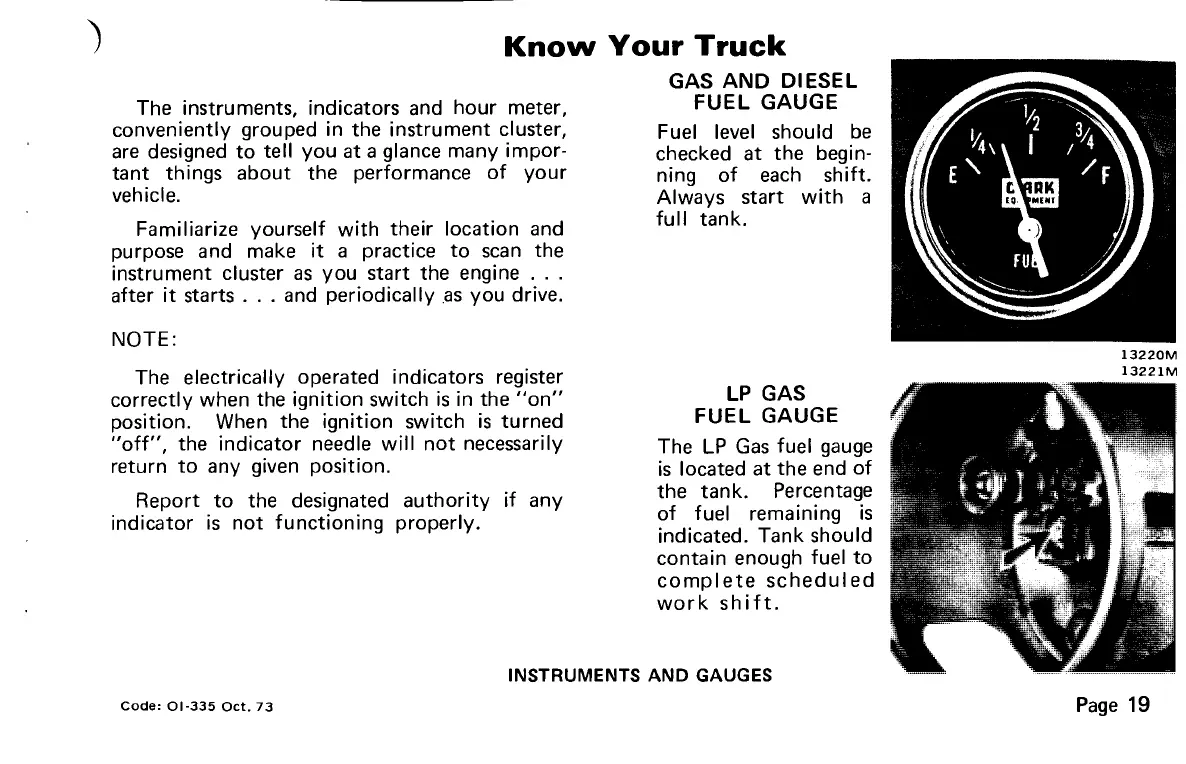

Know Your Truck
The instruments, indicators and hour meter,
conveniently grouped in the instrument cluster,
are designed to tell you at a glance many impor-
tant things about the performance of your
vehicle.
Familiarize yourself with their location and
purpose and make it a practice to scan the
instrument cluster as you start the engine . . .
after it starts . . . and periodically as you drive.
NOTE:
The electrically operated indicators register
correctly when the ignition switch is in the "on"
position. When the ignition switch is turned
"off", the indicator needle will not necessarily
return to any given position.
Report to the designated authority if any
indicator is not functioning properly.
GAS AND DIESEL
FUEL GAUGE
Fuel level should be
checked at the begin-
ning of each shift.
Always start with a
full tank.
LP GAS
FUEL GAUGE
The LP Gas fuel gauge
is located at the end of
the tank. Percentage
of fuel remaining is
indicated. Tank should
contain enough fuel to
complete scheduled
work shift.
INSTRUMENTS AND GAUGES
