Clark C50sD - Instrument Pod

3-4 Instrument Pod
Instrument Pod
SYSTEM CHECK
29MAR06[WED]
OP A2
1
2
3
4
5
67
8
9
10
11
12
13
14
15 16 17 18 19
20
H
C
(C40-80)

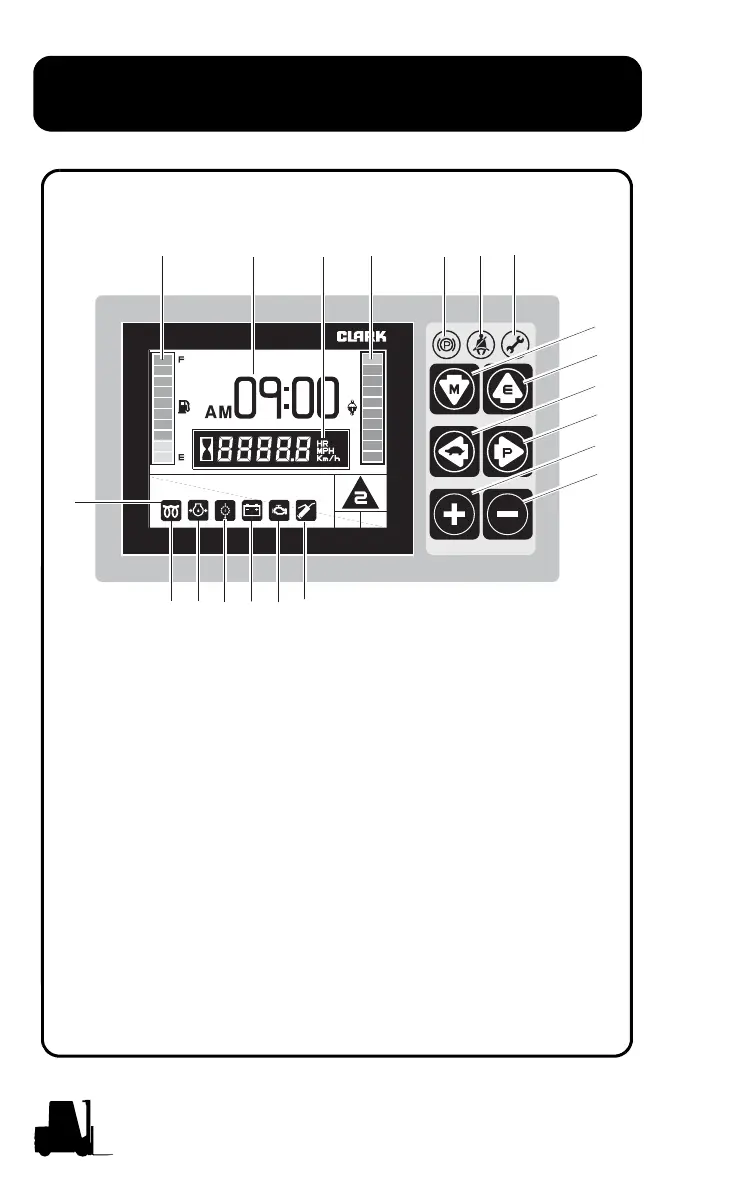

1. Fuel level Indication
2. Engine coolant tempera-
ture indicator
3. Date & Time display
4. Hourmeter & Speed
5. Message display & Travel
direction icon
6. Parking brake LED
7. Seat belt LED
8. Error LED
9. Down arrow button
(Mode button)
10. Up arrow button
(Enter button)
11. Left arrow button
12. Right arrow button
(Power button)
13. Plus button
14. Minus button
15. Glow Plug Preheat
16. Engine Oil Pressure
17. Transmission Oil
Temperature
18. Alternator Charging Status
19. Engine check
20. Service Icon
