Clark GCS 25 - Page 27

Planned Maintenance and Lubrication
Brake Master Cylinder Fluid Level
Check
Standard Model w/HRSOO Transaxle
1. Remove floorboards
2. Check brake fluid level on standard
trucks by opening inspection/fill plug on
brake master cylinder top.
IMPORTANT
WITH STANDARD MODEL SERVICE
BRAKE SYSTEMS, USE SAE
AUTOMOTIVE HYDRAULIC BRAKE
FLU ID ONLY. D.O.T3

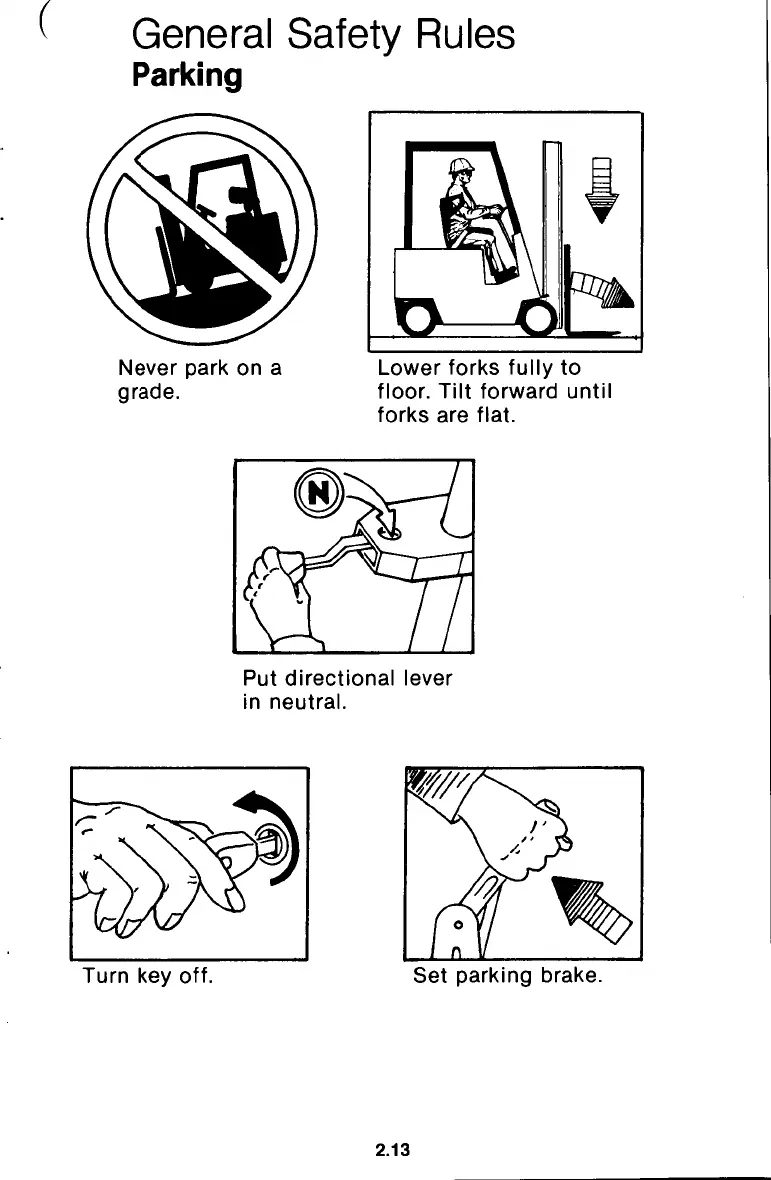

General Safety Rules
Parking
B4M399
Never park on a
grade.
3. Replace floorboards.
IMPORTANT
HR600 Transaxle
DO NOT OPEN MASTER CYLINDER TO CHECK FLUID LEVEL. DO NOT PUT
STANDARD SAE AUTOMOTIVE BRAKE FLUID IN THIS SYSTEM.
NOTICE
HR600 Transaxle
Service brake system on these models uses transaxle fluid. Brake master
cylinder fluid level is supplied (replenished) automatically.
NOTICE
TA18 Transaxle
Has reservoir on dash for D.O.T. 3 brake fluid.
Lower forks fully to
floor. Tilt forward until
forks are flat.
Put directional lever
in neutral.
Turn key off.
Set parking brake.
8.8
2.13
