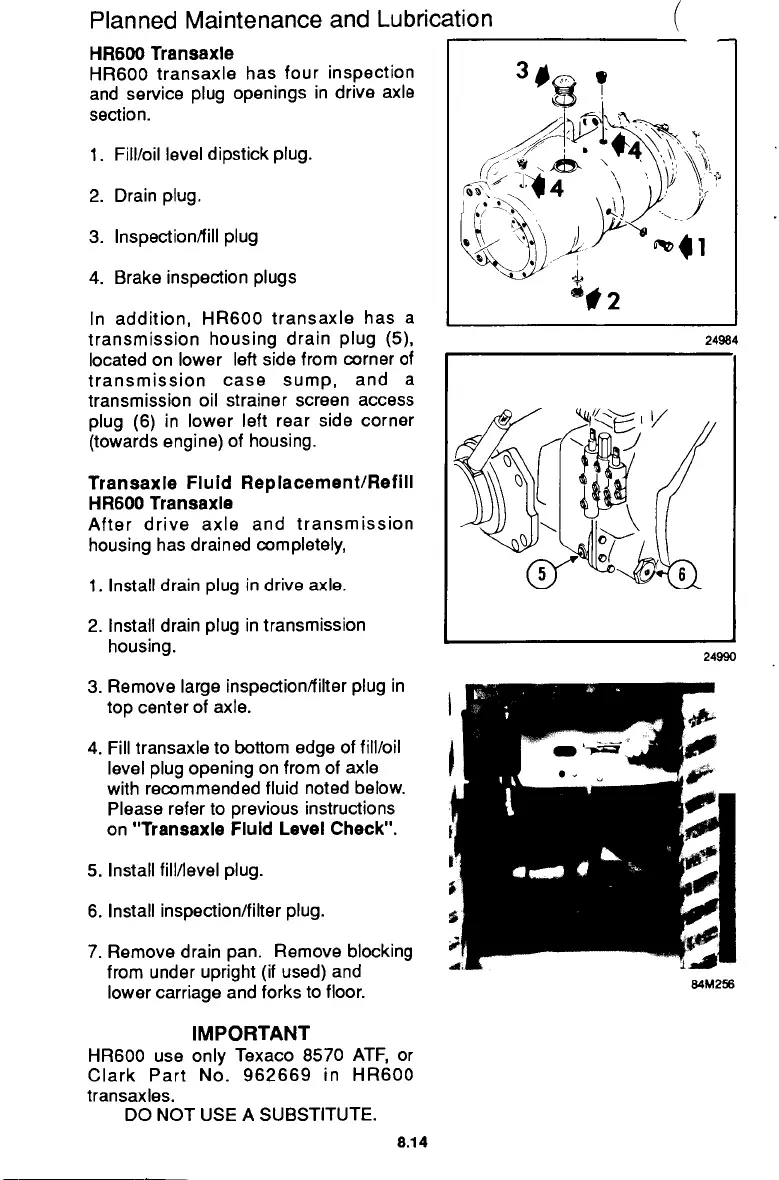

Planned
Maintenance
and
Lubrication
HR600 Transaxle
HR600 transaxle
has
four
inspection
and
service plug openings
in
drive axle
section.
1.
Fill/oil
level dipstick plug.
2.
Drain plug.
3.
Inspection/fill
plug
4.
Brake inspection plugs
In
addition,
HR600 transaxle
has a
transmission housing drain plug (5),
located
on
lower
left
side
from
corner
of
transmission case sump,
and a
transmission
oil
strainer screen access
plug
(6) in
lower left rear side corner
(towards
engine)
of
housing.
Transaxle
Fluid
Replacement/Refill
HR600 Transaxle
After
drive axle
and
transmission
housing
has
drained completely,
1.
Install drain plug
in
drive axle.
2.
Install
drain plug
in
transmission
housing.
3.
Remove large
inspection/filter
plug
in
top
center
of
axle.
4.
Fill
transaxle
to
bottom
edge
of
fill/oil
level plug opening
on
from
of
axle
with recommended fluid noted below.
Please
refer
to
previous instructions
on
"Transaxle Fluid Level Check".
5.
Install fill/level plug.
6.
Install inspection/filter plug.
7.
Remove drain pan. Remove blocking
from
under upright
(if
used)
and
lower
carriage
and
forks
to
floor.
IMPORTANT
HR600
use
only Texaco 8570 ATF,
or
Clark Part
No.
962669
in
HR600
transaxles.
DO NOT USE A
SUBSTITUTE.
8.14
24984
24990
84M256
General
Safety Rules
Travel
Carry loads
low
and
tilted
back.
If
load blocks your
view, travel
in
reverse.
Never turn
on a
grade.
