j Specifications

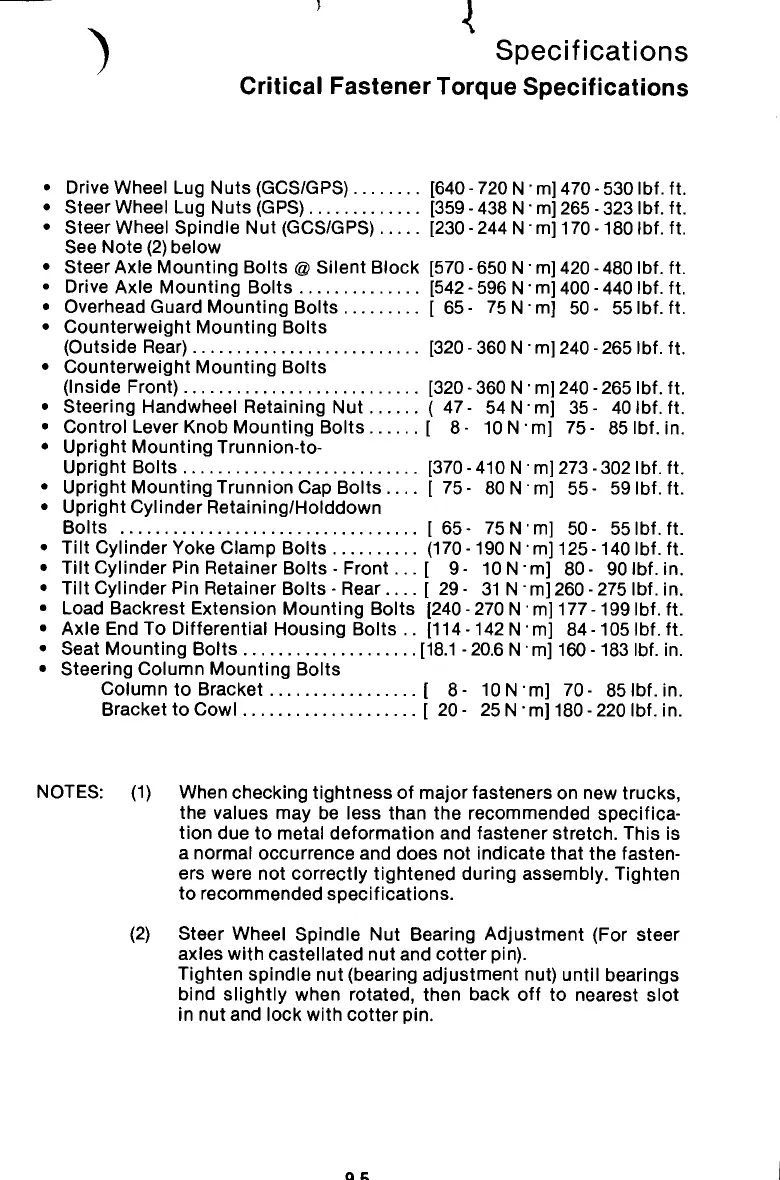

Critical Fastener Torque Specifications
• Drive Wheel Lug Nuts (GCS/GPS) [640 - 720 N • m] 470 - 530 Ibf. ft.
• Steer Wheel Lug Nuts (GPS) [359 - 438 N • m] 265 - 323 Ibf. ft.
• Steer Wheel Spindle Nut (GCS/GPS) [230-244 NTTI] 170-180 Ibf. ft.
See Note (2) below
• Steer Axle Mounting Bolts @ Silent Block [570 - 650 N • m] 420 - 480 Ibf. ft.
• Drive Axle Mounting Bolts [542 - 596 N • m] 400 - 440 Ibf. ft.
• Overhead Guard Mounting Bolts [65- 75 NTTI] 50- 55 Ibf. ft.
• Counterweight Mounting Bolts
(Outside Rear) [320 - 360 N • m] 240 - 265 Ibf. ft.
• Counterweight Mounting Bolts
(Inside Front) [320 - 360 N • m] 240 - 265 Ibf. ft.
• Steering Handwheel Retaining Nut (47- 54 NTTI] 35- 40 Ibf. ft.
• Control Lever Knob Mounting Bolts [ 8- 10NTTI] 75- 85 Ibf. in.
• Upright Mounting Trunnion-to-
Upright Bolts [370 - 410 N • m] 273 - 302 Ibf. ft.
• Upright Mounting Trunnion Cap Bolts [75- 80 NTH] 55- 59 Ibf. ft.
• Upright Cylinder Retaining/Holddown
Bolts [ 65- 75 NTTI] 50- 55 Ibf. ft.
• Tilt Cylinder Yoke Clamp Bolts (170-190 N Tn] 125 -140 Ibf. ft.
• Tilt Cylinder Pin Retainer Bolts-Front...[ 9- 10N'm] 80- 90 Ibf. in.
• Tilt Cylinder Pin Retainer Bolts - Rear.... [ 29 - 31 N • m] 260 - 275 Ibf. in.
• Load Backrest Extension Mounting Bolts [240-270 N TTI] 177-199 Ibf. ft.
• Axle End To Differential Housing Bolts .. [114-142 N-m] 84-105lbf.ft.
• Seat Mounting Bolts [18.1 - 20.6 N • m] 160 -183 Ibf. in.
• Steering Column Mounting Bolts
Column to Bracket [ 8- 10 NTTI] 70- 85 Ibf. in.
Bracket to Cowl [ 20 - 25 N • m] 180 - 220 Ibf. in.
NOTES: (1) When checking tightness of major fasteners on new trucks,
the values may be less than the recommended specifica-
tion due to metal deformation and fastener stretch. This is
a normal occurrence and does not indicate that the fasten-
ers were not correctly tightened during assembly. Tighten
to recommended specifications.
(2) Steer Wheel Spindle Nut Bearing Adjustment (For steer
axles with castellated nut and cotter pin).
Tighten spindle nut (bearing adjustment nut) until bearings
bind slightly when rotated, then back off to nearest slot
in nut and lock with cotter pin.
9.5
