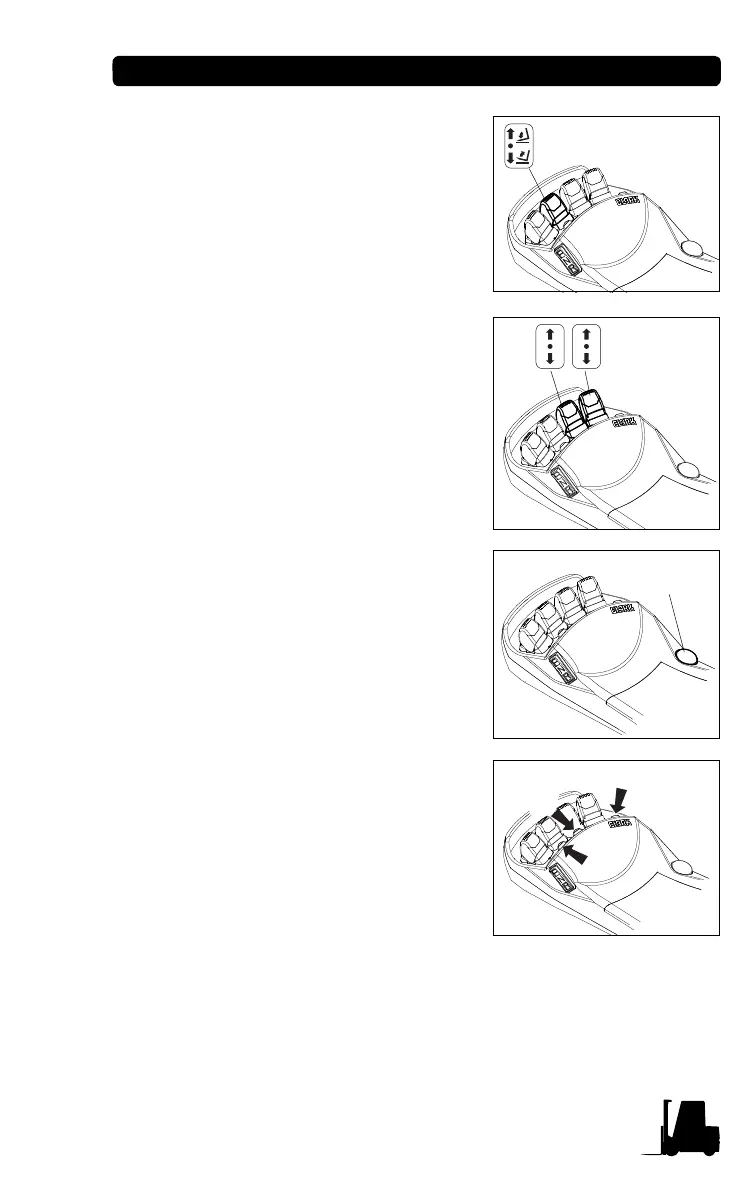

Operator Controls 3-47
Section 3. Operator Compartment and Controls
3) Tilt Lever
Tilt the mast forward and backward.
Forward : Push forward
Backward : Pull backward
Forward or backward tilting speed
can be adjusted by the extent of
operating the lever.
4) Attachment Lever
Operates the attachment.
Attachment speed can be adjusted
by the extent of operating the lever.
5) Emergency Disconnect
Activating this will disable all hydraulic
functions. It must be pulled out to
reset and re-enable hydraulic functions.
6) Attachment Button (optional)
• Vertical Mast (1)
When pressing this button once,
and operating the tilt lever, the
mast stands perpendicular.
• Clamp lever lock (2)
When pressing this button once,
the clamp lever is locked two sec-
onds later. Pressing the button
again release the lever.
7) Horn Button (3)
Emergency
Disconnect
