PREPARATION FOR USE
Accessories designed specifically for this range of pumps are available from
your nearest CLARKE dealer. Contact your CLARKE dealer for further
information, or CLARKE International Sales Department on 01992 565333.
IMPORTANT: The pump MUST NOT be connected to the mains electrical supply
until all hose/pipe installation is completed.
CONNECTING THE INLET FILTER (FIG 1)
1. Screw the male inlet
connector into the pump
inlet port and tighten by
hand.
2. Screw the inlet filter onto the
inlet connector and tighten
by hand. Do not
overtighten.
• Ensure the moulded arrow
in the filter body which
indicates the direction of
flow, is pointing towards
the pump and that the
bowl is hanging vertically
down.
3. Screw a non-return valve to the inlet filter, ensuring it is the right way round,
ie, with the spring-loaded valve able to pass water into the filter. Do not
overtighten.
POSITIONING THE PUMP
A typical installation of the pump is shown in Fig 1. An air-tight seal is essential
when connecting the suction and discharge hoses to the pump.
• Ensure there is no damage to the hoses which must be well
protected and well supported.
• The pump must always be installed and operated in a horizontal
position i.e. with the outlet port facing vertically upwards.
• The fixing holes in the feet should be used to secure the pump firmly
in its operating position.
• Always ensure there is adequate air circulation around the pump
motor.
• Avoid situations where the pump could become drenched with
water. Neither the motor or terminal box are designed to be
waterproof.

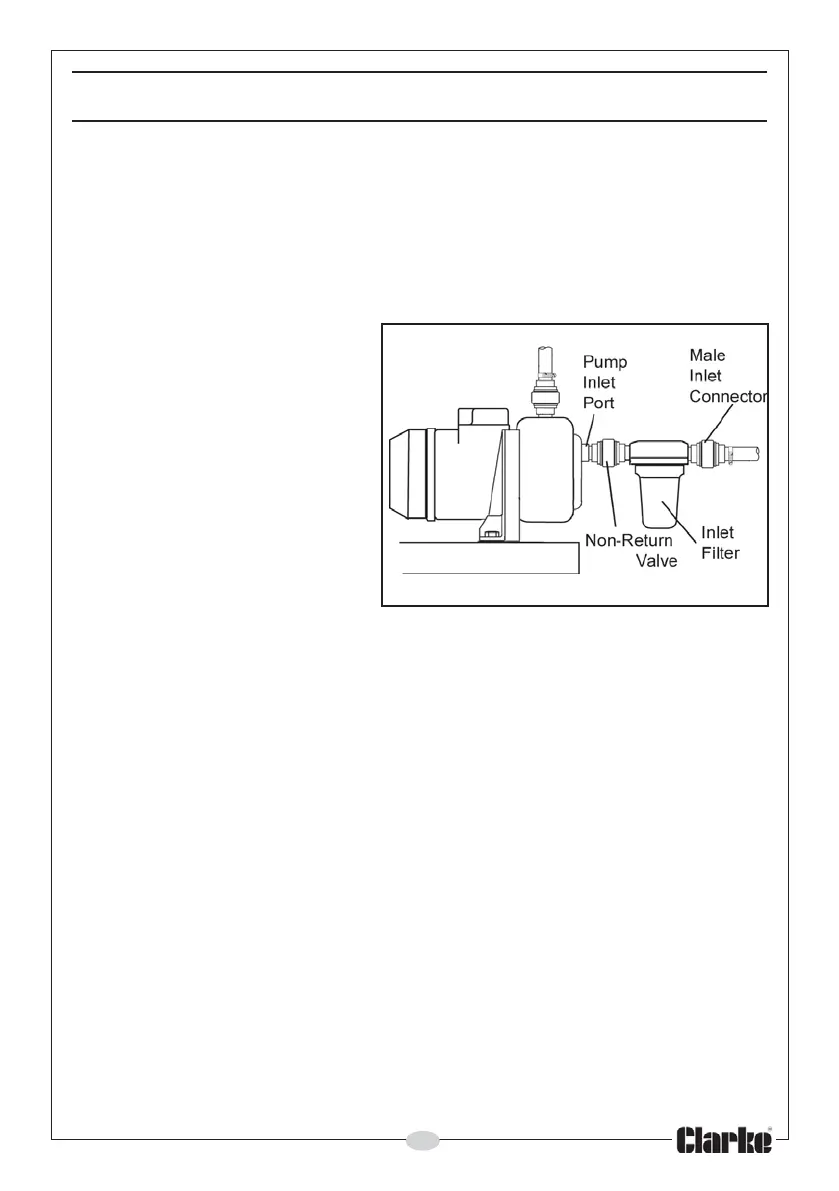

Fig. 1
