PARTS LIST

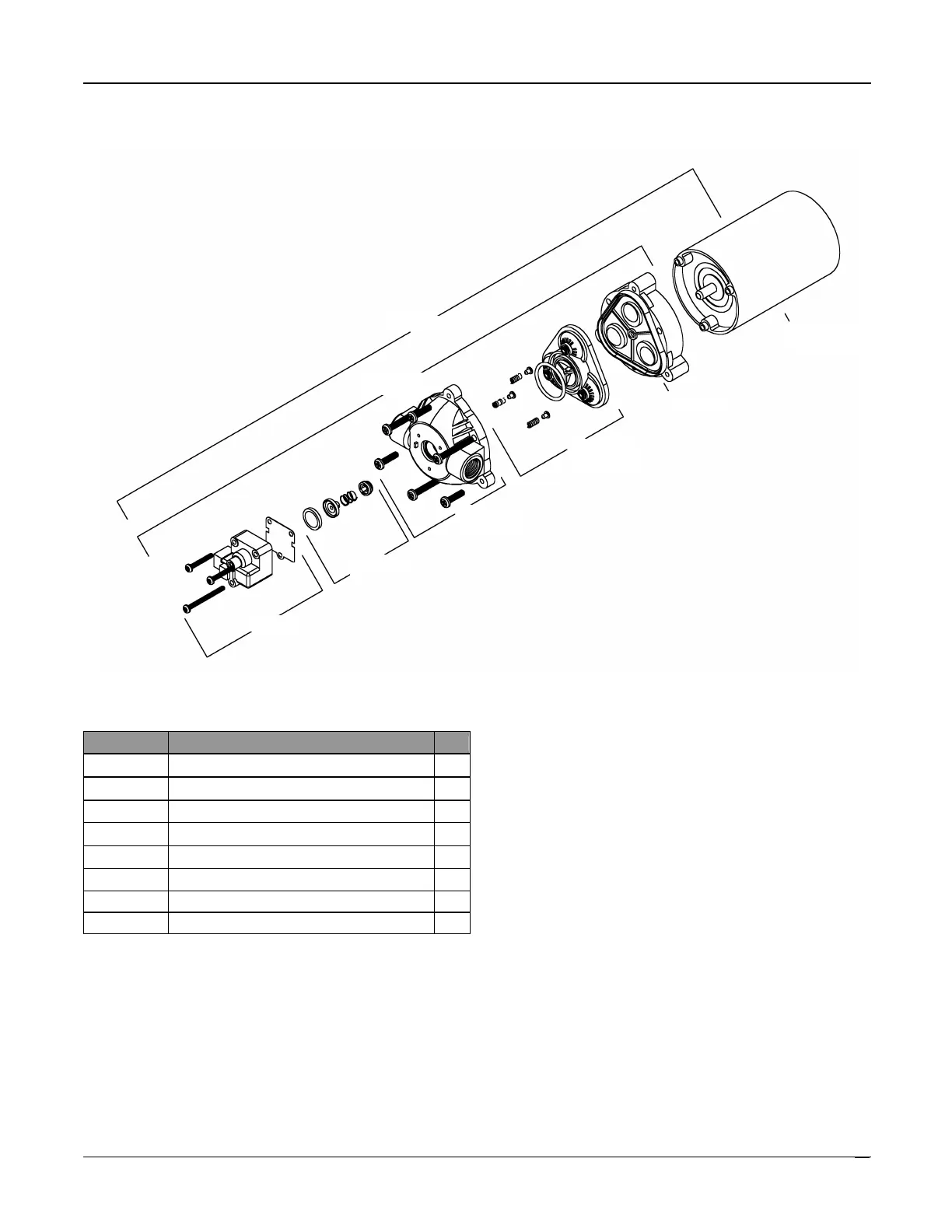

PUMP 150 PSI BREAKDOWN
PART # DESCRIPTION QTY.
SL-23.7
• PUMP SH FL 150 PSI 110V
1
N/A PUMP HEAD 150 PSI COMP ASM 1
L-23.76
• SWITCH ASM, 150 PSI SH FL
1
L-22.65
• CHECK VALVE ASM, 100 PSI SH FL
1
L-24.12 HEAD, PUMP DIAPHRAGM 1
L-23.74
• BYPASS VALVE ASM, 150 PSI SH FL
1
L-23.9
DIAPHRAGM, SOLID DRIVE ASM 150PSI
1
SL-23.75
MOTOR,150 PSI 120V SH FL PLG
1
• RECOMMENDED STOCK ITEMS
SL
-
23.7
N/A
L-23.9
SL-23.75
L
-
23.76
L-22.65
L-24.12
L-23.74
