OPERATION

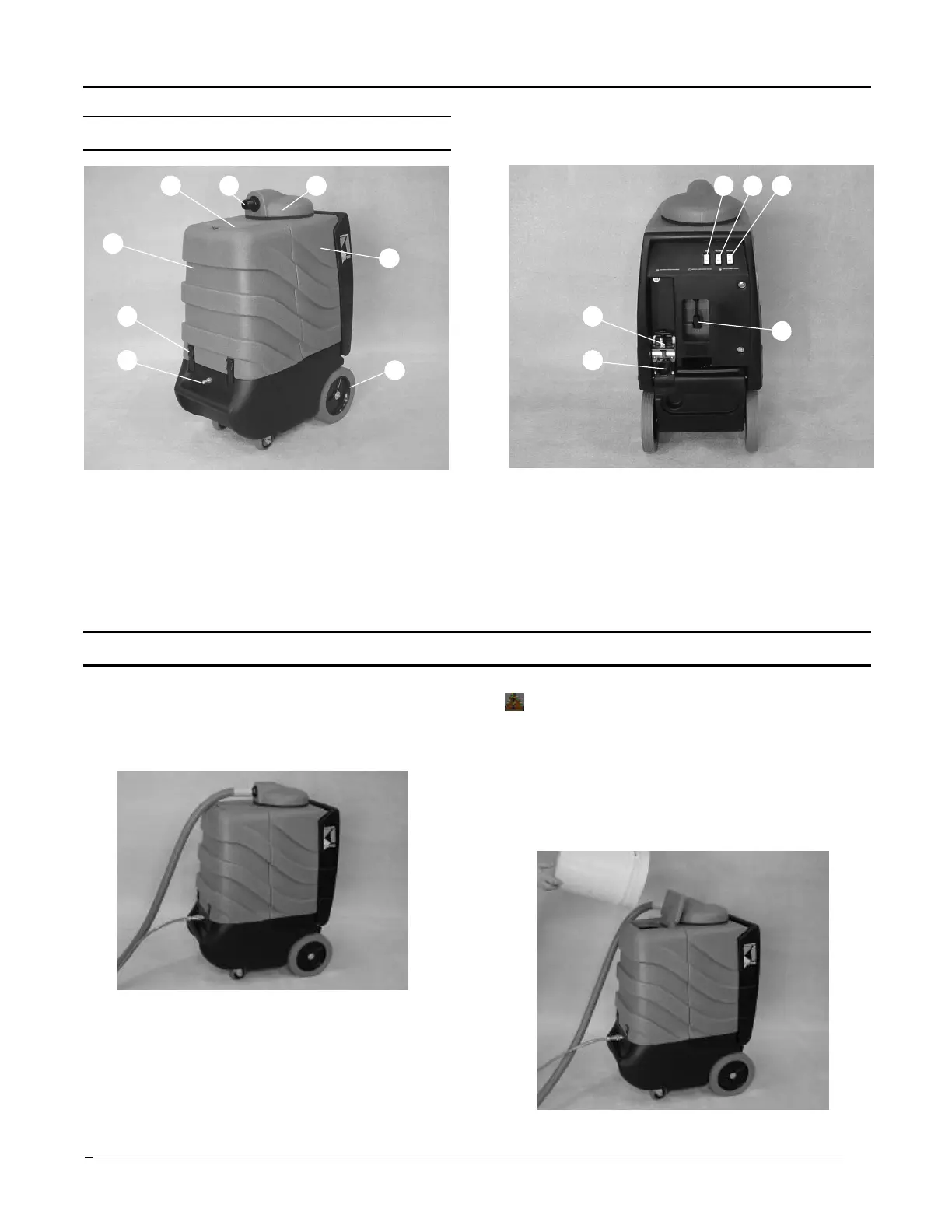

MACHINE COMPONENTS
Recovery Tank
Solution Tank
Recovery Tank Lid
Solution Tank Lid
Vacuum Switch
Pump Switch
Vacuum Switch
10” Non Marking Wheels
Power Cord Connector
Empty-Out Nozzle
Vacuum Hose Connector
Latches
Recovery Tank Drain
Solution Hose Connector
MACHINE SETUP
1. Carefully check carton for signs of damage.
Report damages at once to carrier. The machine
is shipped fully assembled and is ready for use.
2. Connect hoses and tool to be used (Figure1).
3. Using a clean bucket or hose, fill solution tank
with 41 liters (11 gallons) of hot water, 60° C
(140° F) maximum (Figure 2).
WARNING: Flammable materials can cause an
explosion or fire. Do not use flammable materials
in tank(s).
4. Add a recommended cleaning chemical.
FOR SAFETY: When using machine, follow
mixing and handling instructions on chemical
containers.
