CB780E/CB784E RELAY MODULES WITH VALVE PROVING
750-234 31 32-00150—03

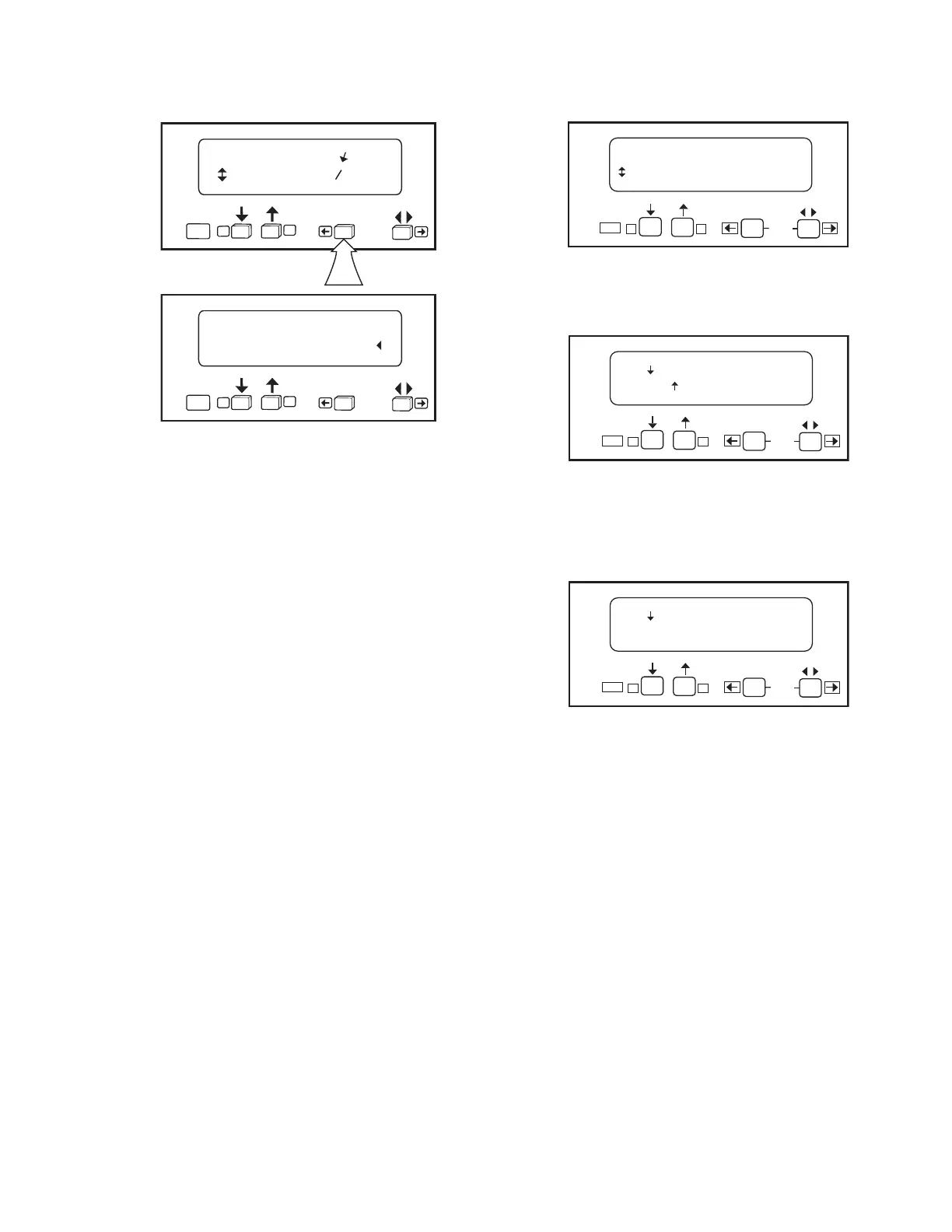

Fig. 43. BACK push-button function.
4. SAVE push-button. See Fig. 44–46.
a. This push-button enables users to identify the
selectable second line message they want to view
upon power restoration (for example, to see
“Total Cycles” instead of “Flame Signal). The sec-
ond line selectable message is restored to the
most recently saved selection when power
returns.
b. Press the down-up (
o) arrows until the desired
second line is displayed. Press the ENTER func-
tion.
Fig. 44. SAVE Function.
c. The following Display will appear
Fig. 45. Save Display/Exit screen.
d. Press the
$push-button to save the desired sec-
ond line. Press the
# push-button to exit without
changing the second line.
Fig. 46. Save Display...Saving screen.
The second line of the display is now changed to the new
selected message.
LOCKOUT 17 DI
Main Valve T9 = 0
M23976A
EDIT:
BACK
- ENTER -
_
+
LOCKOUT 17
*Main Flame Fail*
EDIT:
BACK
- ENTER -
_
+
STANDBY
Total Cycles nnn
M24043A
BACK
ENTER
Edit:
-+
– Save Display
– Exit
M22874A
BACK
ENTER
Edit:
-+
– Save Display
. . . Saving . . .
M22875A
BACK
ENTER
Edit:
-+
