55 SUCTION BLAST CABINET Page 37
© 2019 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com Manual No. 23350, Rev G, 02/19
9.12 600 CFM Modular Reclaimer Replacement
Parts – Figure 42
Refer to Figure 41 for 300 cfm reclaimer replacement
parts.
Item Description Stock No.
(-) 600 cfm reclaimer with 6" outlet plate ....... 29506
(-) 600 cfm reclaimer w/external adj. vortex ..... 29500
1. Gasket, 1/8" x 2" adhesive backed, per foot
6 feet required at each location ............. 13089
2. Screen assembly, 8-mesh ........................ 21265
3. Gasket, reclaimer door .............................. 11745
4. Inlet-pipe adaptor, 5" - 600 cfm ................. 12361
5. Gasket, inlet adaptor
current modular and all unlined models .. 11779
600 rubber-lined recl prior to 09/2018 ... 29631
6. Wear plate, rubber-lined
w/mounting screws ................................ 29542
7. Top plate, 600 cfm modular w/6" pipe ........ 29538
8. Latch assembly, door ................................ 12263
9. Door assembly, w/gasket and latch ........... 14271
10. Hopper, 600 cfm modular suction ............. 21650
11. Eyebolt 3/8-NC .......................................... 00430
12. U-channel, 3/8, 1-foot required ................. 04076
13. Baffle, 600 modular ................................... 29524
14. Body section, modular, with door,
wear plate, and baffle ............................ 29486
15. Body section, modular, with door,
rubber liners, and Item 26 top plate ....... 29495
16. Gasket, 1/8" x 2" adhesive-backed, per foot,
1 foot required at this location ............... 13089
17. Bracket, modular reclaimer mount, each .... 29529
*18. Bracket, reclaimer mount, each
for BNP-65 ............................................. 12766
for BNP-220 ........................................... 12782
*19. Metering valve assembly, BNP ................. 12417
*20. Hose, 5" ID light-lined flex, per foot,
9 feet required ........................................ 12467
*21. Clamp, 5-1/2", for 5" ID hose .................... 11578
*22. Hose, 6" ID unlined flex, per foot,
specify length required .......................... 12452
*23. Clamp, hose, 6-1/2", for 6" ID hose ........... 00750
**24. Gasket, 5/16" x 1" adhesive-backed,
per foot, 4 ft. required ................................. 00187
**25. Vortex cylinder, pull thru 600 modular ...... 29510
**26. Top plate, modular w/exhaust /flange ....... 29487

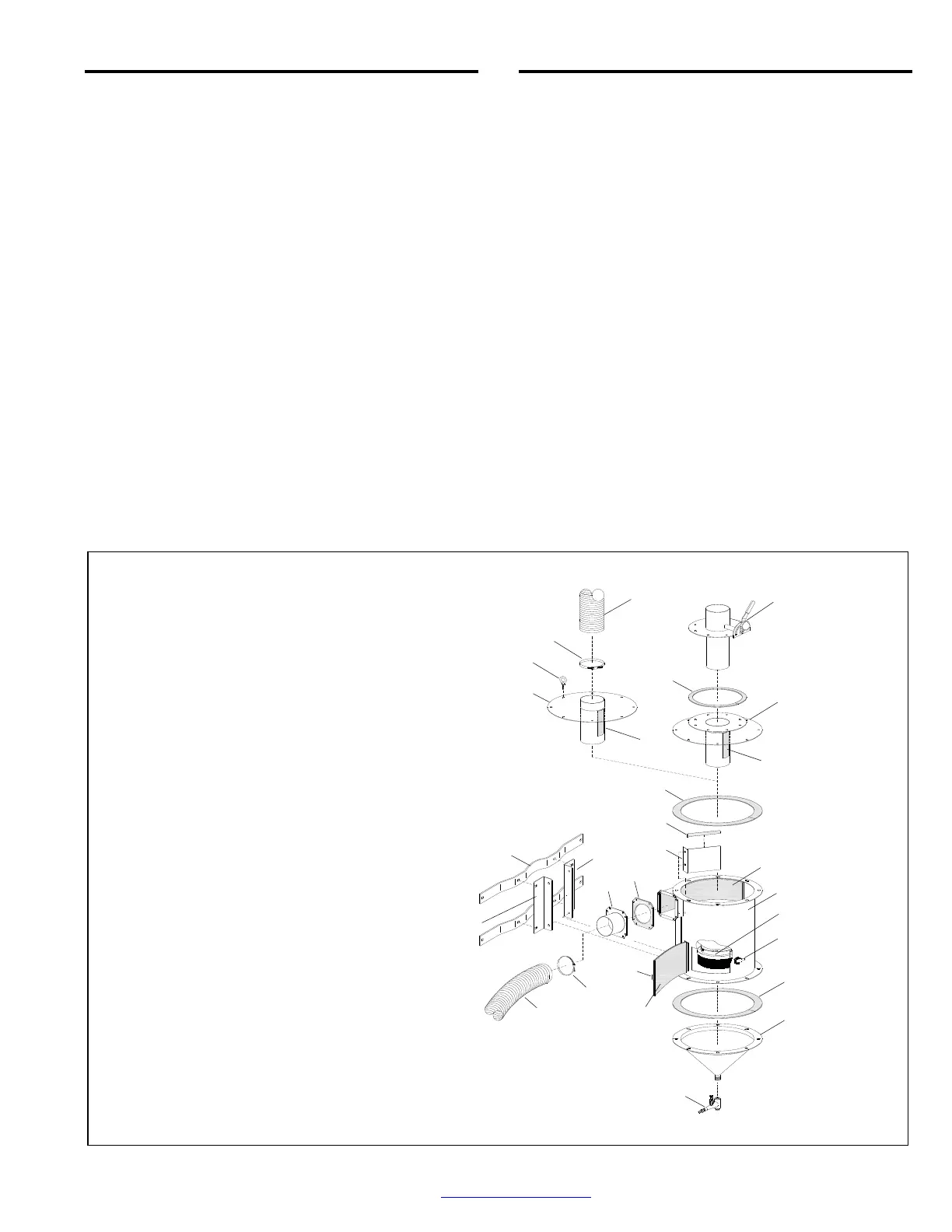

Figure 42
600 CFM MODULAR RECLAIMER
* Items marked with an asterisk * are not
included with replacement reclaimers.
If those items are needed, they must
be ordered separately.
** The vortex cylinder is optional
with cabinets provided with a
CDC-1 Dust Collector, but
standard on cabinets provided
with an RPC-2 Dust Collector.
Some items rotated for clarity.
*21
16
9
14, 15
8
*20
**24
1
2
6
7
10
*18
11
**25
17
*19
1
12
13
5
4
**16
17
3
**26
*23
*22
