9.10 Replacement Reclaimer Assemblies
Replacement reclaimers are pull-thru type for use with
reverse-pulse dust collectors; they include the hose
inlet, screen, and wear plate. They do not include
metering valve flex hoses, hose clamps, or mounting
brackets. Order separately when needed.
Description Stock No.
300 cfm reclaimer with 5" outlet plate ..................... 28965
600 cfm reclaimer with 6" outlet plate .................... 29506
600 cfm reclaimer w/external adjustable vortex ...... 29500
The externally adjustable vortex cylinder is an option
when cabinets are provided with CDC-1 Dust Collector;
it is standard when cabinets are provided with an RPC-
2.
9.11 300 CFM Reclaimer Replacement Parts

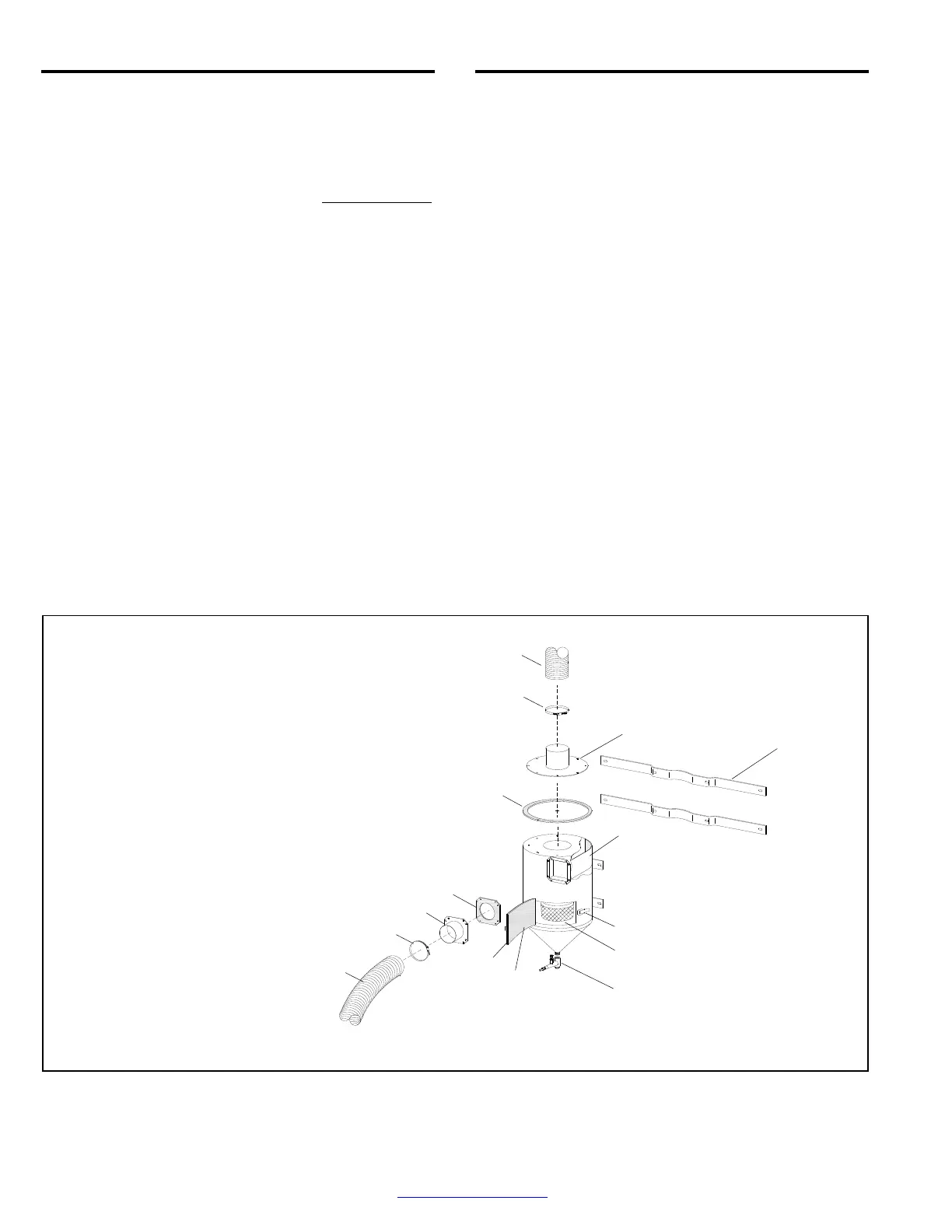

Figure 41
Refer to Figure 42 for 600 cfm reclaimer replacement
parts.
Item Description Stock No.
(-) 300 cfm reclaimer with 5" outlet plate ....... 28965
1. Gasket, 5/16" x 1" adhesive-backed,
per foot, 3 ft required .............................. 00187
2. Screen assembly, 8-mesh ........................ 21265
3. Gasket, reclaimer door .............................. 11745
4. Inlet pipe adaptor, 4"- 300 cfm .................. 12365
5. Gasket, inlet adaptor, 4" - 300 cfm ........... 11746
6. Wear plate, rubber-lined
with mounting screws ............................ 14060
7. Outlet plate with 5" pipe - 300 cfm ........... 18475
8. Latch assembly, door ............................... 12263
9. Door assembly, w/gasket and latch ......... 14271
*10. Clamp, hose, 4-1/2", for 4" ID hose ......... 11577
*11. Hose, 4" ID light-lined flex, per foot,
7 feet required ....................................... 12466
*12. Hose, 5" ID unlined flex, per foot,
specify length required .......................... 12449
*13. Clamp, hose, 5-1/2", for 5" ID hose ......... 11578
*14. Bracket, reclaimer mount, each
for BNP-55 ............................................ 12847
*15. Metering valve assembly, BNP ................ 12417
Figure 41
* Items marked with an asterisk *
are not included with replacement
reclaimers. If those items are
needed, they must be ordered
separately.
Some items rotated for clarity.
300 CFM RECLAIMER
9
3
*12
*14
4
5
1
7
2
*15
*10
6
*11
8
*13
