55 SUCTION BLAST CABINET Page 35
© 2019 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com Manual No. 23350, Rev G, 02/19

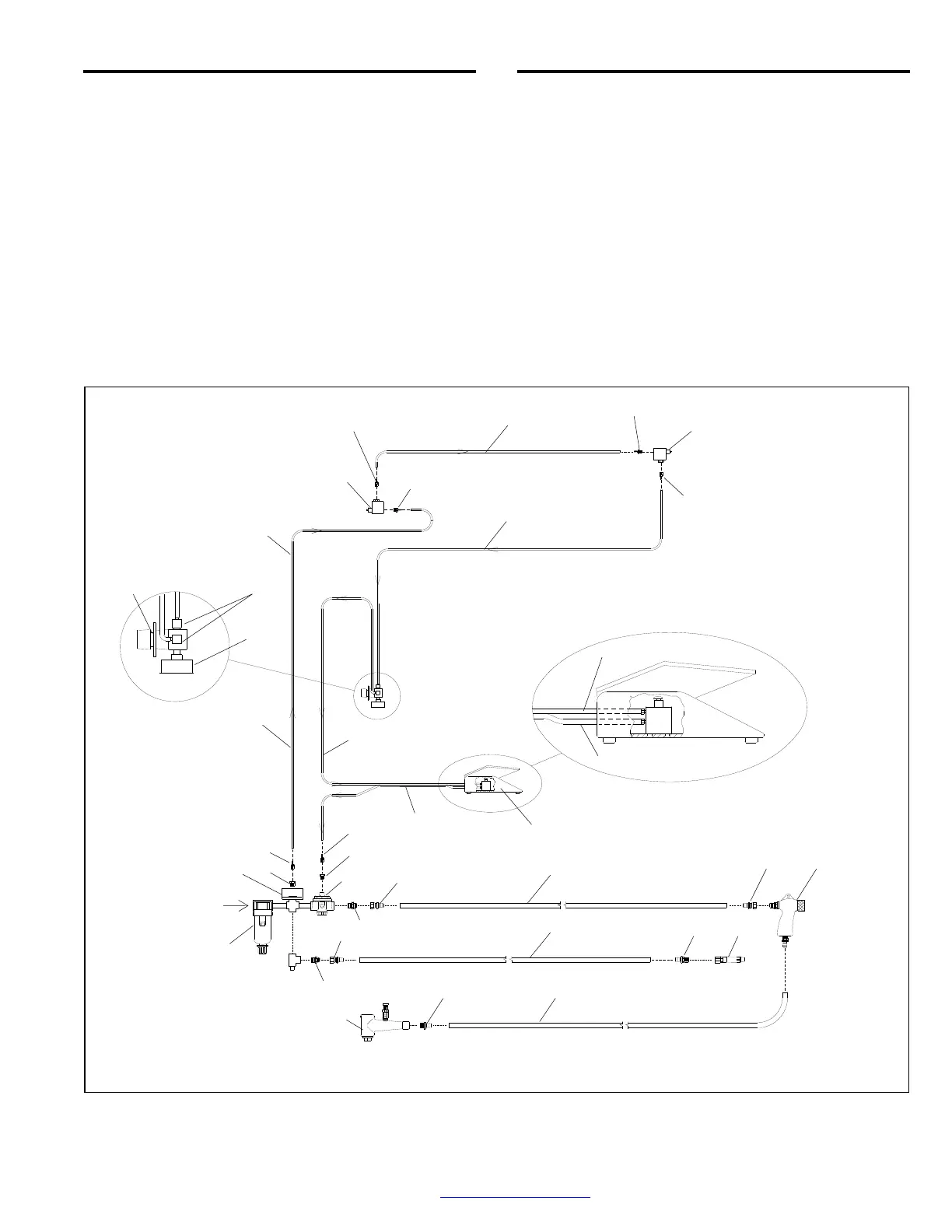

9.9 Cabinet Controls and Plumbing ‒ Figure 40
Item Description Stock No.
1. Valve, 3 way ............................................. 12202
2. Fitting, straight, 1/8" NPT x 1/8" barb ....... 11732
3. Tubing, 1/8" urethane, per foot,
specify ft required ................................... 12475
4. Tubing, twin urethane, per foot,
specify ft required ................................... 19577
5. Foot pedal assembly,
less tubing ............................................. 20483
with tubing, 14 feet item 4 ..................... 20195
6. Fitting, 1/8" NPT elbow x 1/8" barb ........... 11733
7. Bushing 1/2" x 1/8" NPT ........................... 11350
8. Bushing 1/4" x 1/8" NPT ........................... 02010
9. Bracket, mounting .................................... 19231
10. Filter, 1/2" air ............................................ 01308
11. Adaptor, 1/2" NPT x 1/2" flare .................. 11351
12. Hose end, 1/2" barb x 1/2" female swivel .. 15002
13. Hose end, 1/2" barb x 3/8" male NPT ...... 06369
14. Blow-off nozzle ......................................... 13116
15. Air hose, 1/2", specify ft required ............. 12472
16. Gun assembly, BNP No. 5 ....................... 12302
17. Hose, clear urethane, 10 ft is standard
Length, specify ft required ...................... 12476
18. Regulator, 1/2" pilot operated ................... 11345
19. Regulator, 1/8" pilot .................................. 12715
20. Gauge, 1/8" cbm pressure ....................... 01908
21. Metering valve assembly, BNP ................ 12417
Figure 40
2 (inlet)
1
2
1
3
3
19
20
4
5
16
17
14
15
15
8
11
12
12
9
7
13
Unregulated Air
Regulated Air
To "IN" on valve
To "OUT" on valve
2 (outlet)
3
2 (inlet)
2 (outlet)
2
6
21
10
18
12
13
Compressed-Air Inlet
11
To Next Page
