55 SUCTION BLAST CABINET Page 34
© 2019 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com Manual No. 23350, Rev G, 02/19

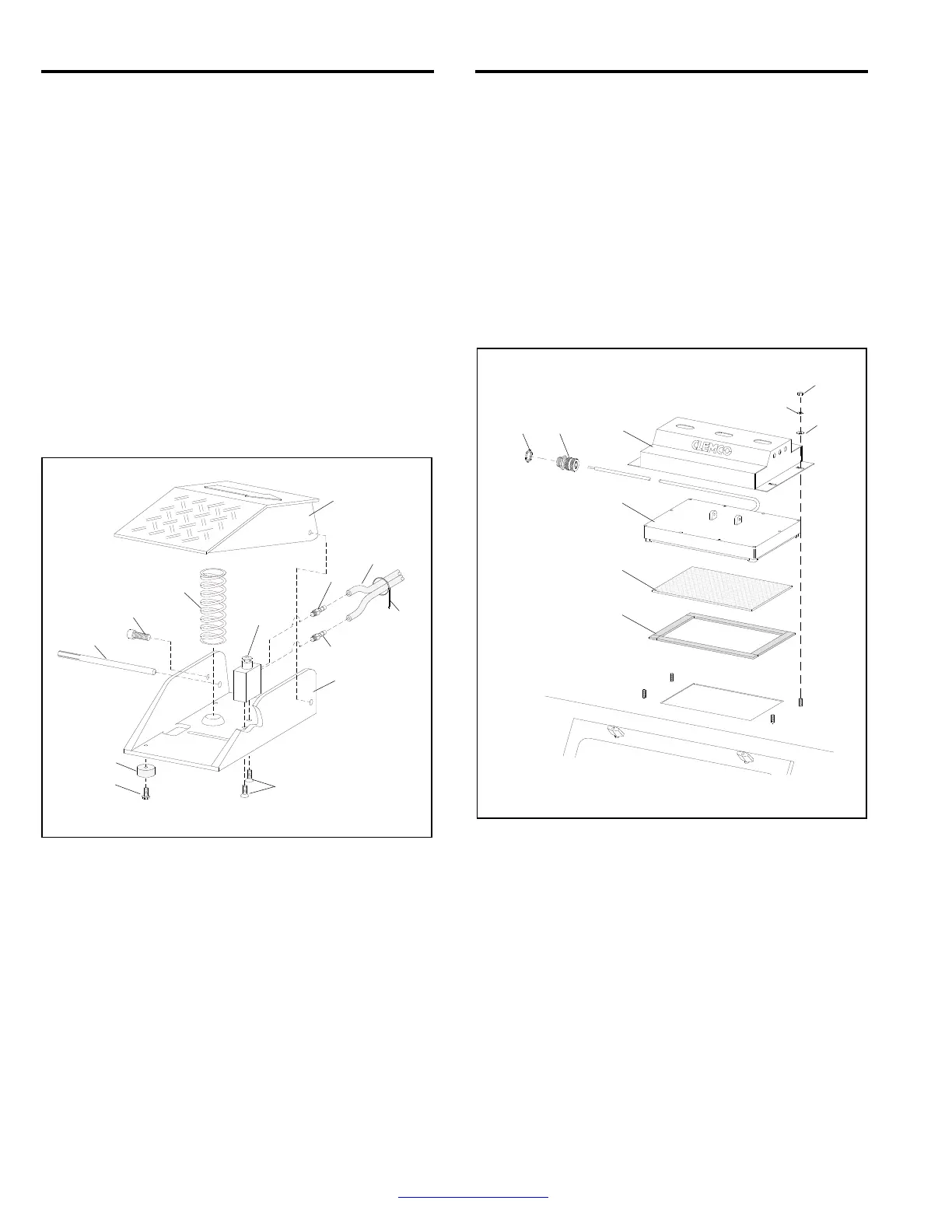

9.7 Foot Pedal Assembly ‒ Figure 38
Item Description Stock No.
(-) Foot pedal assembly,
less tubing, includes items 1 thru 9 ....... 20483
with tubing, 14 feet Item 10 ................... 20195
1. Foot pedal casting set, top and base ....... 28379
2. Valve, 10-32, 3 way n/c ............................ 20026
3. Drive pin, grooved .................................... 20109
4. Screw, sh 1/4 NF x 3/4" ............................ 03086
5. Screw, 10-32 x 1/2" fh .............................. 19571
6. Adaptor, 10-32 thread x 1/8 barb ............. 11731
7. Spring, 1-1/4" x 3-1/2" .............................. 20121
8. Screw, 8-32 x 3/8 thread cutting ............. 11389
9. Bumper, rubber (feet) ............................... 21522
10. Tubing, 1/8" ID twin, per foot,
14 ft standard length, specify ft req’d .... 19577
11. Tie, nylon wire .......................................... 12139
Figure 38
9.8 LED Light Assembly – Figure 39
Item Description Stock No.
1. Cover, LED light mount .......................... 29712
2. LED light module, 50w ........................... 29711
3. Diffuser lens ........................................... 29713
4. Gasket, 5/16" x 1", 3 ft required ............. 00190
5. Strain relief connector ............................ 11631
6. Nut, 1/2" conduit .................................... 12713
7. Nut, 1/4-20 hex ...................................... 03111
8. Washer, 1/4 lock .................................... 03117
9. Washer, 1/4 flat ...................................... 03116
Figure 39
8
2
3
4
5 6
7
9
1
2
7
3
9
4
5
8
10
6
6
11
1
1
