Clemco ZERO BNP 55 User Manual

BNP
®
55 SUCTION BLAST CABINET Page 33
© 2019 CLEMCO INDUSTRIES CORP.  www.clemcoindustries.com  Manual No. 23350, Rev G, 02/19

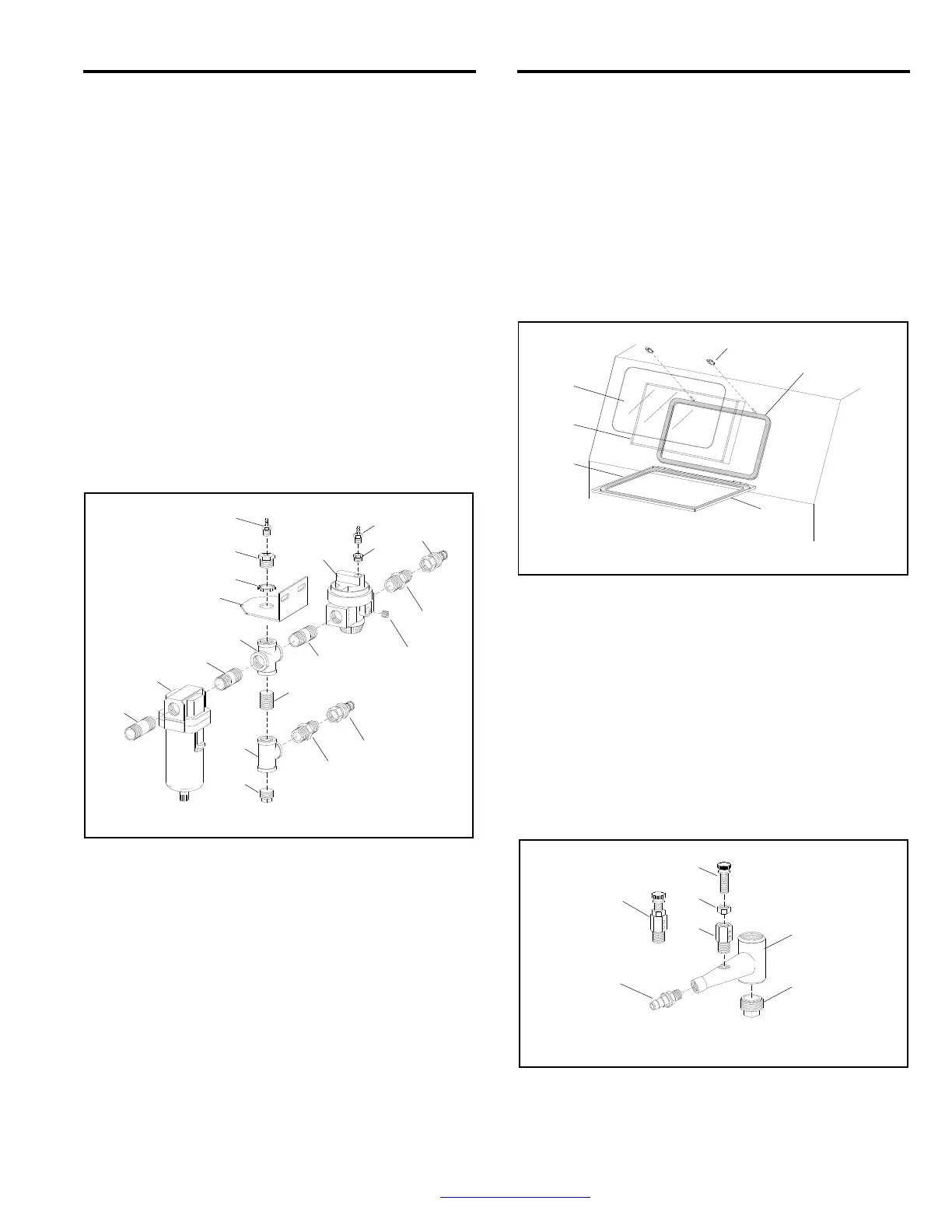

9.4 Inlet-Air Regulator Assembly ‒ Figure 35
Item Description Stock No.
(-) BNP Suction Regulator Assembly
Includes all items shown ....................... 12763
1. Filter, 1/2" manual drain air ....................... 01308
2. Regulator, 1/2" pilot operated pressure ..... 11345
3. Bracket, 1/2" regulator assembly .............. 19231
4. Nipple, 1/2" x 2 ......................................... 01734
5. Cross, 1/2" NPT ........................................ 10254
6. Lock nut, 1/2" ............................................ 12713
7. Bushing, 1/2" NPT x 1/8" .......................... 11350
8. Adaptor, 1/2" NPT x 1/2" flare .................. 11351
9. Fitting, straight, 1/8" NPT x 1/8" barb ....... 11732
10. Bushing, 1/4" NPT x 1/8" brass ................ 02010
11. Hose end, 1/2" barb x 1/2" female swivel ... 15002
12. Tee, 1/2" NPT ........................................... 01787
13. Nipple, 1/2" x close ................................... 01733
14. Plug 1/2" NPT ........................................... 01759
15. Nipple, 1/2" x 3 ......................................... 01735
16. Screw, 1/2-NC x 1/2 set ............................ 03471
Figure 35
9.5 View-Window Assembly ‒ Figure 36
Item Description Stock No.
1. Window glass, 12.5" x 19.5" laminated .... 12212
2. Gasket, 5/16" x 3/4", applied to cabinet
per foot, 6-feet required ......................... 00189
3. Gasket, 5/32" x 3/4", applied to window
Frame, per foot, 6 ft required ................ 00192
4. Cover lens, pkg. of 5 ................................ 06190
5. Nut, plastic, window frame ....................... 23035
6. Window frame, quick change ................... 22826
Figure 36
9.6 Metering Valve, BNP ‒ Figure 37
Item Description Stock No.
(-) Metering valve assembly, BNP ................ 12417
1. Metering stem assembly (items 2, 3, & 4) .. 23889
2. Stem, metering adjusting .......................... 23097
3. Screw, adjusting ....................................... 23098
4. Nut, adjusting stem lock ........................... 23099
5. Body, metering valve ................................ 11532
6. Fitting, hose, 3/8" NPT x 1/2" barb ........... 06369
7. Plug, metering valve ................................. 12011
Figure 37
4
2
3
1
5
6
2
3
1
4
5
6
7
1
16
13
4
9
6
5
15
8
11
8
12
14
3
4
7
11
10
9
2
