9.3 BNP
®

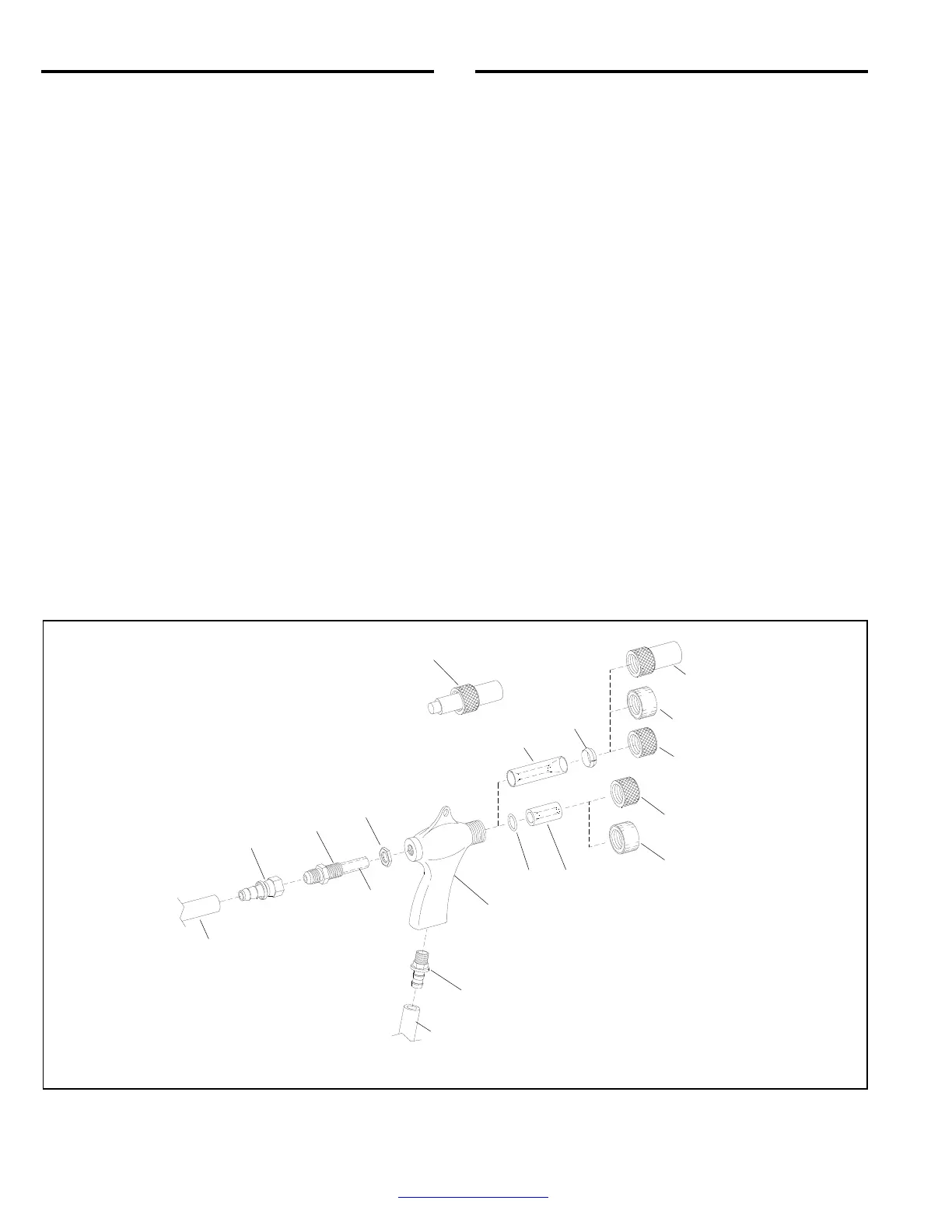

Gun and Hose Assembly ‒ Figure 34
Item Description Stock No.
(-) BNP Gun assemblies less nozzle, includes
items 1 (brass) through 7
No. 4 Gun .............................................. 12301
No. 5 Gun .............................................. 12302
No. 6 Gun .............................................. 12303
No. 7 Gun .............................................. 12304
No. 8 Gun .............................................. 12305
1. Nut, nozzle holding
Standard, knurled brass ........................ 11914
Urethane covered .................................. 11574
2. O-ring ........................................................ 08975
3. Gun body .................................................. 11802
4. Lock nut, air jet ......................................... 11913
5. Rubber sleeve .......................................... 12097
6. Air jet assembly, includes item 5
No. 4 ...................................................... 12342
No. 5 ...................................................... 12343
No. 6 ...................................................... 12344
No. 7 ...................................................... 12345
No. 8 ...................................................... 12346
7. Fitting, hose, 3/8" NPT x 1/2" barb ........... 06369
8. Hose end, 1/2" barb x 1/2" fem. swivel .... 15002
9. Nozzle, ceramic
No. 5, green tip ...................................... 11930
No. 6, blue tip ......................................... 11931
No. 7, red tip ........................................... 11932
Nozzle, tungsten carbide
No. 5 ....................................................... 13118
No. 7 ....................................................... 12882
No. 8 ....................................................... 11942
Nozzle, boron carbide
No. 5 ....................................................... 11935
No. 6 ....................................................... 11936
No. 7 ....................................................... 11937
No. 8 ....................................................... 12894
10. Hose, 1/2" air, specify ft required .............. 12472
11. Hose, media, clear, 10 ft is standard
Length, specify ft required ...................... 12476
12. Wide-spray nozzle
Tungsten carbide, No. 6 ............................ 11947
Boron carbide
No. 6 ....................................................... 11934
No. 8 ....................................................... 11944
13. Wide-spray nozzle nut
Knurled brass ......................................... 11916
Urethane covered .................................. 12906
14. Wide-spray retaining ring .......................... 12038
15. Wide-spray nozzle guard .......................... 12295
16. Adjusting tool, correctly positions air jet .... 19041
Figure 34
7
1
9
2
3
4
5
6
8
10 - Green air hose
1
13
16
14
13
12
11 - Clear media hose
15
To Next Page
