55 SUCTION BLAST CABINET Page 31
© 2019 CLEMCO INDUSTRIES CORP. www.clemcoindustries.com Manual No. 23350, Rev G, 02/19
9.2 Cabinet Replacement Parts ‒ Figure 33
Item Description Stock No.
1. Gasket, 5/16" x 1", adhesive-backed,
per foot, specify feet required
Door, 8 ft per door .................................. 00187
Light assembly, 7 ft required .................. 00187
Air-inlet damper, 3 ft required ................ 00187
2. Gasket, 5/32" x 3/4", 3 ft required ............. 00192
3. Door assembly, left ................................... 20068
4. Door assembly, right ................................. 20069
5. Grate for 55 ............................................... 11813
6. Latch kit, door ............................................ 20064
7. Glove set formative
Band-clamp attachment ......................... 11215
Quick-Change (clampless attachment) ... 28820
8. Glove, left hand only
Band-clamp attachment ......................... 12710
Quick-Change (clampless attachment) ... 28638
9. Glove, right hand only
Band-clamp attachment ......................... 12711
Quick-Change (clampless attachment) ... 28639
10. Clamp, glove ............................................. 11576
11. Filter-regulator inlet piping assembly
Refer to Figure 35 for parts .................... 12763
12. Clamp, flex hose
for 4" hose ............................................. 11577
for 5" hose ............................................. 11578
13. Grommet, 3/4" ID for media and air hose .. 11798
14. Adaptor pipe universal, flex hose
4" for 300 cfm ........................................ 23295
5" for 600 cfm ........................................ 23296
15. Gasket, flex hose adaptor pipe
4" for 300 cfm ........................................ 23258
5" for 600 cfm ........................................ 23259
16. Bracket, door interlock actuator ................ 19152
17. Over-travel stop, door interlock ................ 20004
18. Detent sleeve, door interlock .................... 15042
19. Air valve, 3 way, door interlock ................. 12202
20. Regulator, 1/8" NPT pilot .......................... 12715
21. Gauge, 1/8" cbm pressure ........................ 01908
22. Fitting, 1/8" NPT elbow x 1/8" barb .......... 11733
23. Foot pedal assembly,
less tubing ............................................. 20483
with tubing, 14 feet ................................ 20195
24. Cord with plug, 120 volt ............................ 11669
25. Damper, air-inlet .......................................
23156
26. Hose, light-lined flex, specify feet required
4" ID for 300 cfm, 7 ft required .............. 12466
5" ID for 600 cfm, 7 ft required .............. 12467

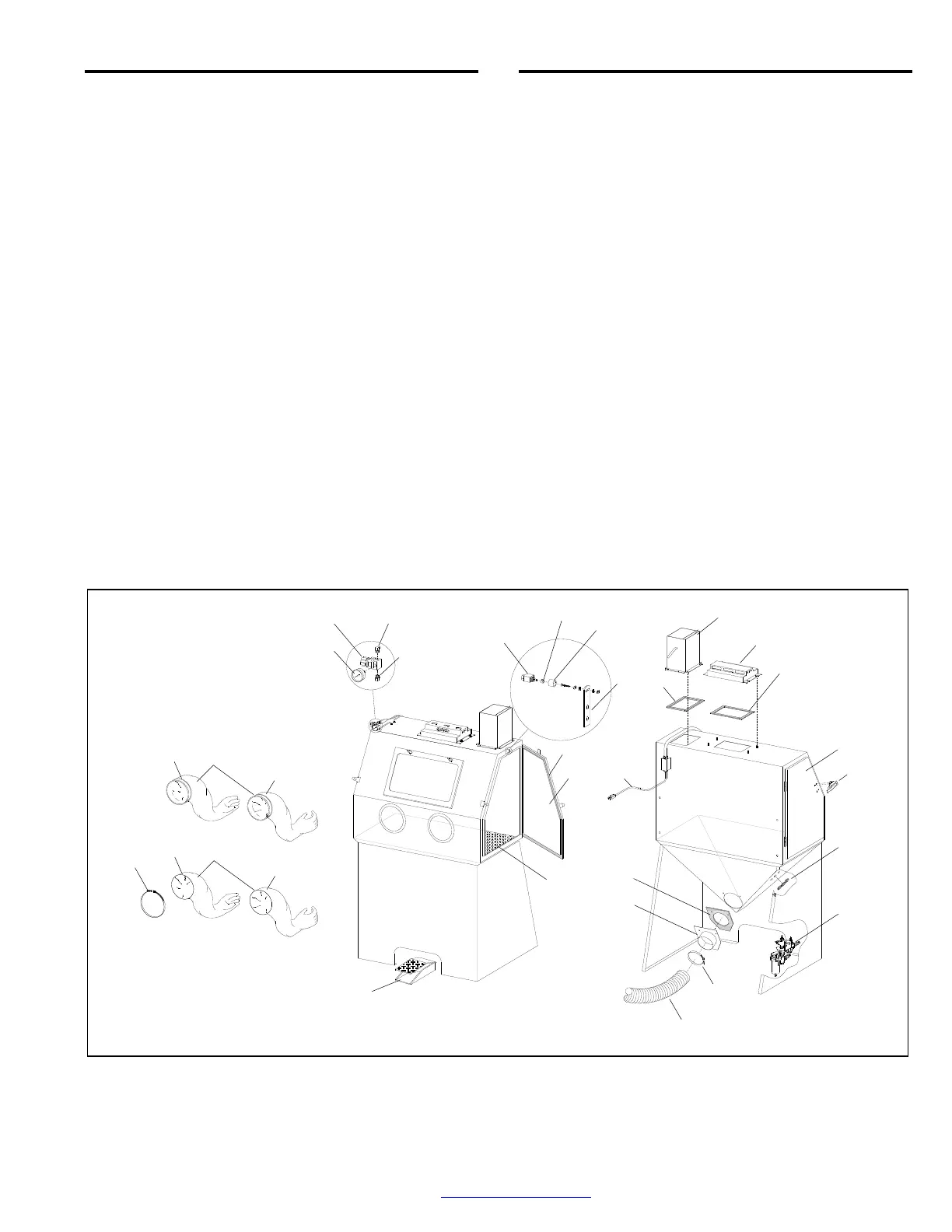

Figure 33
26
1
4
16
2
17
10
5
23
15
3
20
6
9
8
7
12
14
18
19
21
11
25
13
24
22
22
1
*
* Light assembly shown for
reference. Refer to Figure 39
for replacement parts.
Some items removed or rotated for clarity.
9
8
7
To Next Page
