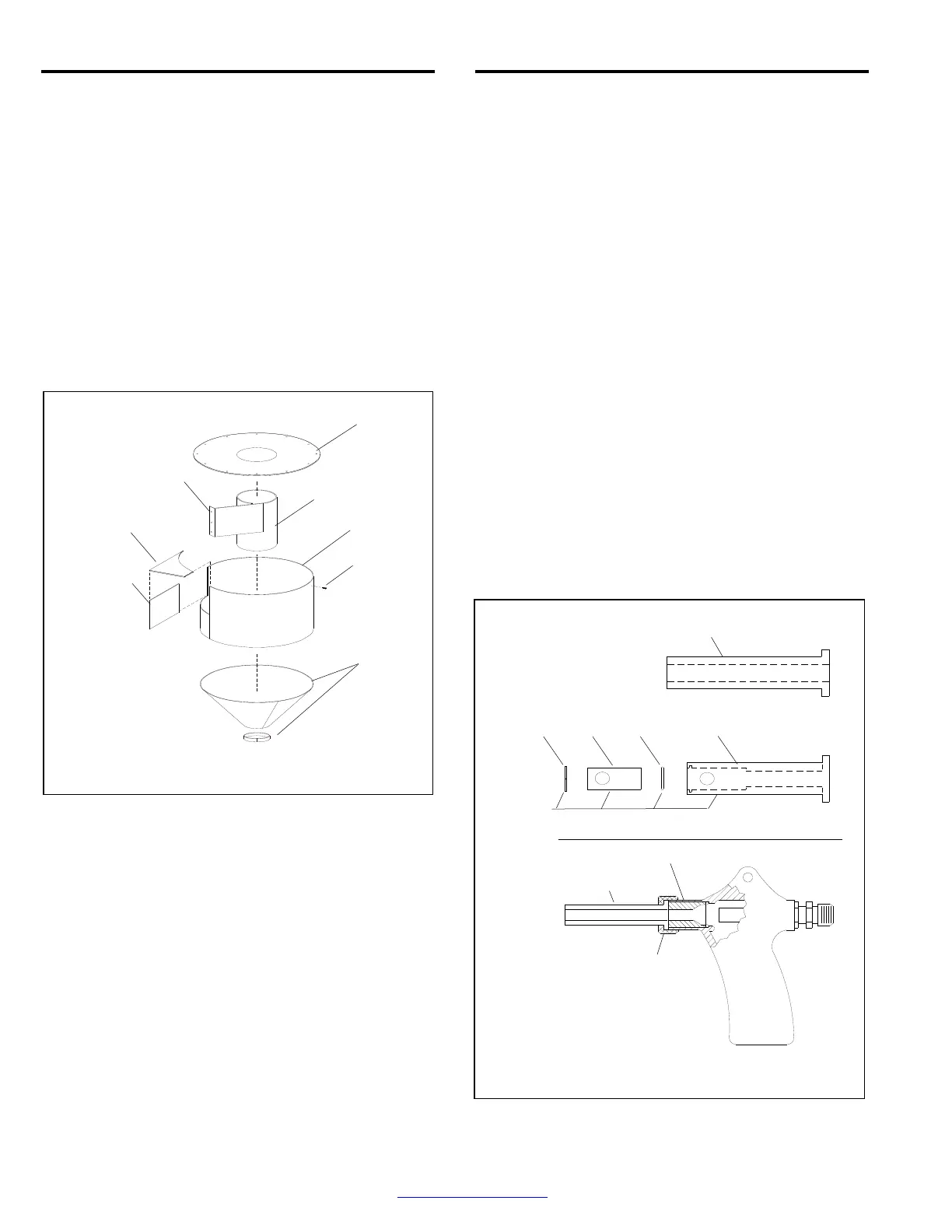

Reclaimer Liners, 600 cfm only ‒ Figure 31
For modular-style reclaimers sold on or after 09/2018.
Item Description Stock No.
(-) Rubber liner sets, 600 cfm ....................... 29541
1. Top liner ................................................... 29535
2. Baffle, lined ................................................ 29531
3. Inner cylinder ............................................ 29530
4. Wall liner, reclaimer body ......................... 29533
5. Inlet-side liner ............................................ 29532
6. Cone liner, ................................................ 29707
7. Inlet-top liner ............................................. 29536
8. Screw,
10-16 x 3/4"
self-drill/tap .............. 12722
Figure 31
Extension Nozzles ‒ Figure 32
Item Description Stock No.
1. 3" Straight extension nozzle
No. 5, 5/16" orifice ................................. 11921
No. 6, 3/8" orifice ................................... 11922
No. 7, 7/16" orifice ................................. 11923
2. 6" Straight extension nozzle
No. 5, 5/16" orifice ................................. 11927
No. 6, 3/8" orifice ................................... 11928
No. 7, 7/16" orifice ................................. 11929
3. 9" Straight extension nozzle
No. 5, 5/16" orifice ................................. 11924
No. 6, 3/8" orifice ................................... 11925
No. 7, 7/16" orifice ................................. 11926
4. Side-angle extension nozzle assemblies
with No. 5 orifice, includes 5, 6, 7, and 8
4″ long assembly ................................... 21311
6" long assembly ................................... 12374
9" long assembly ................................... 12373
5. Casing, side-angle extension nozzle
4″ long casing ........................................ 11943
6" long casing ........................................ 11940
9" long casing ........................................ 11939
6. Tip, side-angle extension .......................... 12173
7. Snap ring, side-angle extension ............... 12040
8. O-ring, side-angle extension ..................... 08977
Figure 32
Standard Nozzle
5
1, 2, 3
NOTE: Leave the standard nozzle
in the gun, slip the nozzle-holding
nut over the extension nozzle, and
tighten onto the gun body.
6
87
Extension Nozzle
1
3
4
5
8
7
6
2
4
Nozzle Holding Nut
Straight extension nozzle
Side-angle extension nozzle
