12

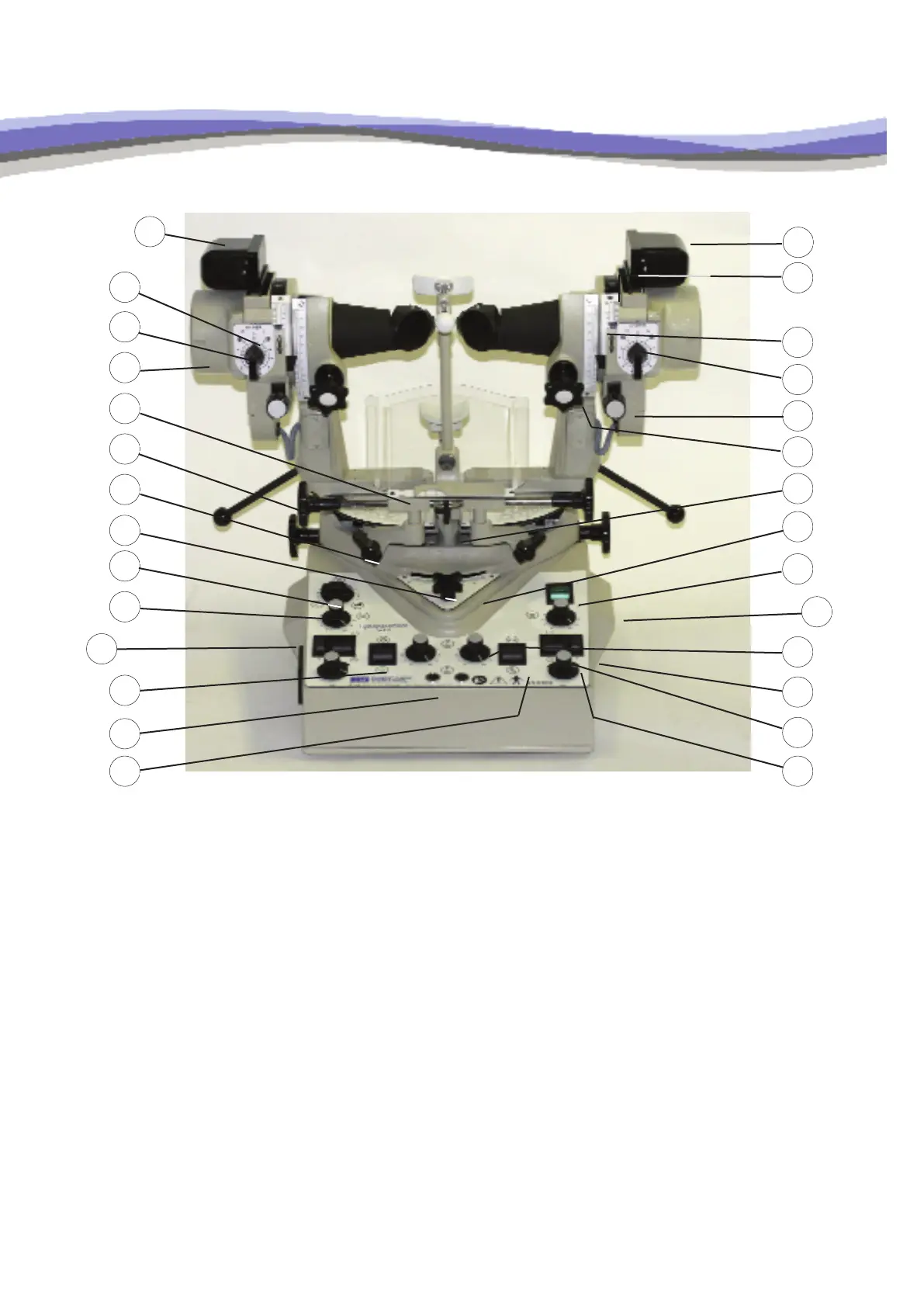

Mechanical
101. Carrying handles (2)
102. Interpupillary distance selection controls (2)
103. Interpupillary distance scale
104. Chinrest height control
105. Chinrest
106. Forehead rest
107. Breathsheild
108. Handles for adjustment of horizontal angle
between tubes (2)
109. Horizontal deviation scales (left & right) (2)
110. Vertical deviation controls (Hyper) (2)
111. Vertical deviation scales (Hyper) (2)
112. Torsional deviation scales (Cyclo) (2)
113. Torsional deviation controls (Cyclo) (2)
114. Elevation and depression scales (2)
115. Elevation and depression controls (2)
116. Slide carriers (2)
117. Slide ejectors (2)
118. Auxiliary lens holders (2)
118a.Eyepiece lens (removable ) (2)
119. Horizontal vergence scale
120. Horizontal vergence controls (2)
121. Tube locking controls (horizontal) (2)
122. Central lock
123. Lever for swivelling opal screen from optical
pathway (2)
Electrical
124. On/Off switch/Indicator lamp
125. Mains supply input plug and socket
126. Voltage selector
127. Lamphousing
128. Access to bulb (screw) (2)
129. Hand flashing switches (2)
130. Dimming rheostats (2)
131. Selector switch
Automatic Flashing
132. Rapid/variable switch
133. Simultaneous/alternating switch
134. Light and dark phases controls (2)
Haidinger’s brushes
135. On/Off switches (Haidinger’s Brushes)
136. Reversing switches (2)
137. Speed controls (2)
138. Haidinger brush assembly (2)
139. Blue filters (removable) (2)
140. Iris diaphragms - controls (2)
141. Fuses
142. Halogen after-image lamp
143. Slide illumination lamp
116
112
113
115
124
122
103
134
135
136
111
110
127
119
120
130
131
121
132
129
133 137
114
104
101
101
142
144
Synoptophore Model 2001
