Clement Clarke 2001 - Page 17

14

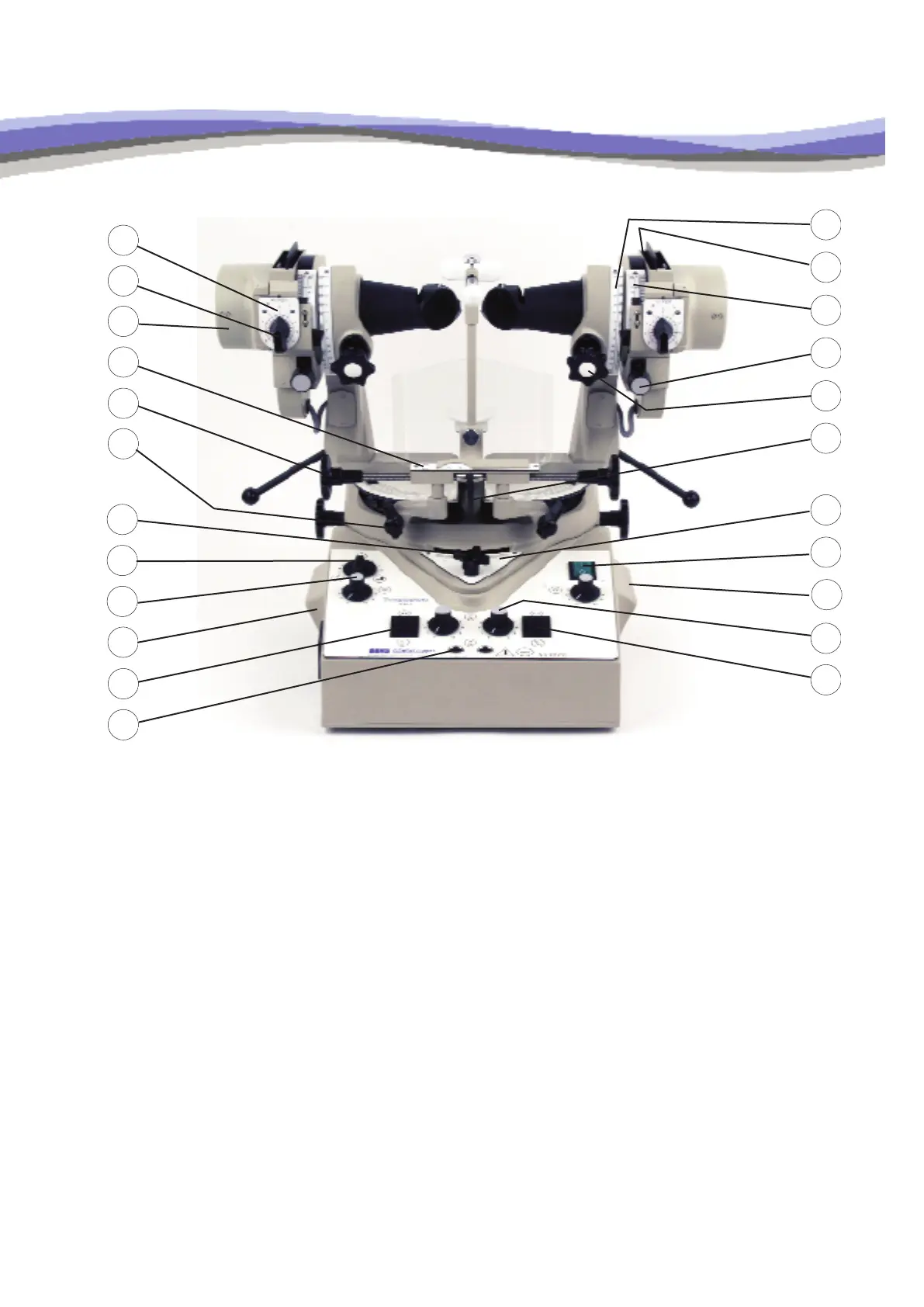

Mechanical
101 Carrying handles (2)
102 Interpupillary distance selection controls (2)
103 Interpupillary distance scale
104 Chinrest height control
105 Chinrest
106 Forehead rest
107 Breathshield
108 Handles for adjustment of horizontal angle
between tubes (2)
109 Left hand scale plate (1)
109a Right hand scale plate (1)
110 Vertical deviation controls (2)
111 Vertical deviation scales (2)
112 Torsional deviation scales (2)
113 Torsional deviation controls (2)
114 Elevation and depression scales (2)
115 Elevation and depression controls (2)
116 Slide carriers (2)
117 Slide ejectors (2)
118 Auxiliary lens holders (2)
118a Eyepiece lens (removable) (2)
119 Horizontal vergence scale
120 Horizontal vergence controls (2)
121 Co-ordinating arm lock (2)
122 Central lock
123 Lever for swivelling opal screen from optical
pathway (2)
Electrical
124 On/Off switch/Indicator lamp
125 Mains supply input plug and socket
126 Voltage selector
127 Lamphousing
128 Access to bulb (screw) (2)
129 Hand flashing switches (2)
130 Dimming rheostats (2)
131 Selector switch
Automatic Flashing
132 Rapid/variable switch
133 Simultaneous/alternating switch
134 Light and dark phases controls (2)
141 Fuses
142 Halogen after-image lamp
143 Slide illumination lamp
114
116
112
113
115
124
122
103
134
133
111
110
127
1
19
120
130
131
121
104
132
129
101
101
Synoptophore Model 2002
