Clenergy SPH50 - Inverter Overview and Connections; SPH15, SPH20, SPH30 Models

Page 5 of 26
Clenergy SPH Installation and Operation Manual
1. SPH inverter overview and connections
1.1. SPH15, SPH20 & SPH30

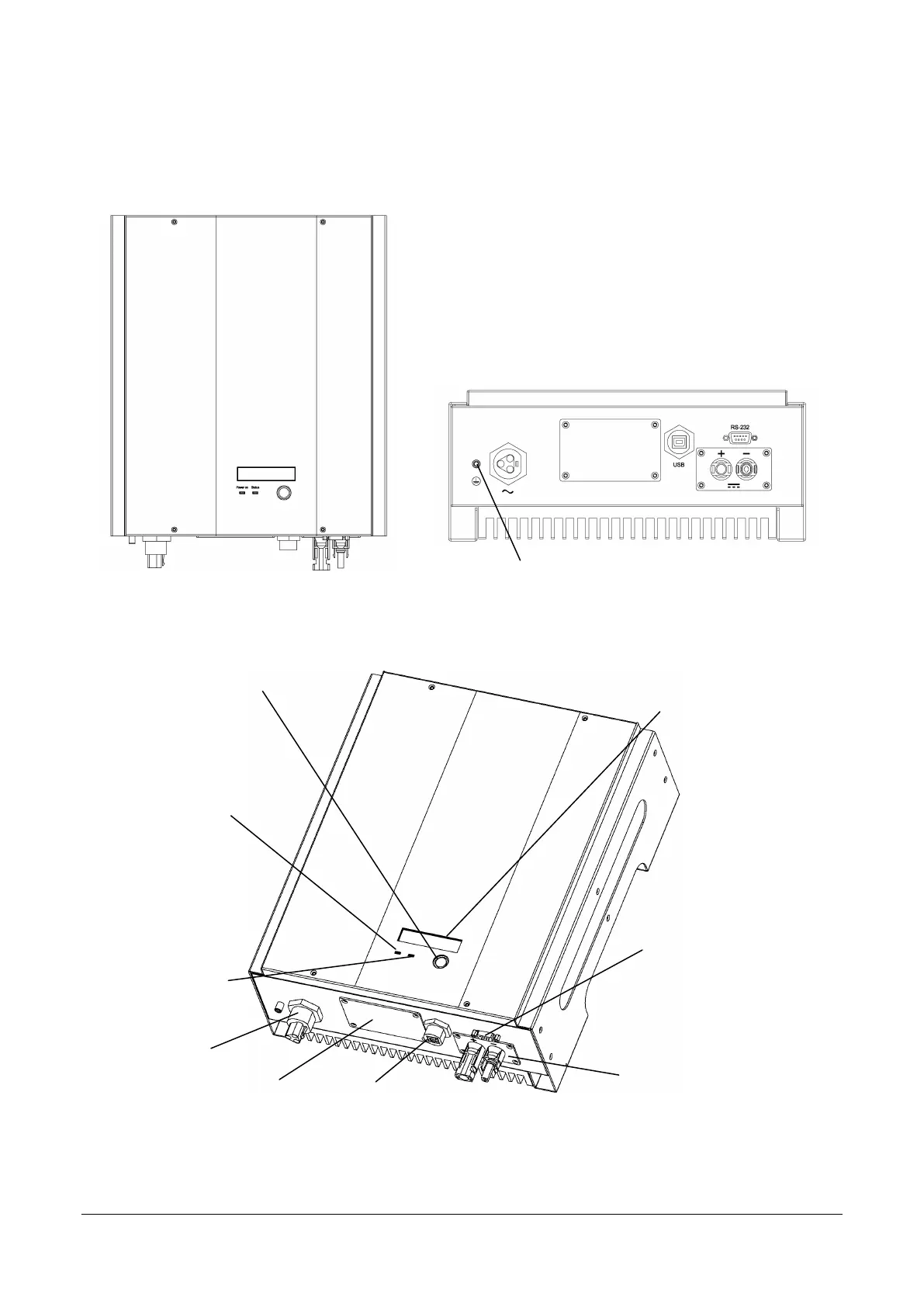

Front view Bottom view
External protective earth (PE)-terminal
Display and connections
LCD Display: Showing the
inverter status
RS232
Solar panel input
(DC)
Display information switch
Optional communication
slot: SNMP and RS485
USB
AC connector
Operation LED,
Blue, Working Mode
Operation LED, Red,
fault status
