Disassembly
2 - 10 Removing the Optical (CD/DVD) Device
2.Disassembly
Removing the Optical (CD/DVD) Device

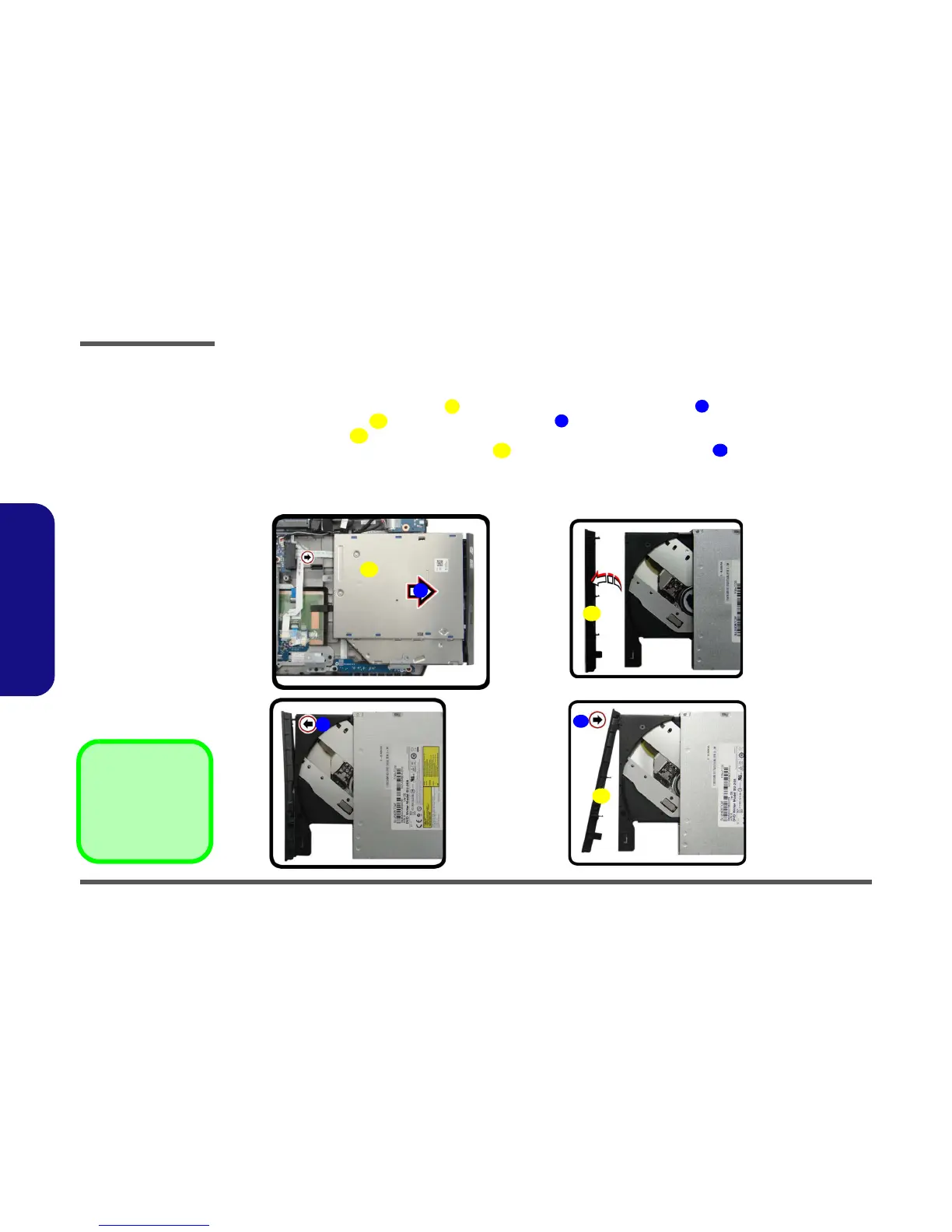

Figure 6
Optical Device
Removal
a. Push the optical device
out off the computer.
b. Pry the bezel off the opti-
cal device.
c. Separate the bezel and
optical device
d. Install the front bezel.
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 6).
2. Carefully push out the optical device out of the bay in the direction of the arrow (
Figure 6a
).
3. Carefully pry the bezel off the optical device at point (
Figure 6b
).
4. Separate the bezel and the optical device (
Figure 6d).
5. Reverse the process to attach the front bezel with the new optical device at point (
Figure 6d).
6. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up). Replace the bottom cover and tighten the screws.
7. Restart the computer to allow it to automatically detect the new device.
6
1
2
4
3
4
4
5

1. Optical Device
4. Bezel Cover
2
1
a.
d.
4
b.
c.
3
4
5
