Disassembly
Removing the CCD 2 - 15
2.Disassembly

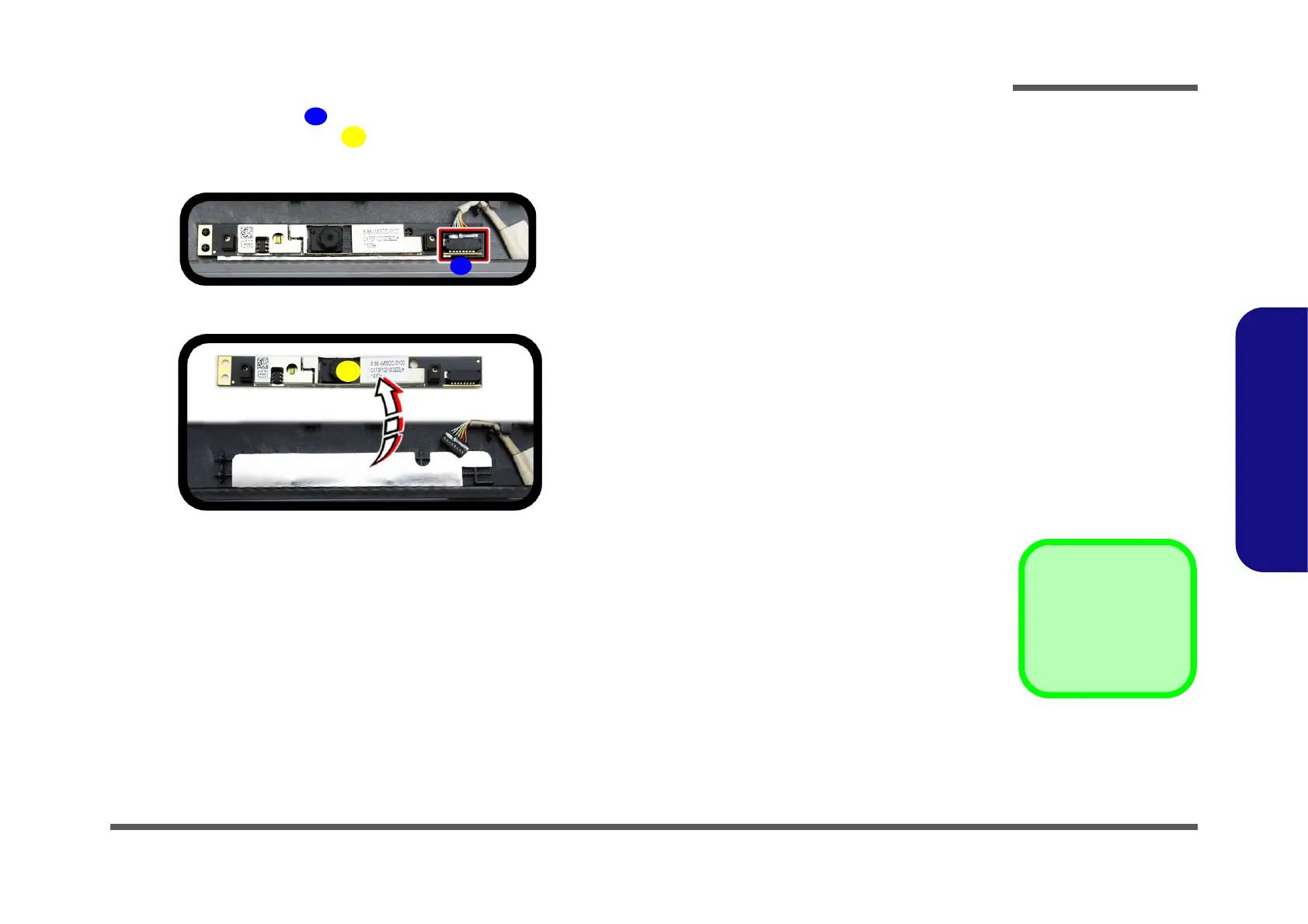

5. Disconnect the cable (Figure 10c).
6. Remove the CCD module (Figure 10d).
7. Reverse the process to install a new CCD module.
10
11
d.
c.
11
10

11. CCD Module
Figure 10
CCD Removal
(cont’d)
c. Disconnect the cable.
d. Remove the CCD mod-
ule.
