Clevo NJ70CU - Removing the 4 G Module

Disassembly
2 - 14 Removing the 4G Module
2.Disassembly
Removing the 4G Module
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 10) and battery (page 2 - 5).
2. The module will be visible at point on the mainboard (Figure 7a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 7b)
4. The module (Figure 7c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace all the screws and bottom cover).
1
2
3
4
5
b.
c.
a.
2
3
5
1
5
4


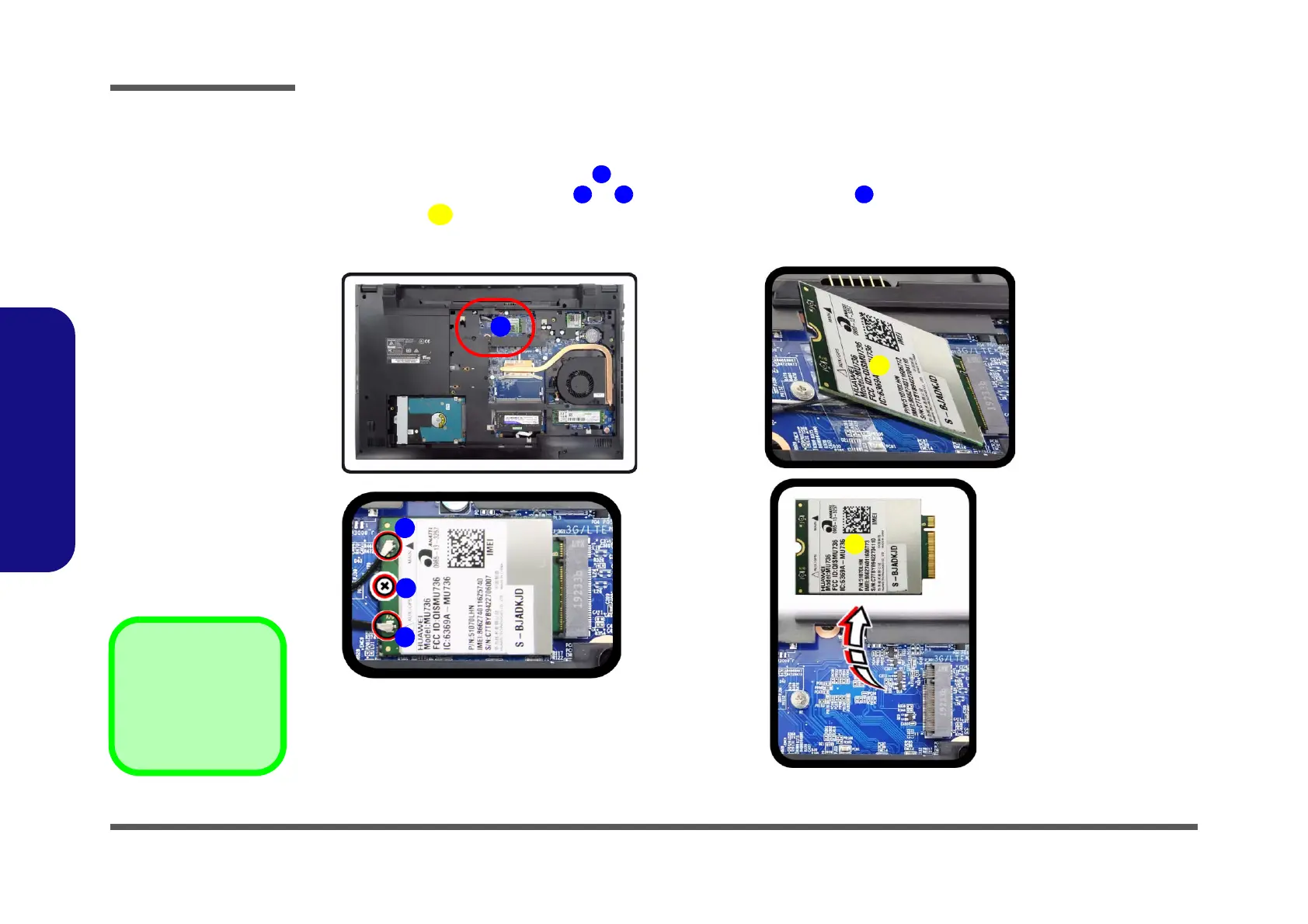

5.4G Module
•1 Screw
Figure 8
4G Module Removal
a. Locate the WLAN.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up and lift it out of
the computer.
