Clevo NJ70PU - Mainboard Overview - Top (Connectors)

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)

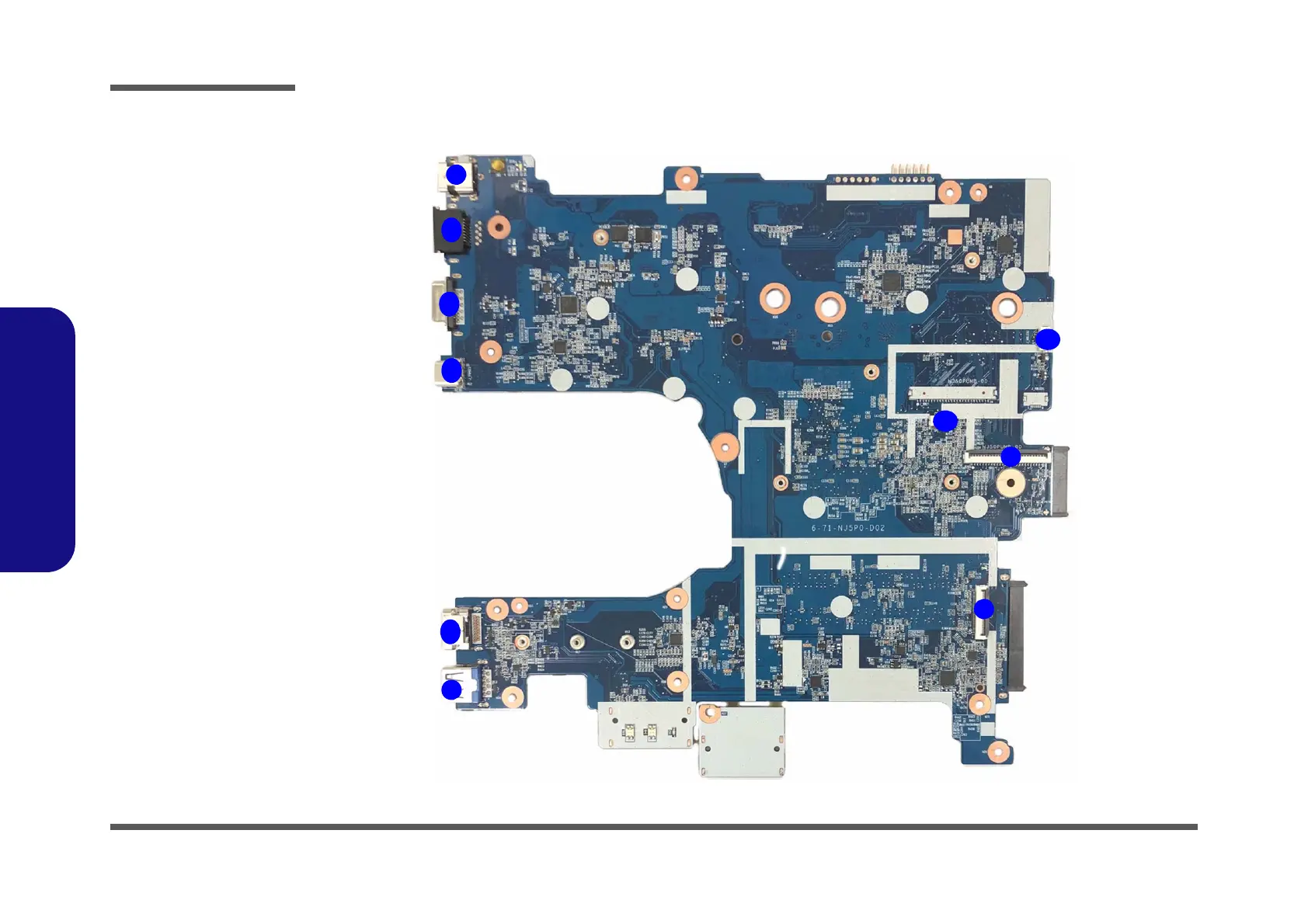

Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. RJ-45 LAN Jack
3. External Monitor
Port
4. USB 3.2 Gen 2
Type-C Port with
Power Delivery
5. HDMI-Out Port
6. USB 3.2 Gen 1
Type-A Port
Or
(Factory Option)
Powered USB 3.2
Gen 1 Type-A Port
7. Audio Board to
Board Connector
8. Keyboard Cable
Connector
9. LED Keyboard
Connector
10. Touchpad
Connector
9
6
7
8
1
2
3
5
4
10
