Removing the Battery
1. Turn off the computer, turn it over.
2. Slide the latch in the direction of the arrow (Figure 1a
).
3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a
).
4. Turn the battery in the direction of the arrow and lift it out (Figure 1b
).
5. Insert a new battery by aligning the battery to the pins & (Figure 1c
).
6. Turn the battery in the direction of the arrow (Figure 1d
).
7. Slide the latch in the direction of the arrow to lock it in place (Figure 1e
).
1
2
6
3
4
6
3
5
6
6
3
7
8


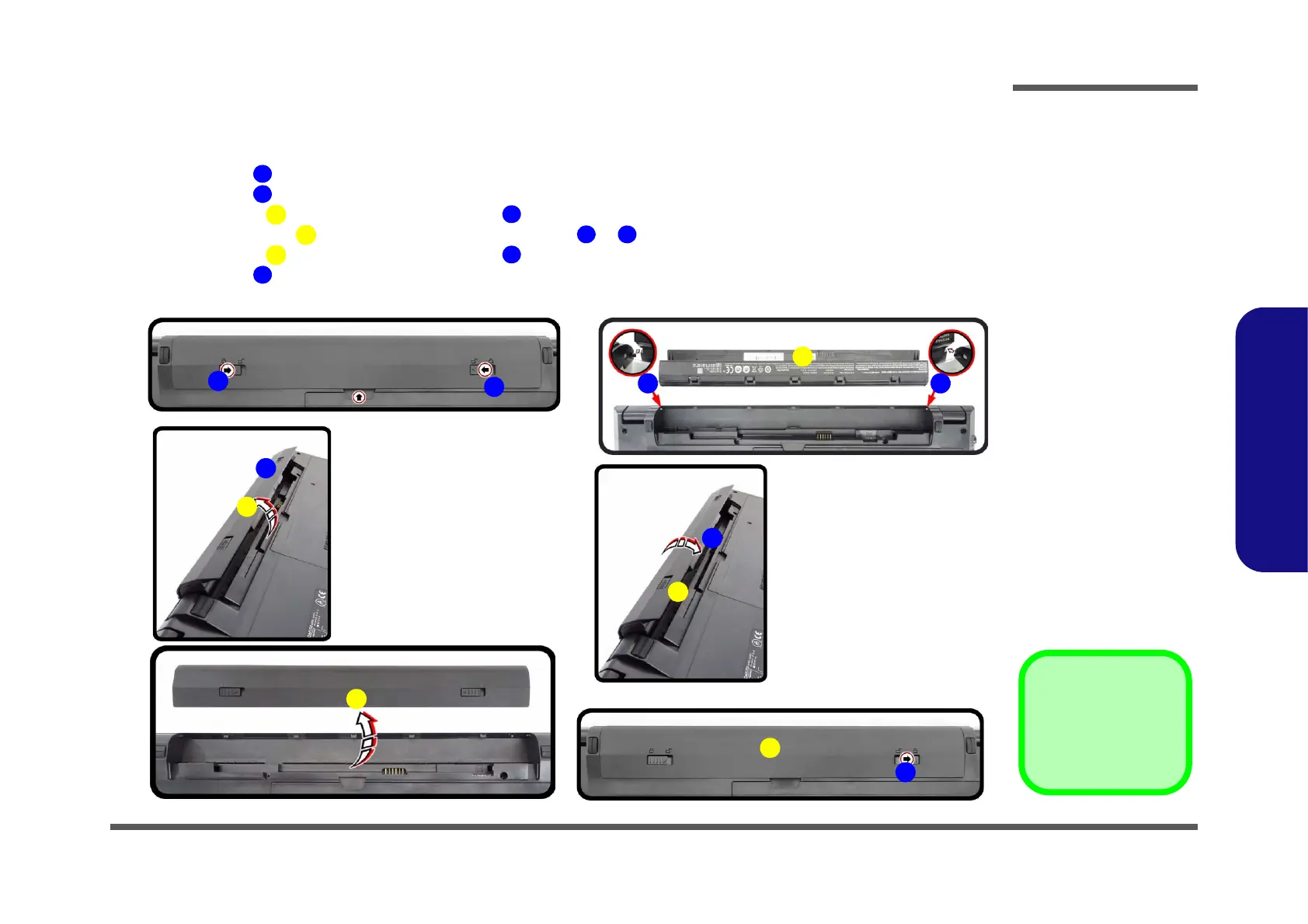

3. Battery
Figure 1
Battery Removal
a. Slide the latch and hold it
in place.
b. Turn the battery in the di-
rection of the arrow and
lift the battery out.
c.Insert a new battery by
aligning it to the pins.
d. Turn the battery in the di-
rection of the arrow.
e. Lock the latch in place.
