Clevo NJ70PU - Page 52

Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams

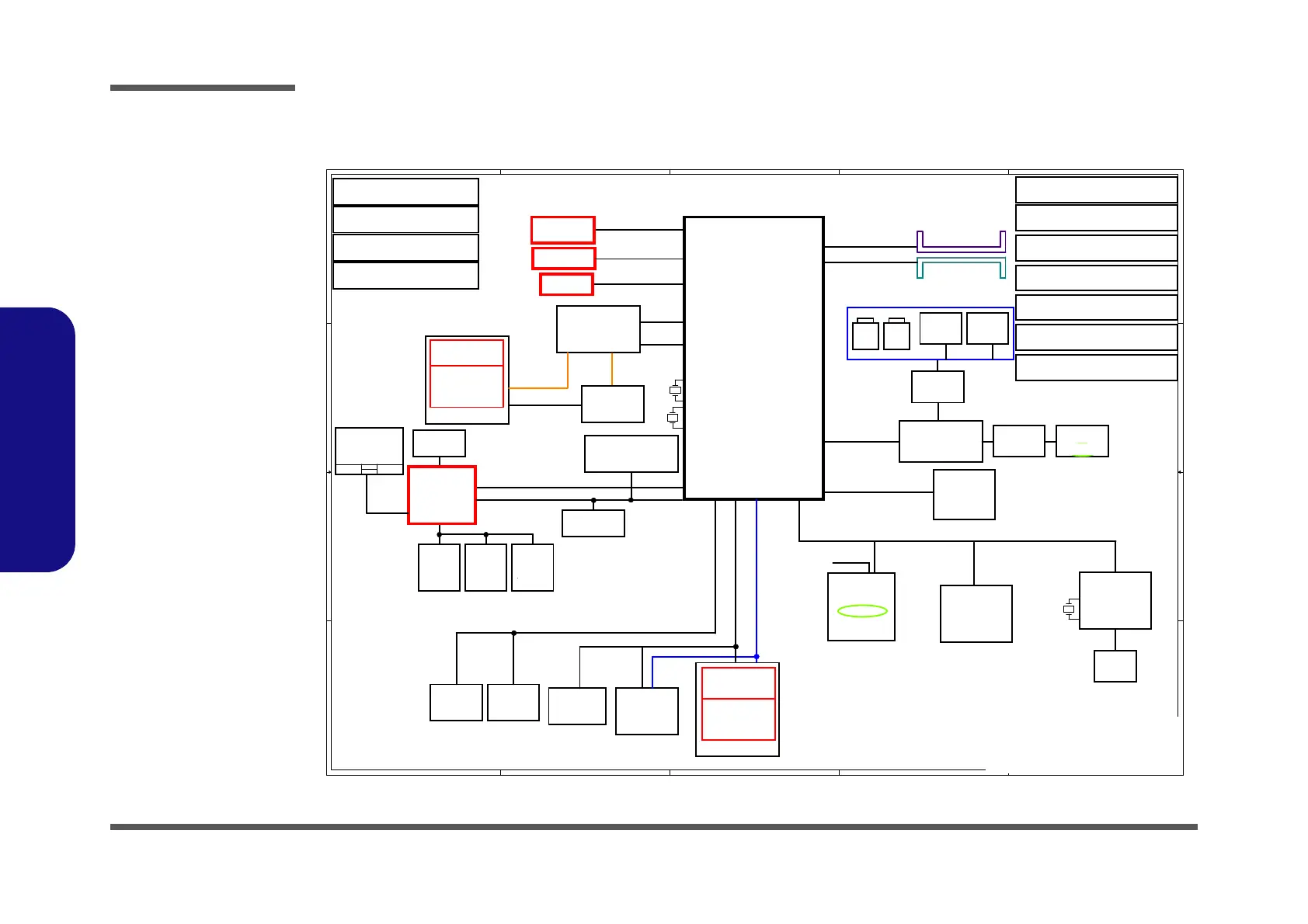

System Block Diagram
Sheet 1 of 48
System Block
Diagram
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CARD READER
SO-DIMM_B_0
PCIE
480 Mbps
M.2
DDR4
2.5"~9" (4 VIA)
SHEET 15
SHEET 16
100 MHz
SO-DIMM_A_0
0.1"~13
SYSTEM SMBUS
LAN
3"~7" (2 VIA)
SHEET 26
USB2.0
SHEET 29
SATA III 6.0Gb/s
3200 MHz
I219V
SHEET 18
SHEET 31
CCD + Mic
SHEET 26
RJ-45
SATA HDD
SHEET 25
25 MHz
USB3.0
DDR4
Power: 1.2V
SHEET 28
<6.5" (3 VIA)
<10" (3 VIA)
SATA ODD
SHEET 25
M.2 3G/LTE
BT+WLAN
(USB2_4)
HDMI
(USB3_4)
(USB2_7)
USB2.0
USB2.0
USB3.0 PORT1
TYPE A
SHEET 25
USB2.0
USB3.0
USB3.1 Gen 2
TYPE C
SHEET 23
USB CHARGE
TCP0
DDIB
eDP PANEL
SHEET 17
DDIA
(SATA_1)
SHEET 30
HP
OUT
MIC
IN
AUDIO BOARD
USB2.0
24 MHz
USB 2.0
Azalia Codec
CM6542
SHEET 30
INT SPKER-R
INT SPKER-L
FOR 15"/17"
(PCIE_6)
(USB2_10)
(PCIE_5)
3"~12" (3 VIA)
3"~9" (3 VIA)
SHEET 43.44
USB3.0
IT6516
DP TO VGA
SHEET 19
(SATA_0)
USB3.0 Gen 1
SHEET 2~14
32.768KHz
38.4 MHz
NJ50PU Alder Lake P System Block Diagram
(USB2_1)
(USB3_3)
(USB3_1)
(USB2_3)
OZ711
SHEET 27
SPI
ESPI
SMART
BATTERY
25 MHz
SHEET 31 SHEET 42
SHEET 20
128pins LQFP
EC SMBUS
ITE 5570
INT. K/B
EC
SHEET 4
14*14*1.6mm
THERMAL
SENSOR
SHEET 32
SMART
FAN
BIOS+ME 16M
SHEET 8
<12" (5 VIA)
<6.5"
TOUCH PAD
SENTELIC
SHEET 31
u2+2
Optional
SHEET 21
TPM2.0 SLB9670VQ
AC-IN
SHEET 22
PS8802
USB3.2
SHEET 23
IT8851
SA8404
SA8908
(PCIE4_0~3)
PCIE Gen 4
SHEET 24
M.3 SSD
(PCIE9)
TCP1
6-71-NJ5P8-D01
NJ50/70 AUDIO BOARD
SHEET 43.44
NJ50 CLICK BOARD
SHEET 45
6-71-NJ5P2-D01
NJ50/70 CADDY BAY
SHEET 46
6-71-NJ5PN-D01
6-71-NJ7P6-D01
NJ70 LID SW BOARD
SHEET 47
Alder Lake U
25x50mm
1744 Balls
15W
PROCESSOR
(USB2_6)
(USB2_5)
(USB2_2)
(USB3_2)
SHEET 33
2.5V, VCCST, VCC1P8_CPU
SHEET 34
DD_ON#, SUSB, 5V, 5VS, 1.8V
3.3V, 3.3VS, 3.3VA
VDD3,VDD5
SHEET 35
VDDQ,1.8VA
SHEET 36
VCCORE
SHEET 38
VCCGT
SHEET 39
VCCIN_AUX
SHEET 40
Title
Size Document Number Rev
Date: Sheet
of
D02
[01] BLOCK DIAGRAM
A3
148Monday, July 25, 2022
