Clevo NS50PU - Retimer 1;2

3.3VS USE IF NOT SUPPORT TBT WAKE UP
>60 mil
>60 mil
Maxmum Required Power 3.3V@1A
Maxmum Required Power 3.3V@150mA
Maxmum Required Power 0.9V@1A
Short
DEFAULT
VCC3V3_PD
2A
EM5290
PCBfootprint:
TDFN14-2X3MM-A
2nd source G5016
1A 0.5A
1A
1A
V3.3DX_RT_TCP0
1A
VCC0P9_LC_TCP0
VCC0P9_LVR_TCP0
VCC0P9_SVR_TCP0_PHASE
PD_EC_EN
3.3V_R
3.3V_CT
LS_EN
VCC3V3_SVR_TCP0
VCC3V3_SX_TCP0V3.3DX_RT_TCP0
3.3V
VCC3P3_LC_TCP0
VCC3P3A_SVR_TCP0VCC0V9_SVR_TCP0
V3.3DX_RT_TCP0
VDD3
VDD3_SYS
VCC3V3_PD
VDD3
3.3VA
3.3V[4,18,19,20,22,27,31,33,36,37,38,39,40]
VCC3V3_PD[30]
3.3VA[4,5,7,8,9,10,11,13,21,22,29,30,34,35,39,40]
VDD3[5,6,8,11,13,18,19,20,22,23,24,25,27,32,33,34,35,36,39,40,41,43]
VCC3V3_SX_TCP0[29]
VCC3P3_LC_TCP0[29]
VDD3_SYS[29]
BB_LS_EN[30]
VA_EC_EN [23,34,35]
SLP_SUS# [11,23,35,39]
Title
Size Document Number R e v
Date: Sheet
of
6-71-NS5P0-D02
D01
[28]TYPE C PORT 0 RETIMER (1 OF
Custom
28 49Thursday, February 10, 2022
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
NS50PU
Title
Size Document Number R e v
Date: Sheet
of
6-71-NS5P0-D02
D01
[28]TYPE C PORT 0 RETIMER (1 OF
Custom
28 49Thursday, February 10, 2022
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
NS50PU
Title
Size Document Number R e v
Date: Sheet
of
6-71-NS5P0-D02
D01
[28]TYPE C PORT 0 RETIMER (1 OF
Custom
28 49Thursday, February 10, 2022
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
NS50PU
FA7601U10
CT2
10
OUT2
8
EN2
5
VBIAS
4
IN2
6
GND
11
EN1
3
CT1
12
OUT1
13
IN1
1
IN1
2
OUT1
14
IN2
7
OUT2
9
GND
15
STUFF
INS22336098
?
U8C
<BMAP_REV>
JHL8040R
6-03-08040-0F0
2ND = 6-03-08040-0F1
F12
VSS_ANA
F11
VSS_ANA
F9
VSS_ANA
F7
VSS_ANA
F2
VSS_ANA
F1
VSS_ANA
D2
VSS_ANA
D12
VSS_ANA
D11
VSS_ANA
D1
VSS_ANA
B12
VSS_ANA
B1
VSS_ANA
G5
VSS
F3
VSS
F5
VSS
G7
VSS_ANA
K12
VSS_ANA
K11
VSS_ANA
K2
VSS_ANA
K1
VSS_ANA
J9
VSS_ANA
H12
VSS_ANA
H11
VSS_ANA
H2
VSS_ANA
H1
VSS_ANA
C195
22u_6.3V_X5R_06

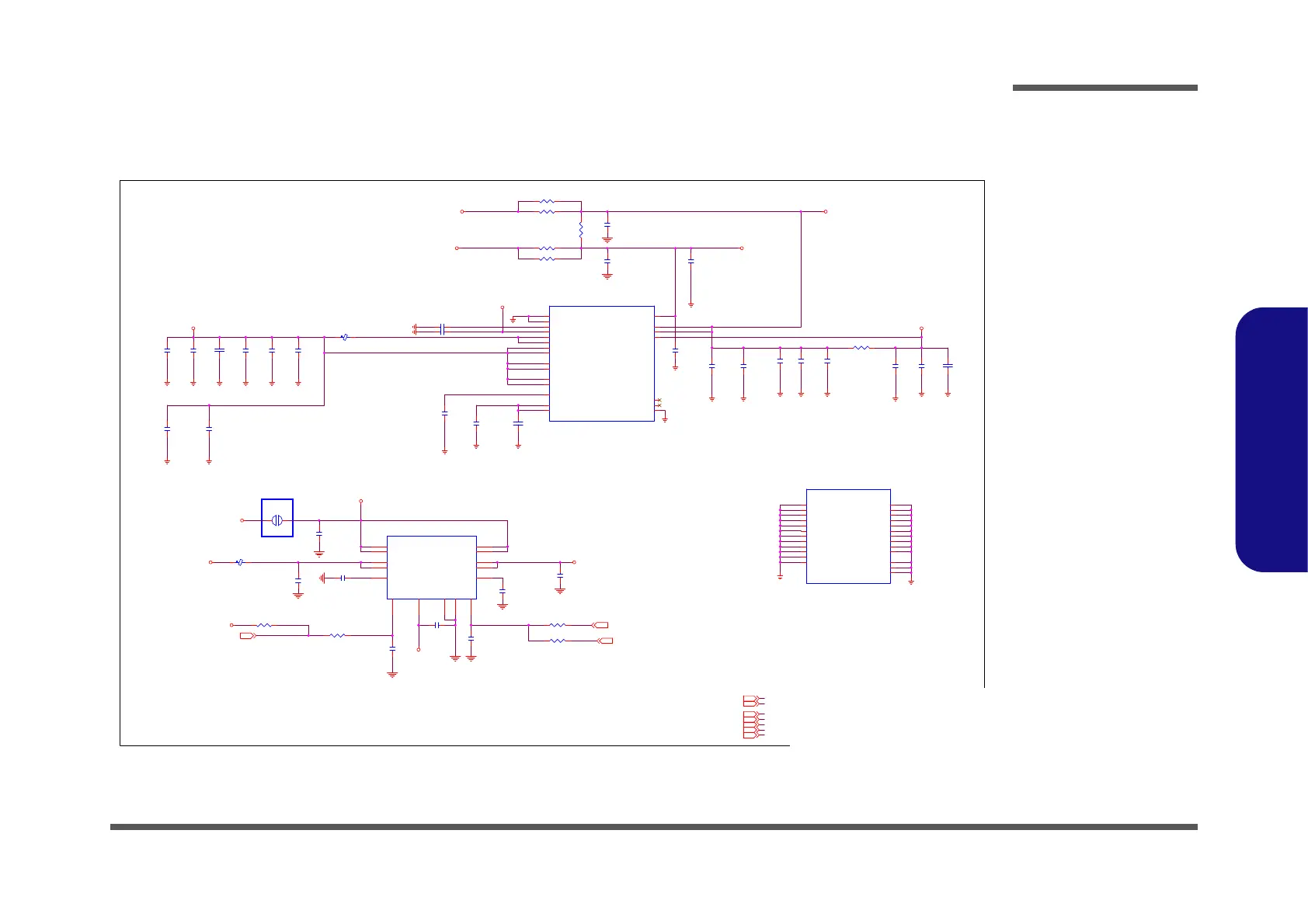

TBT TPS65994 Retimer TYPE-C
L6
SDTM25201T-R68MS
PCB Footprint = sdtm25201t
C374
10u_6.3V_X5R_06
R397 0_04
R396
10K_04
C386 2.2u_6.3V_X5R_04
R592
0_06
C219
0.1u_6.3V_X5R_02
C407
47u_6.3V_X5R_08
R398 10K_04
R556 *0_06
C396
2.2u_6.3V_X5R_04
C227
1u_6.3V_X5R_02
C400
10u_6.3V_X5R_04
STUFF
INS22336843
?
U8D
<BMAP_REV>
JHL8040R
6-03-08040-0F0
2ND = 6-03-08040-0F1
M6
VCC0P9_LVR_SENSE
L6
VCC0P9_LVR
J3
VCC0P9_LC
G9
VCC0P9_SVR_PB_ANA
E9
VCC0P9_SVR_PB_ANA
G3
VCC0P9_SVR
E3
VCC0P9_SVR
G6
VCC0P9_SVR_ANA_2
F6
VCC0P9_SVR_ANA_1
L1
SVR_IND_1
M1
SVR_IND_2
E5
VCC3P3_LC
L2
VCC3P3_ANA
M2
SVR_VSS_1
M3
SVR_VSS_2
J6
NC
J5
NC_J5
L3
NC
J7
VCC3P3A
M5
VCC3P3_SVR
M4
VCC3P3_SVR
E6
VCC3P3_SX
C190
22u_6.3V_X5R_06
C356
22u_6.3V_X5R_06
C383
2.2u_6.3V_X5R_04
C226
*0.1u_6.3V_X5R_02
R590 0_06
C372
2.2u_6.3V_X5R_04
C196
22u_6.3V_X5R_06
TBT TPS65994 Retimer TYPE-C
C371
2.2u_6.3V_X5R_04
C225
*0.1u_6.3V_X5R_02
C215
220p_50V_NPO_04
C189
22u_6.3V_X5R_06
C397
18p_25V_NPO_02
C401
2.2u_6.3V_X5R_04
R591 0_06
C224
0.1u_6.3V_X5R_02
C393
2.2u_6.3V_X5R_04
R574 0_06
C390 2.2u_6.3V_X5R_04
R557 *0_06
R409 *0_04
C220
0.1u_6.3V_X5R_02
C398
2.2u_6.3V_X5R_04
C357
22u_6.3V_X5R_06
C373
18p_25V_NPO_02
C197
2.2u_6.3V_X5R_04
L9 HCB1608KF-800T30
C399
10u_6.3V_X5R_04
C199
2.2u_6.3V_X5R_04
C380
10u_6.3V_X5R_04
C214
220p_50V_NPO_04
PJ16
3mm
1 2
C198
2.2u_6.3V_X5R_04
Sheet 28 of 49
Retimer 1/2
Schematic Diagrams
Retimer 1/2 B - 29
B.Schematic Diagrams
Retimer 1/2
