Disassembly
Removing the M.2 SSD Module 2 - 9
2.Disassembly
Removing the M.2 SSD Module
Note that the SSD (if installed) is beside the HDD bay.
1. Turn off the computer, and turn it over, remove the battery (
page 2 - 5).
2. Remove the screw from the SSD (
Figure 5a).
3. The M.2 SSD module will pop-up (
Figure 5b).
4. Lift the M.2 SSD module up and off the computer (
Figure 5c
).
5. Reverse the process to install a new SSD (make sure that the hexagonal screw is in the correct location
depending upon the size of the module).
2. M.2 SSD Module
•1 Screw

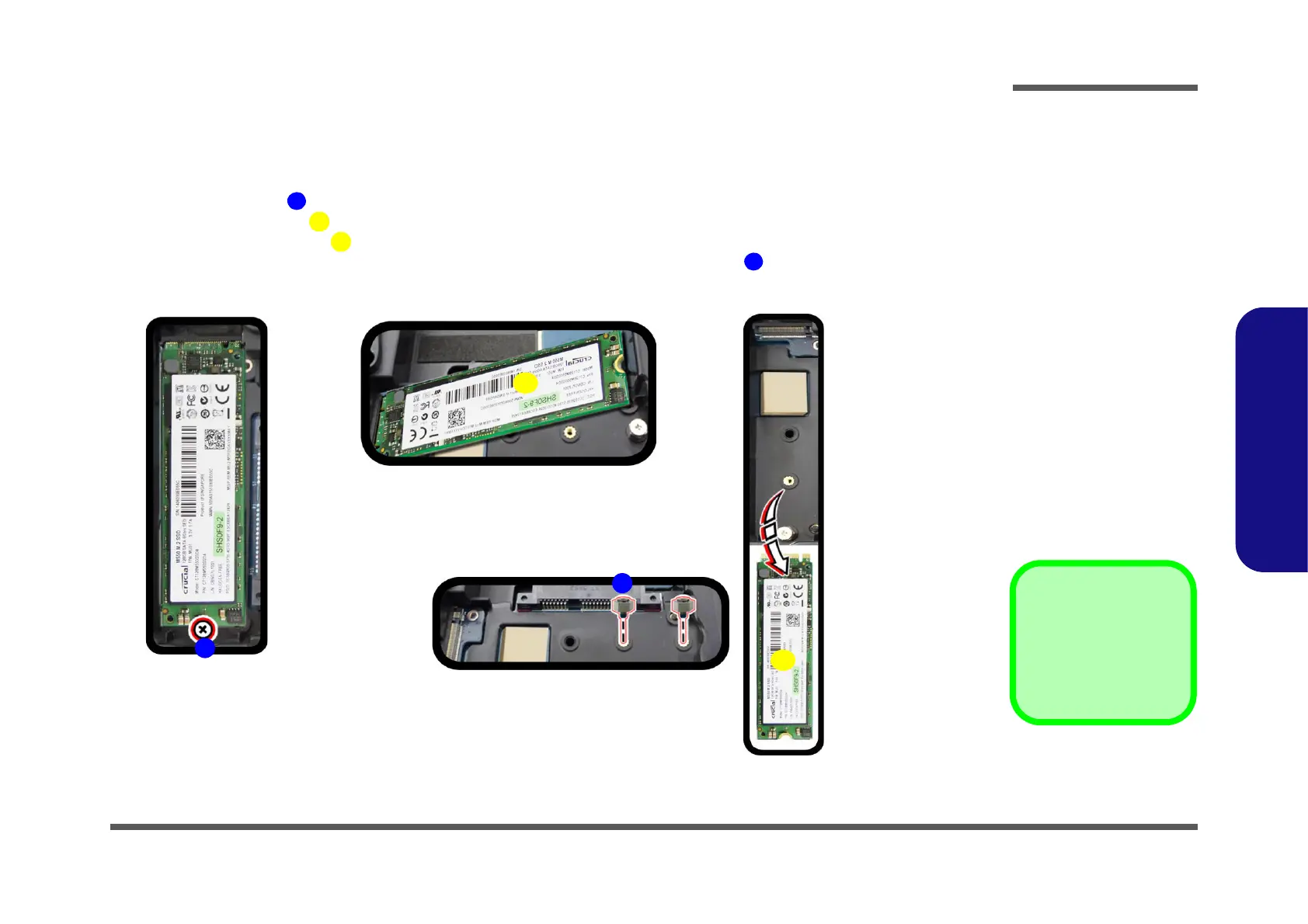

Figure 5
M.2 SSD Module
Removal
a. Remove the screws.
b. The module will pop up.
c. Lift the module out.
1
6
2
6
2
3
a. b.
2
1
2
c.
3
