Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly
Hard Disk Size Note (Foam Rubber Insert)
Note that the hard disks pictured on these pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard disk
drives will be installed.

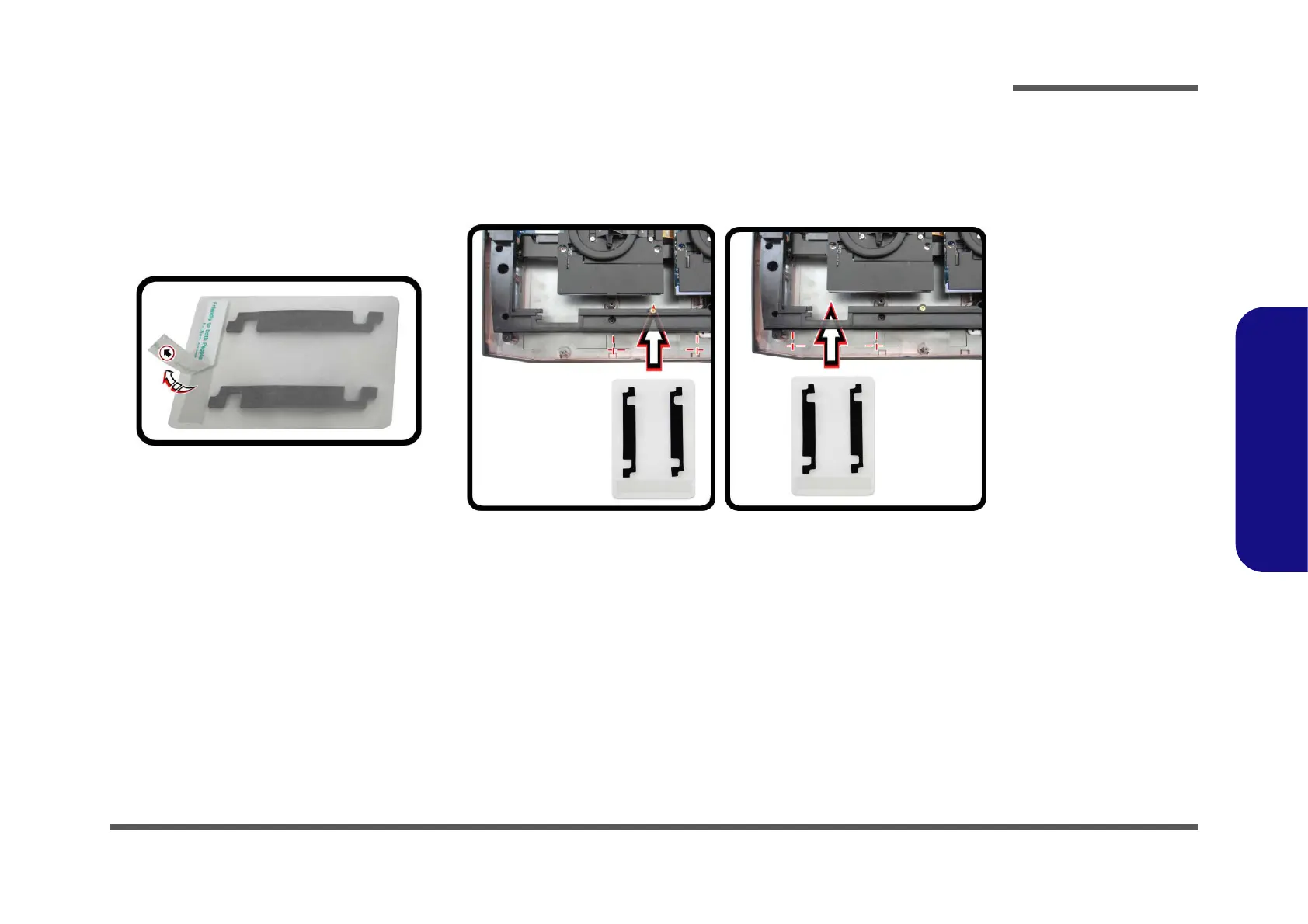

Figure 5
Foam Rubber
Insert for 7mm(H)
HDDs
• If you are replacing a 9.5mm(H)
HDD with a 7mm(H) HDD then
insert the foam rubber insert.
• If you are replacing a 7mm(H) HDD
with a 9.5mm(H) HDD then remove
the foam rubber insert.
HDD-2HDD-1
To Next Page
