Disassembly
Removing the CCD 2 - 17
2.Disassembly
Removing the CCD
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. Run your fingers around the inner frame of the LCD panel at the points as indicated by the arrows - (Figure
12a).
3. Lay the computer down on a flat surface with the top case up forming a 90 degree angle. Push the LCD front
cover upwards before carefully lifting it up.
4. Remove the LCD front cover (Figure 12c).
1
4
5
5
c.
b.
a.
1
2
5
3
4
5


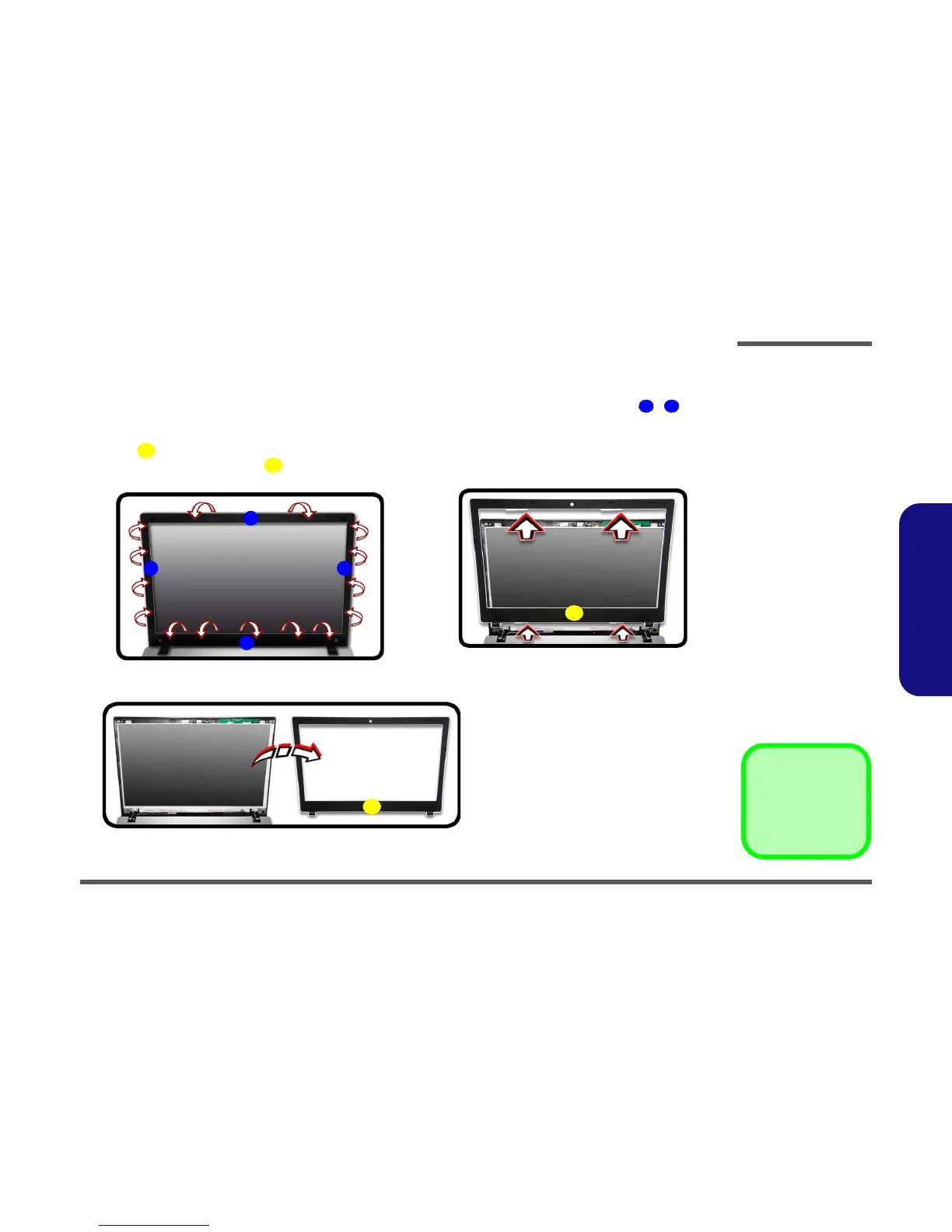

5. LCD Front Cover
Figure 12
CCD Removal
a. Run your fingers around
the inner frame of the
LCD panel at the points
indicated by the arrows.
b. Lay the computer down
on a flat surface with the
top case up forming a 90
degree angle. Push the
LCD front panel upwards
before carefully lifting it
up.
c. Remove the LCD front
cover.
